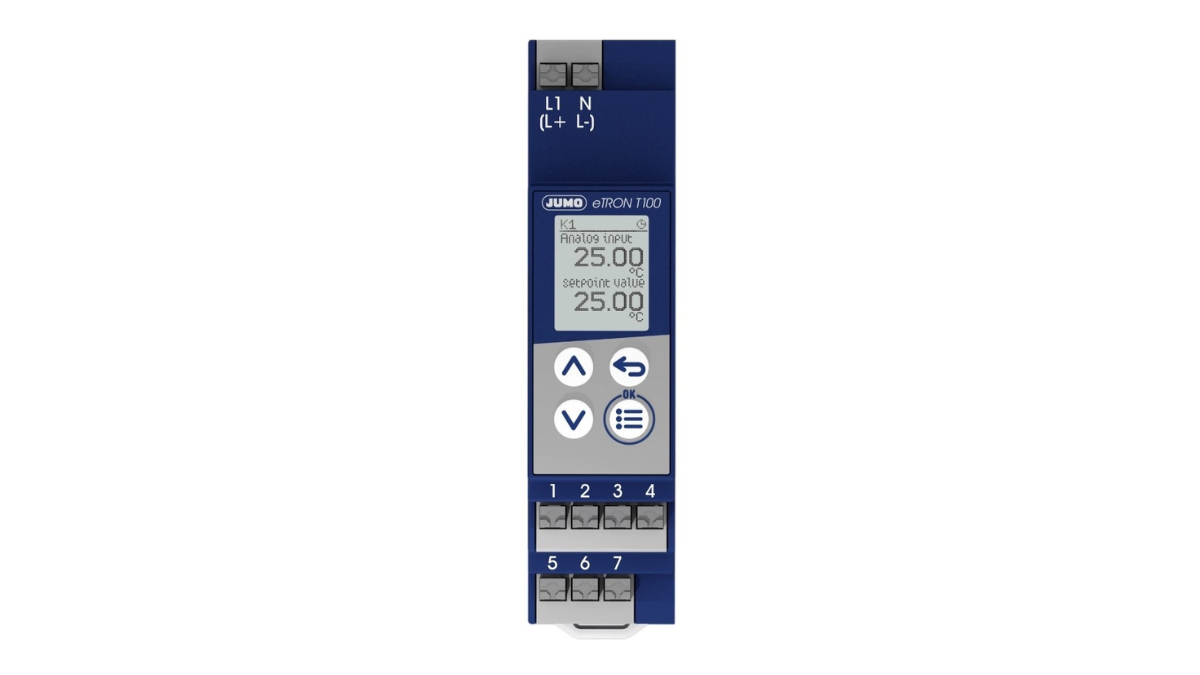

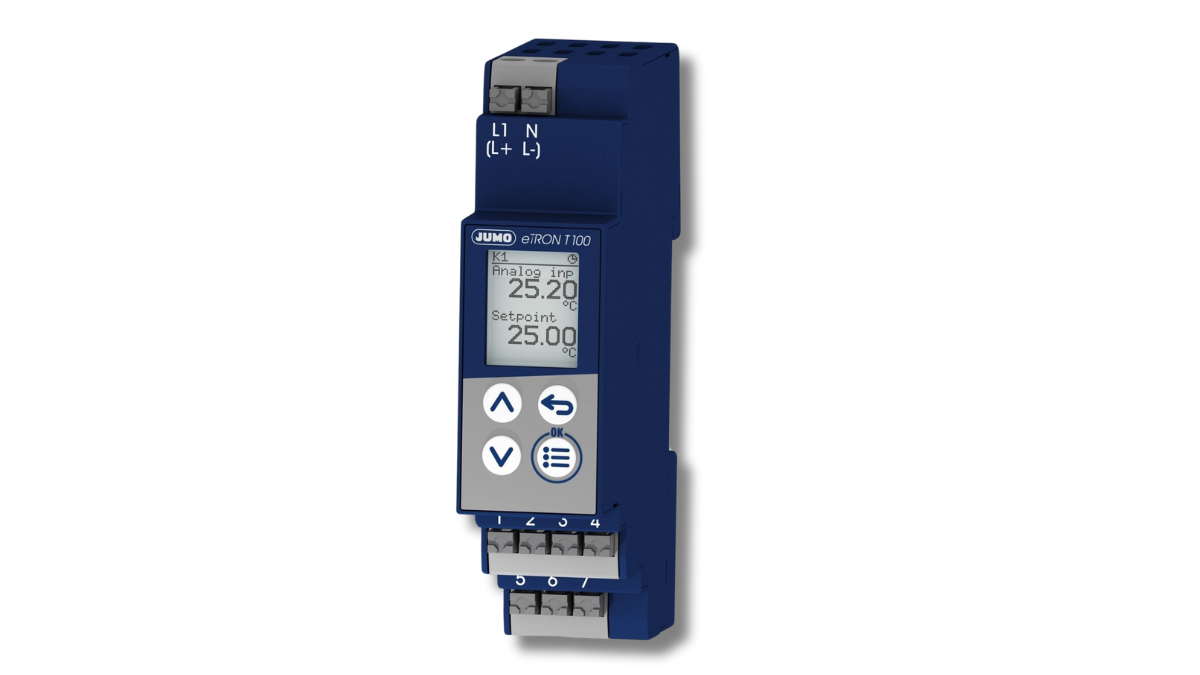

The JUMO eTRON T100 electronic thermostat measures the temperature via RTD temperature probe, thermocouple, or current 0(4)-20 mA and can be configured as a simple heating or cooling thermostat depending on the set switching behavior.

The timer function can be used to start the thermostat function (heating or cooling) or to set a time limit to it. The switching status of the relay and digital outputs, as well as the actual value and setpoint value, are shown simultaneously in the display. It has a resolution of 64 × 80 pixels, and has background lighting.

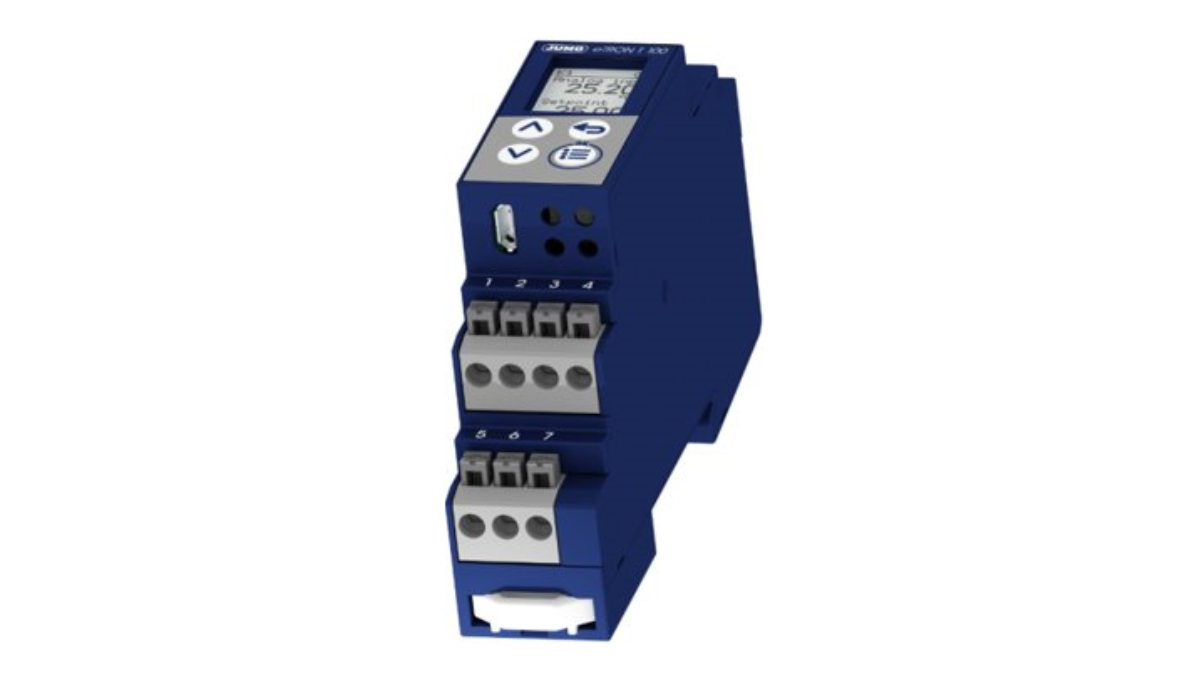

The device is operated via 4 keys on the front panel. The electrical connection is made via terminal blocks with PUSH IN technology. A PhotoMOS® relay for limit value monitoring or a digital input for connecting a potential-free contact are available as options. A setup program is available as an accessory for simple configuration, parameterization, and reading the data logger via PC.

Features

• 5 measuring input groups available
• Intuitive operation and configuration on the device or with the setup program through USB interface
• User level with 8 parameters
• Dot matrix display 64 × 80 pixels with 4 national languages
• Data logger function
• Service and operating hours counter
• Connection via terminal blocks with PUSH IN technology
• 10 A relay (changeover contact)
• Customer-specific linearization in the setup program
• Limit value monitoring
• Timer function
• Meeting the standards and specifications for use in rail vehicles according to DIN EN 50155, DIN EN 50121, and DIN EN 45545

Applications

• Standard industrial applications
• Heating and refrigeration technology
• Railway applications
• Building technology
