OVERVIEW

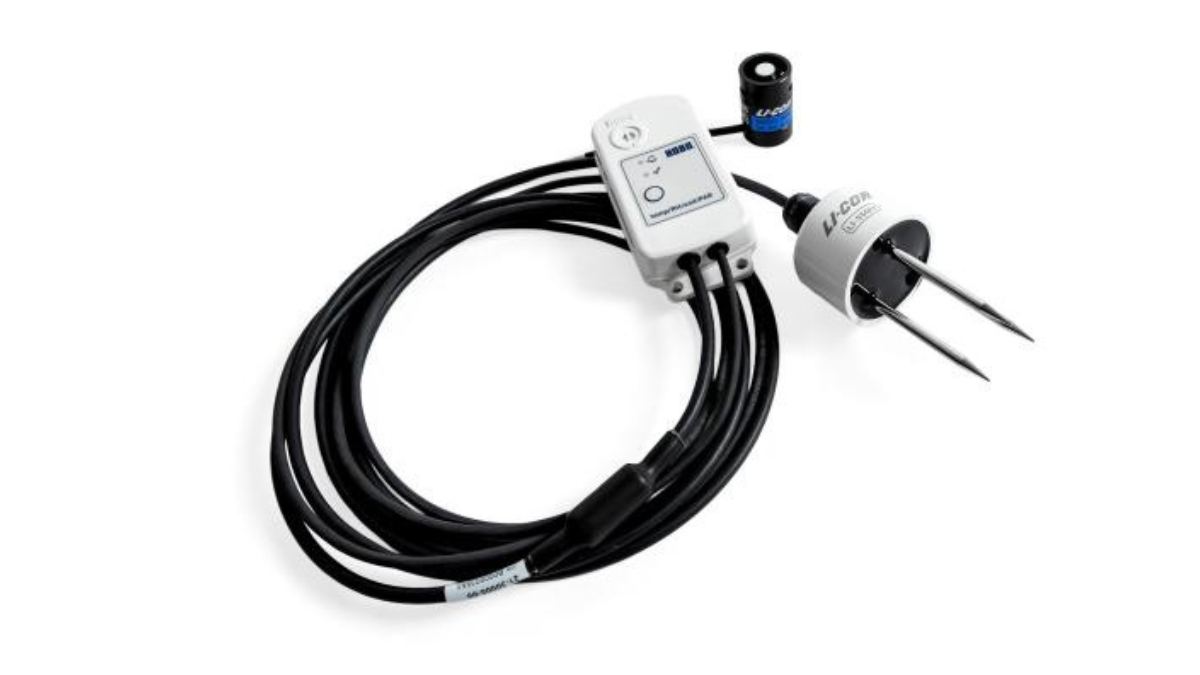

Growth decisions rarely come down to one variable. Light levels tell you what a canopy is receiving, but not whether the root zone can support it, and treating them as separate monitoring problems means running separate equipment. The MX2310 measures both from one unit: research-grade PAR via an integrated LI-COR LI-190R sensor, alongside a LI-300/350 soil EC and volumetric water content sensor, plus internal temperature and RH.
Logged temperature and RH alongside PAR also enables on-device VPD calculation, so greenhouse and growth chamber conditions are visible without post-processing. This supports irrigation timing, dryback tracking in substrate-based growing, and early detection of overwatering through elevated VWC readings, suited to controlled environment agriculture and field-based crop research alike.
Bluetooth configuration and download via the HOBOconnect app means no cabling and no laptop in the field. Add an MX Data Plan for LI-COR Cloud upload if remote access across multiple sites is needed.
Important:
The HOBO MX2300 data loggers require the HOBOconnect App and a compatible mobile device. The system requirements for the HOBOconnect app can be found at the bottom of our HOBOconnect software page.

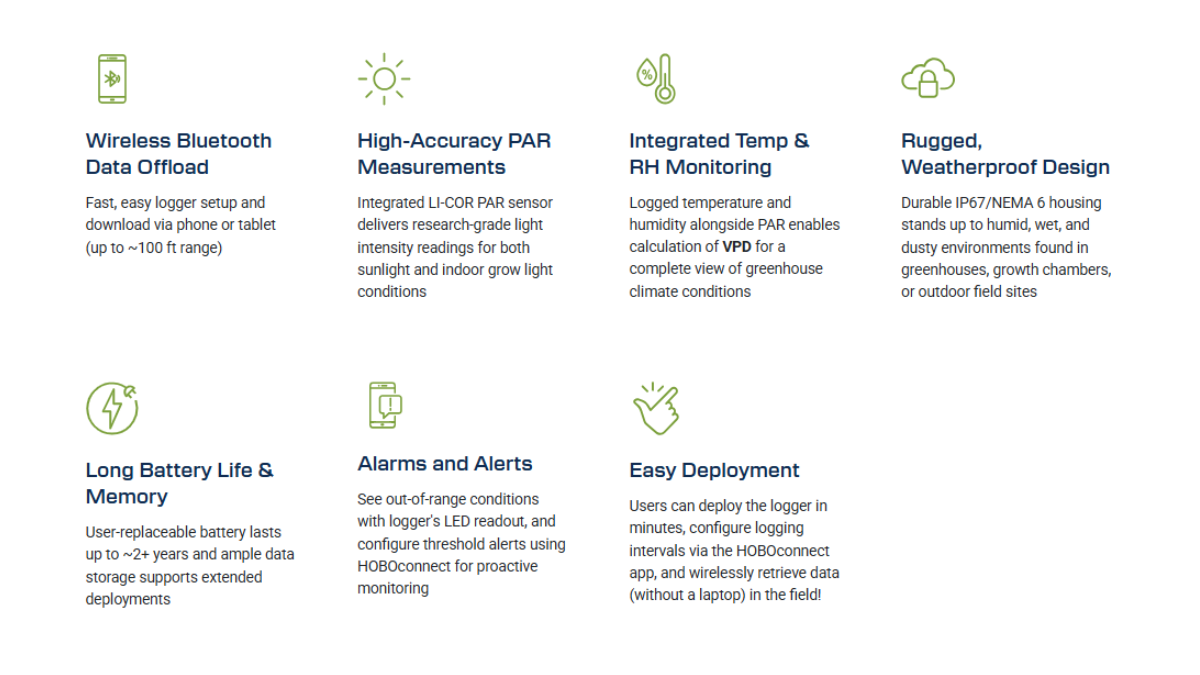

Key features
- Research-grade PAR measurement via an integrated LI-COR LI-190R sensor
- Soil EC, volumetric water content and soil temperature via an external LI-300/350 soil sensor
- Internal temperature and RH, enabling on-device VPD calculation
- IP67-rated weatherproof housing, built for humid, wet or dusty environments
- User-replaceable battery, up to 2+ years typical life
- Configurable alarms flag out-of-range readings on the logger LED and in the app
- Configure and offload data via Bluetooth using the free HOBOconnect app
Not sure if the MX2310 is right for your project?
Combining PAR and soil data in one logger suits some deployments better than others. Call our team on 1300 768 887 and we’ll help you work out the right fit.
-
SPECIFICATIONS
Temperature Sensor
Range -40 to 70°C (-40 to 158°F) Accuracy ±0.2 °C (typical) within -40 to 70 °C Resolution 0.008°C (.014 °F) Drift <0.01°C (0.018°F) per year Response Time* Without Solar Radiation Shield 17 minutes in air moving 1 m/sec Response Time* With Solar Radiation Shield 24 minutes in air moving 1 m/sec Relative Humidity (RH) Sensor
Range 0 to 100% RH, -40° to 70 °C exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1% Accuracy ±2.5% from 10% to 90% (typical) to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% RH and above 90% RH ±5% typical Resolution 0.01% RH Drift <1% per year typical Response Time* Without Solar Radiation Shield 30 seconds in air moving 1 m/sec Response Time* With Solar Radiation Shield 40 seconds in air moving 1 m/sec Calculated Metrics Vapor Pressure Deficit (VPD) in kPa, and Dew Point (computed from logged data) Photosynthetically Active Radiation (PAR)
Range 0 to 3,000 μmol/m²/s (full sunlight) Accuracy ±5% typical (LI-COR LI-190R factory calibration) Offset +/-1 μmol Resolution 0.1 μmol/m²/s Spectral Range 400–700 nm (PAR waveband) Linearity Maximum deviation of 1% up to 3,000umol/m2/s Stability <= 2% change over one year Soil Moisture: Volumetric Water Content (VWC)
Measurement Range (select one at configuration)**** 0.00 to 1.0 m³/m³ VWC in mineral soils
0.00 to 1.0 m³/m³ VWC in soilless media
Apparent Dielectric Permittivity: 1 (air) to 80 (water)Accuracy ±0.03 m³/m³ typical
±0.06 m³/m³ maximum
Apparent Dielectric Permittivity: ±1 ƐaResolution 0.001 m³/m³
Apparent Dielectric Permittivity: 0.002 ƐaDielectric Measurement Frequency 70 MHz Volume of Influence 1400 ml Percent of Field Capacity (for VWC measurements only) Range: 0 to 200%
Resolution: 0.1%Soil Temperature*****
Measurement Range -40 to 70°C (-40 to 158°F) Accuracy ±0.5°C from -40° to -20°C
±0.3°C from -20°C to 70°CResolution 0.1°C (0.18°F) Soil Bulk Electrical Conductivity (EC)
Measurement Range 0 to 20000 µS cm-1 Accuracy ±5 % from 0 to 10000 µS cm-1
±8 % from 10000 to 20000 µS cm-1Resolution 1 µS cm-1 Logger
Operating Range -40 to 70°C (-40 to 158°F) Radio Power 1mW (0 dBm) Transmission Range Approximately 30.5 m (100 ft) line-of-sight Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart) Logging Rate 1 second to 18 hours Logging Modes Fixed interval (normal, statistics) or burst Memory Modes Wrap when full or stop when full Start Modes Immediate, push button, date & time, or next interval Stop Modes When memory is full, push button, date & time, or after a set logging period Time Accuracy ±1 minute per month 0° to 50°C (32° to 122°F) Battery Type 2/3 AA 3.6 Volt lithium, user replaceable Battery Life 2 years, typical with logging interval of 1 minute and Bluetooth Always On enabled; 4 years, typical with logging interval of 1 minute and Bluetooth Always On disabled. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life. Memory 195,000 measurements, maximum Full Memory Download Time Approximately 4-5 minutes; may take longer the further the device is from the logger Dimensions Logger housing: 10.8 x 5.08 x 2.24 cm (4.25 x 2.0 x 0.88 in.)
Soil moisture sensor (only): 4.6 × 4.6 × 10.9 cm (1.81 × 1.81 × 4.31 in)
Soil moisture sensor needle length: 5.4 cm (2.14 in)
Soil moisture sensor needle diameter: 0.40 cm (0.16 in)
Sensor cable length: 2 m (6.56 ft)Weight (unpackaged) 333 g (11.8 oz) Weight (packaged) 490 g (17.3 oz) Materials Acetal, silicone gasket, stainless steel screws
Soil Moisture Sensor: ASA plastic body with polyurethane epoxy filling and stainless-steel pins
Cable: PVC, UV resistant and rodent repellent (soil moisture sensor cable)Environmental Rating Logger: NEMA 6 and IP67
Soil Moisture sensor and cable: xxxx* Typical, up to 90% of change
** Per RH sensor manufacturer data sheet
*** Calibrated against an Eppley Precision Spectral Pyranometer (PSP) under natural daylight conditions. Absolute uncertainty under these conditions is ± 3% typical; ± 5% maximum.
**** The sensor data can be post-calibrated if necessary (e.g. the sensor is used in non-mineral soil types or higher than standard accuracy is required). Users can apply a calibration equation to the data exported from HOBOlink. The VWC range will depend on the calibration equation.
***** For additional accuracy, the sensor data can be post-calibrated for a particular soil by applying a calibration equation to the data exported from the app.
-
HOBO CONNECT
Download the free HOBOconnect app for your iOS or Android mobile device or Windows computer today.
The HOBOconnect app, accessed from a free download from the iTunes or Google Play app store, or your pc, makes it quick and easy to configure compatible MX Series data loggers (chart below) and manage the collected data. From your mobile device, tablet, or Windows computer, users can view data in graphs, check the operational status of loggers, share data files and graph images for analysis in Excel, Numbers, and other applications, and store data in the cloud. HOBOconnect also makes it fast and easy to set up audible alarm notifications so users are immediately notified of problems.
Learn more about HOBOconnect >>
HOBO MX2310 – Temp/RH, PAR & Soil Moisture Data Logger
$2,583.00 ex GST AUD
The MX2310 combines high-accuracy PAR, temperature and RH with soil electrical conductivity and volumetric water content in one Bluetooth-enabled logger, giving growers and researchers a single-device view of canopy and root-zone conditions.
Need Remote Access?
Add the MX Gateway for remote access to your data in the LI-COR cloud IoT Platform (formerly HOBOlink).
