OVERVIEW
Remote access to your data and cloud storage!
Automatically transmits HOBO MX Bluetooth logger data to HOBOlink cloud IoT software (with the purchase of an MX Data Plan (for your connected MX logger).
Ideal for obtaining remote access to data from multiple HOBO MX data loggers monitoring indoor environmental conditions in office buildings, residential environments, warehouses, indoor growing facilities, server rooms, museums, and more.
In order to access the HOBOlink cloud IoT platform to manage, share, and analyse data from anywhere, you must purchase an MX Data Plan for at least one of your MX loggers connected to your Gateway. The Gateway will then send that logger’s data to LI-COR Cloud™ (formerly HOBOlink).
Features
- View and analyse data in HOBOlink from any HOBO MX Bluetooth data logger connected to the MX Gateway
- Near real-time measurements transmitted to your HOBOlink dashboard
- Alarm notifications (out-of-range sensor, low battery, stopped logger, missing logger)
- Unlimited cloud storage via HOBOlink
- 100-foot line-of-site communication
- Wi-Fi & Ethernet connectivity
.png)
.png)
.png)
.png)
.png)
-
FAQ'S
Which HOBO data loggers will work with the MX Gateway?
The HOBO MX data loggers listed in the table above (MX1100, MX2200, and MX2300 series) are all compatible with the MX Gateway. And we will be adding new MX loggers soon!
How do I connect HOBO data loggers with an MX Gateway?
To connect compatible HOBO MX data loggers with an MX Gateway, the loggers must be configured with the gateway option enabled through Wi-Fi or Ethernet in the HOBOconnect app, AND with the same HOBOlink account.
How many HOBO Mx Data loggers can be connected to one MX gateway?
The MX Gateway can support up to 100 HOBO MX data loggers.
Can I use multiple MX Gateway to boost connectivity?
If one MX Gateway has a poor connection to a logger, another gateway in the group can transmit data from that logger instead, expanding the coverage area.
Can the MX Gateway connect to loggers through walls and surfaces?
The range for successful wireless communication between the MX Gateway and HOBO MX data loggers is approximately 100 feet, with full line-of-sight. If there are obstacles between your MX Gateway and loggers, such as walls or metal objects, the connection and the range between loggers and the gateway may decrease.
How often is data sent to HOBO Link?
Data is sent to HOBOlink as often as once per minute.
Ho often is data refreshed in the HOBOlink dashboard?
Data in the HOBOlink dashboard is refreshed every 10 to 20 minutes.
How do data logger alarm events work (measurement alarms, low battery, and stopped logger)?
A time-stamped alarm flag is sent up with the data at a 1-minute rate.
How long before a disconnected MX Gateway triggers an alarm?
It takes 15 minutes for an alarm to trigger in this case.
How long before a disconnected MX data logger triggers an alarm?
It takes 30 minutes for an alarm to trigger in this case.
Can MX water level and pH loggers be used with the MX Gateway?
Yes, but only for applications where the loggers are located indoors, and the top part of the logger is NOT submerged in water.
-
SPECIFICATIONS

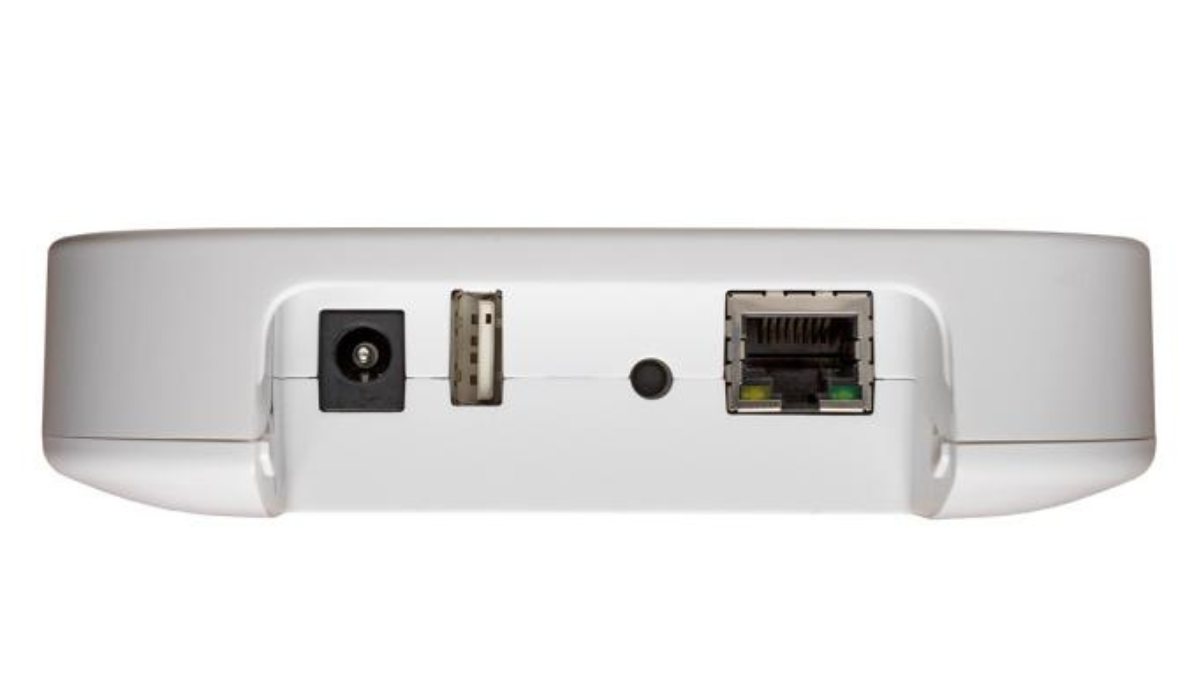

Transmission Range Approximately 30.5 m (100 ft) line-of-sight Wireless Data Standard Bluetooth 5.0 (BLE) Connectivity WiFi 802.11a/b/g/n 2.4/5 GHz or 10/100 Ethernet Security WPA and WPA2, protocols not listed are not supported TA – Operating Ambient Temperature
0°C to 60°C TA-EXT Extended Operating Temperature Range
-20°C to +70°C Power Source AC adapter or Power over Ethernet (PoE) Dimensions 12.4 x 12.4 x 2.87 cm (4.88 x 4.88 x 1.13 inches) Weight 137 g (4.83 oz) CE The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
HOBO MX Gateway
$1,071.00 ex GST
Used with MX Data Plans to Automatically send MX logger data to HOBOlink. Automatically transmits HOBO MX Bluetooth logger data to HOBOlink cloud IoT software (with a purchased MX Data Plan and connected MX data logger).
To push data via the Gateway to the LI-COR Cloud IoT Platform’s (formerly HOBOlink), at least one MX logger with an annual MX data plan is required.
