OVERVIEW
This humidity and temperature transmitter with optional CO2 module works with the capacitive measurement method. This method allows the device to deliver precise readings of relative humidity, temperature, and carbon dioxide (CO2). Equipped with USB and RS485 interfaces, it ensures seamless integration into various systems. The duct design is suitable for use in ventilation ducts and lines. It is characterised by ease of installation, robustness, and reliable sensor technology.
Areas of Application
- Building automation, home automation, and smart home systems
- Climate monitoring
- Ventilation systems
- Freight forwarding and storage
- Railway applications (compliant with DIN EN 50155
Special Features
- Ease of assembly
- Robust construction
- Multisensor functionality
- Optional plastic sinter filter
-
SPECIFICATIONS
Measuring range 0 to 100 % RH Accuracy relative humidity 2 % RH (at 25 °C and 1013 mbar) Operating temperature -40 to +80 °C; -20 to +60 °C CO2 version Accuracy temperature 0.2 K (at 25 °C and 1013 mbar) CO2 measuring range 400 to 10,000 ppm Accuracy CO2 50 ppm +/- 5 % from the measured value (at 25 °C and 1013 mbar) Voltage supply 24 V DC, +/-33 % Protection type IP65 Vibration/shock Industrial applications EMV interference emission Class B EMV interference immunity Industrial requirements Interfaces Voltage and current output, Modbus

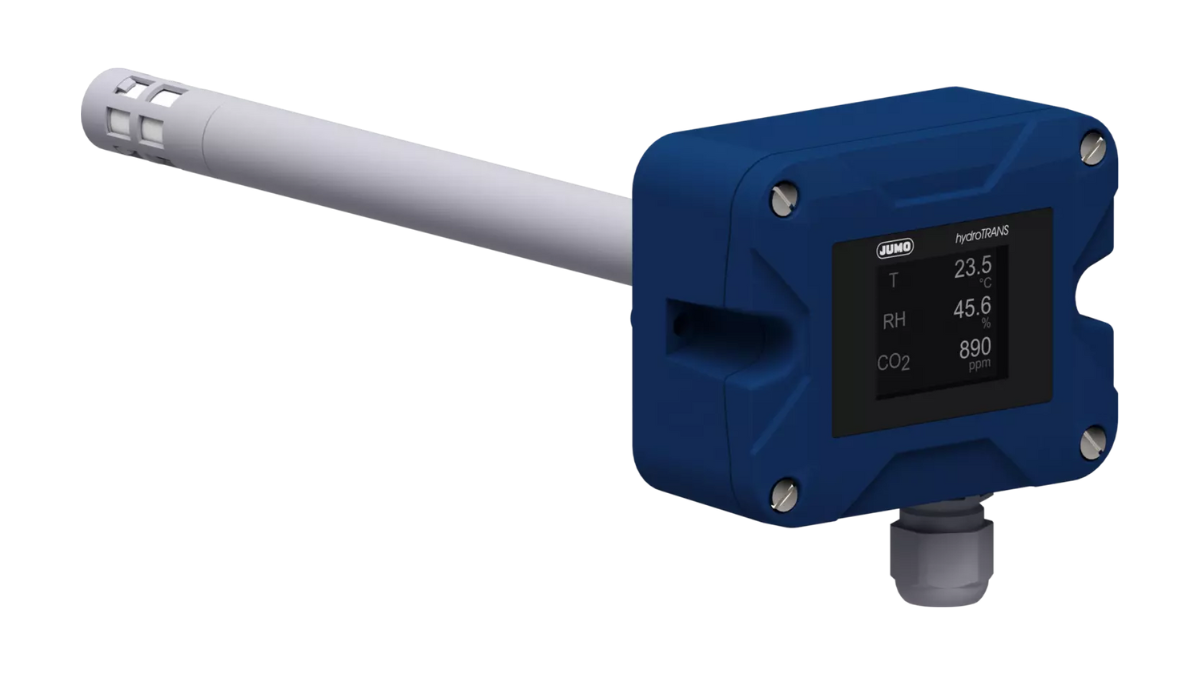

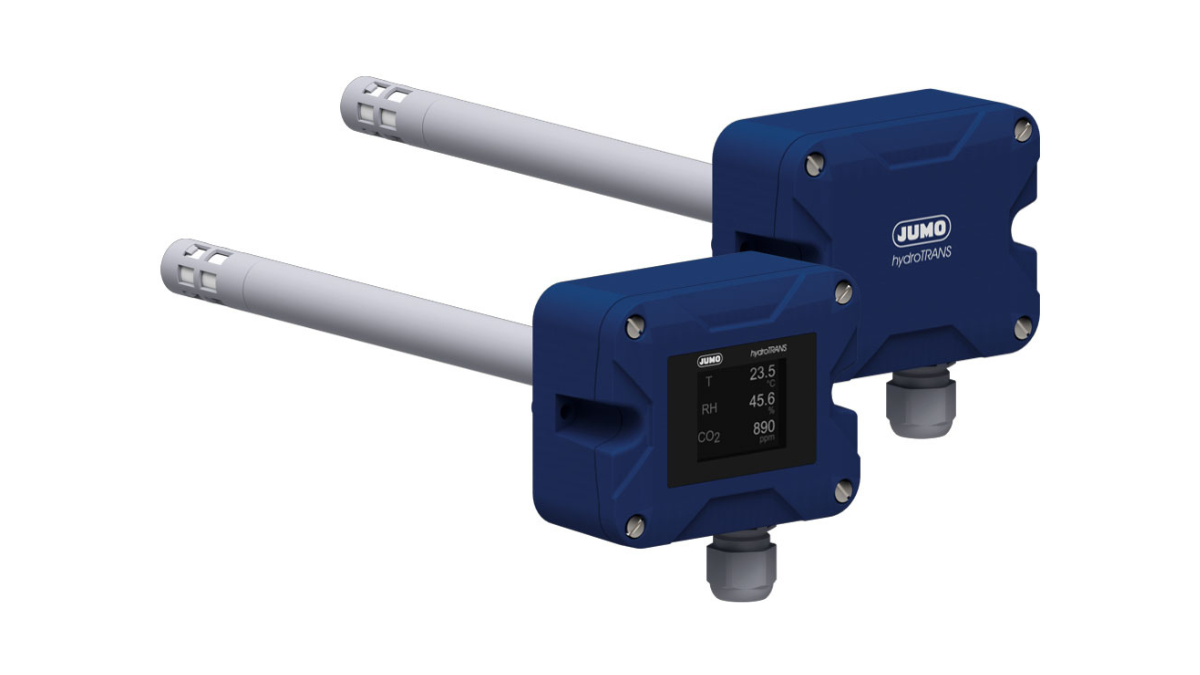

JUMO hydroTRANS S30 Humidity & CO2 Sensor
The JUMO hydroTRANS S30 is designed to monitor outside air entering buildings and production processes. Its duct design makes it suitable for mounting in weather-proofed ventilation ducts, ensuring accurate and reliable measurements in various environments.
