OVERVIEW
The humidity and temperature transmitter with optional CO2 module works with the capacitive measurement method. The wall-mounted version is suitable for use in harsh environments such as storage rooms and production facilities. The device measures relative humidity, temperature, and optionally carbon dioxide (CO2), making it a versatile solution for air quality monitoring. With multiple interface options, including USB, RS485, and innovative Single Pair Ethernet (SPE) technology, it ensures seamless integration with the JUMO Cloud and other automation systems. It is characterised by ease of installation, robustness, and reliable sensor technology.
Humidity and Temperature Transmitter with Optional CO2 Module
Key Features
- Ease of assembly
- Robustness
- Multisensor
- Optional Plastic Sinter Filter
Applications
The JUMO hydroTRANS S20 is versatile and suitable for a wide range of applications, including:
- Building Automation: Ideal for smart homes and climate control systems.
- Climate Monitoring: Ensures optimal air quality in various settings.
- Ventilation Systems: Enhances efficiency and performance.
- Freight and Storage: Monitors conditions in storage rooms and during transportation.
SPECIFICATIONS
Measuring range 0 to 100 % RH Accuracy relative humidity 2 % RH (at 25 °C and 1013 mbar) Operating temperature -40 to +80 °C; -20 to +60 °C CO2 version Accuracy temperature 0.2 K (at 25 °C and 1013 mbar) CO2 measuring range 400 to 10000 ppm Accuracy CO2 50 ppm +/- 5 % from the measured value (at 25 °C and 1013 mbar) Voltage supply 24 V DC, +/- 33 % Protection type IP65 Vibration/shock Industrial applications EMV interference emission Class B EMV interference immunity Industrial requirements Interfaces Voltage and current output, Modbus

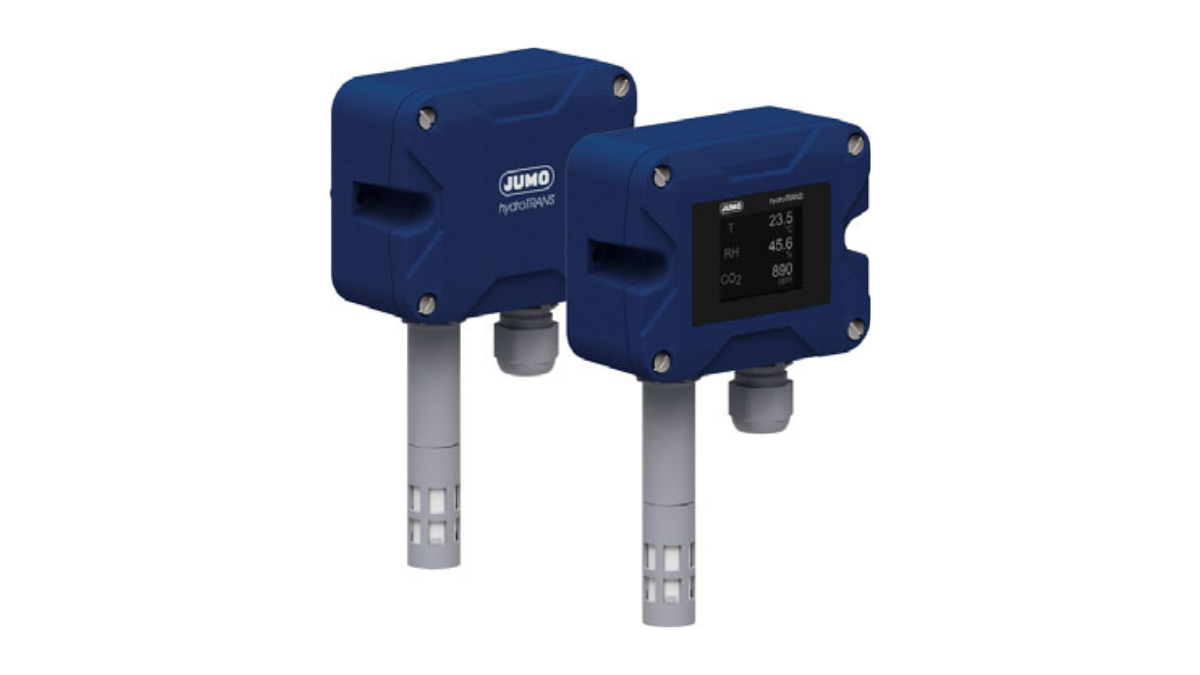

JUMO hydroTRANS S20 Humidity & CO2 Sensor
The JUMO hydroTRANS S20 is designed to monitor ambient air quality in both indoor and weather-proofed outdoor areas. Its advanced sensor technology ensures accurate and reliable performance, making it a trusted choice for various industries.
