OVERVIEW
Troubleshoot your process loop
The new Additel 209 and 210 loop calibrator series combine ease of use and functionality, making them the ideal tools to troubleshoot your process loop. The ADT209 has an accuracy of 0.03% of reading whereas the ADT210 holds an accuracy of 0.01% of reading. If you want to source, simulate or simply measure the Additel Loop calibrator series will fit your need. The ADT209 and ADT210 allow for measurement of current, voltage and a switch. You can also simulate or source mA or a process transmitter. With a push of a button, you can switch to zero and span values, auto ramp, and auto step throughout the range. Each loop calibrator has a large, easy to read screen which simultaneously displays the measurement with the % of span.
Features
- Accuracy to 0.01% of reading
- Small and rugged handheld design
- Measure, source, or simulate loop current
- Measure DC volts
- Simultaneously mA and % span display
- Switch functionality
- Selectable ramp and step functions
- Easy to read display and user interface
- HART 250Ω resistor in series with 24V loop
- ISO 17025-accredited calibration w/data included
-
ADDITEL LINK
Mobile Pressure Control App
The Additel LINK Mobile App is an all-in-one calibration toolkit in your pocket! With features like remote control operation, data recording and monitoring, and a full calibration toolkit, this app is a must-have for any calibration technician!
Additel Link is a control utility designed to allow you to remote control and view the state of your Additel products.
This software will make it easy to control your dry well units. The added productivity will help free up your time, and allow you to get more work done. This app is free, and can help you with your transmitter calibrations with it’s easy to use reference and control panel. It’ll also help you monitor the calibrator when you’re away.
- Remote control of pressure and temperature products
- Calibration toolkit included
- Unit converter
- Probe Calibration Coefficient Generation Tool
- Data Recording
- Simple User Interface
- Supports Various Units
- User Defined Permissions and Access Levels
-
SPECIFICATIONS
Electrical Measure Specifications
Range Resolution ADT209 Accuracy ADT210 Accuracy Voltage DC1 0 to 30 V 1 mV 0.03%RD + 2mV 0.01%RD + 2mV Current DC2 0 to 24 mA 1 μA 0.03%RD + 2μA 0.01%RD + 2μA Switch test Input resistance more than 500 MΩ
Trigger level: low level <0.3V; high level: >2V11MΩ input resistance
2Loop transmitter current measure: 700Ω maximumElectrical Source Specifications
Range Resolution ADT209 Accuracy ADT210 Accuracy Current DC 0 to 24 mA 1 μA 0.03%RD + 2μA 0.01%RD + 2μA Source mode 700Ω/20 mA maximum Sink mode External loop voltage nominal 24V, maximum 30V, minimum 12V General Specifications
Voltage limit 30V between terminals or between terminals and ground Measurement Functions Auto step, auto ramp, span step Display VA LCD display. 2.04 x 2.04 in (52 x 52 mm) Loop power 24V Over-voltage protection 30V DC (240V AC) Overload current protection 33 mA DC Storage temperature -20°C to 70°C Working Environment -10 to 50°C, 95%RH Working Altitude <3,000 m Vibration/shock Random 2G 5 to 500Hz
1 meter dropPower One 9V alkaline battery (ANSI/NEDA 1604A or IEC)
DC9V optional adapter availableBattery life (typical) Output mode: 18 hours (12 mA/500Ω)
Measure mode: 50 hoursSize (LxWxH) 163 x 83 x 41 mm Weight 350 g Calibration Certification ISO 17025 accredited certificate of calibration with data Compliance Certification ADT209: CE
ADT210: CEWarranty 3 years

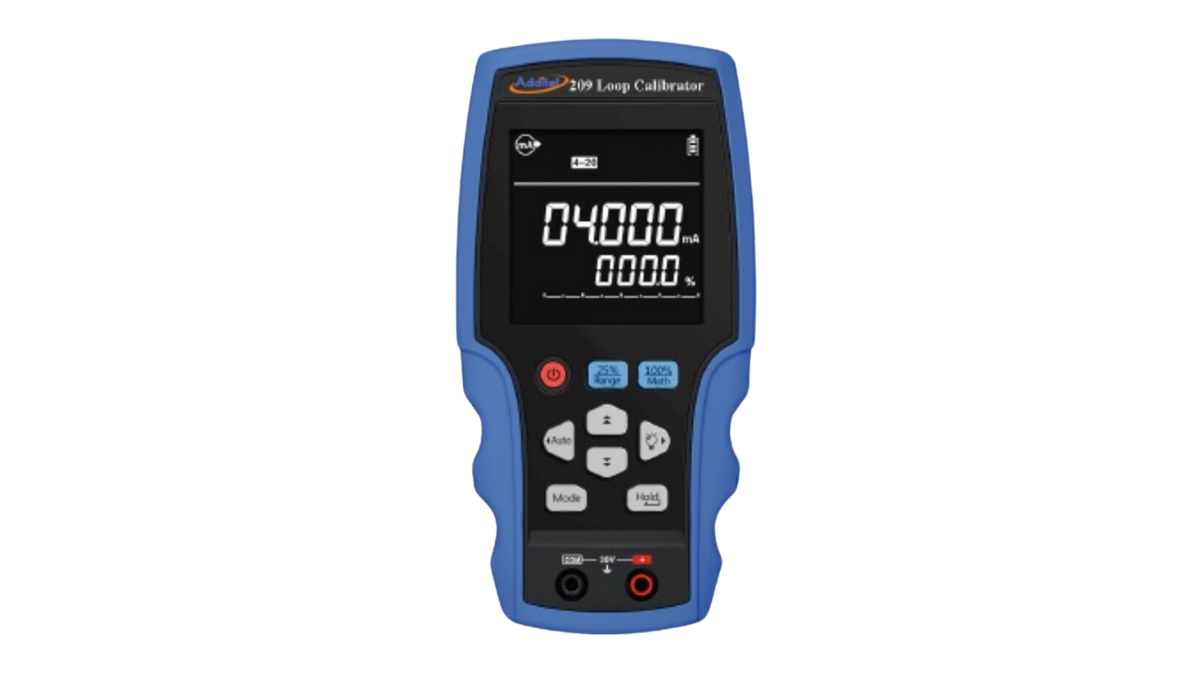

Additel 209 & 210 – Series Loop Calibrator
Price range: $2,010.00 through $2,647.00 ex GST AUD
The new Additel 209 and 210 Series loop calibrator series combine ease of use and functionality, making them the ideal tools to troubleshoot your process loop. The ADT209 has an accuracy of 0.03% of reading whereas the ADT210 holds an accuracy of 0.01%.
