OVERVIEW
Extended area Black body is defined by the large emitting surface area precise temperature control with good uniformity. The blackbody is designed to provide infrared radiation as an ideal blackbody emitter. Because of the large uniform surface area the body called extended area black body. We separately provide high accurate programmable controller with black body source. High accuracy chamber have designed separately. The temperature of furnace is set or changes by the controller.
Key Features:
- Remote control via Ethernet link, RS-232
- Very High Stability and accuracy
- Real time display of surface and set point temperature
SPECIFICATIONS
Parameter
LBB11H
LBB22H
LBB33H
Emissive area 100×100 mm2 200×200 mm2 300×300 mm2 Temperature range 50 to 500 °C Emissive area uniformity(1) ±2 at 40°C ±3 at 400 °C ±4 at 400 °C Emissivity 0.98±0.02 0.98±0.02 0.98±0.02 Stability ±0.1°C Temperature measurement Accuracy ±0.5°C Method of control Digital self tuned PID Controller Display resolution 0.1°C Warm-up time from ambient to Tmax 30 min 45 min 60 min Head dimensions W x H x D (mm³) 300 x 320 x 190 mm 550 x 550 x 260 mm 550 x 550 x 260 mm Head weight 20 kg 25 kg 30 kg Max. power consumption 2000 W 3000 W 5000 W Power supply 230 VAC, 1 ph. 50 Hz 230 VAC, 1 ph. 50 Hz 230 VAC, 1 ph. 50 Hz Remote control Ethernet, RS-232 Ethernet, RS-232 Ethernet, RS-232 Operating temperature range (head) -10°C to +50°C -10°C to +50°C -10°C to +50°C *1 at 80% of emissive area

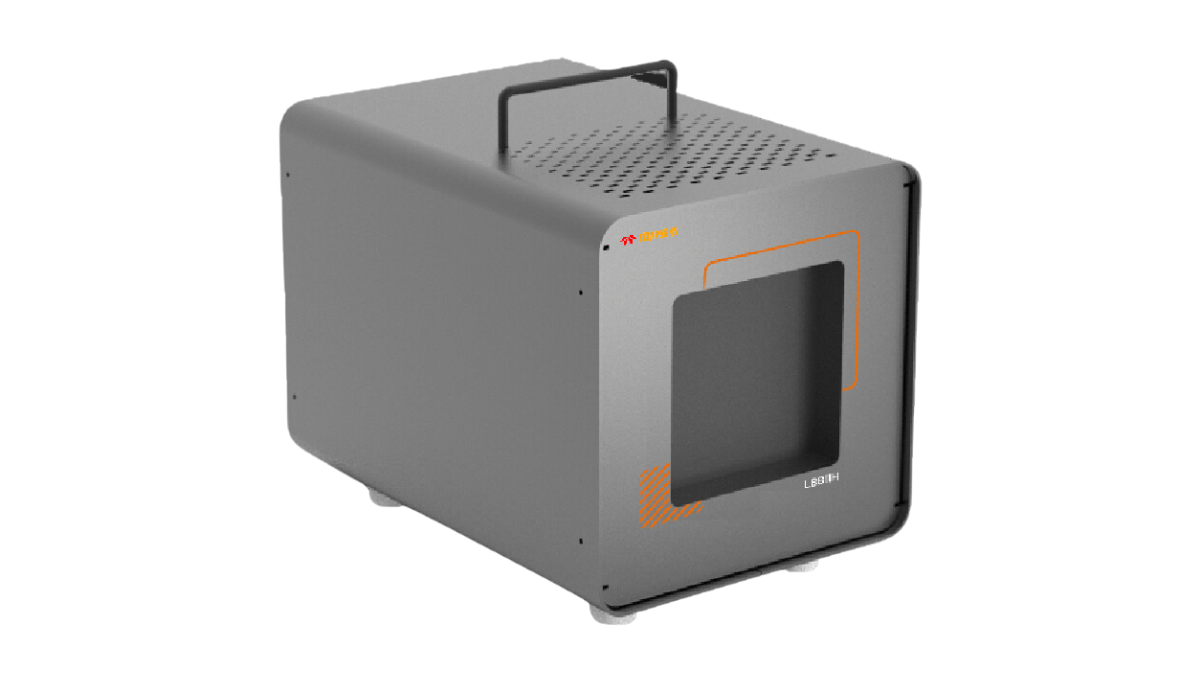

Tempsens LBBH – High Temperature Extended Area Black Body (Temp 50 °C to 500 °C)
$0.00 ex GST
Temperature range from 50 °C to 500 °C. Exceptionally high emissivity of 0.98 ± 0.02. Large emissive area with high uniformity.
