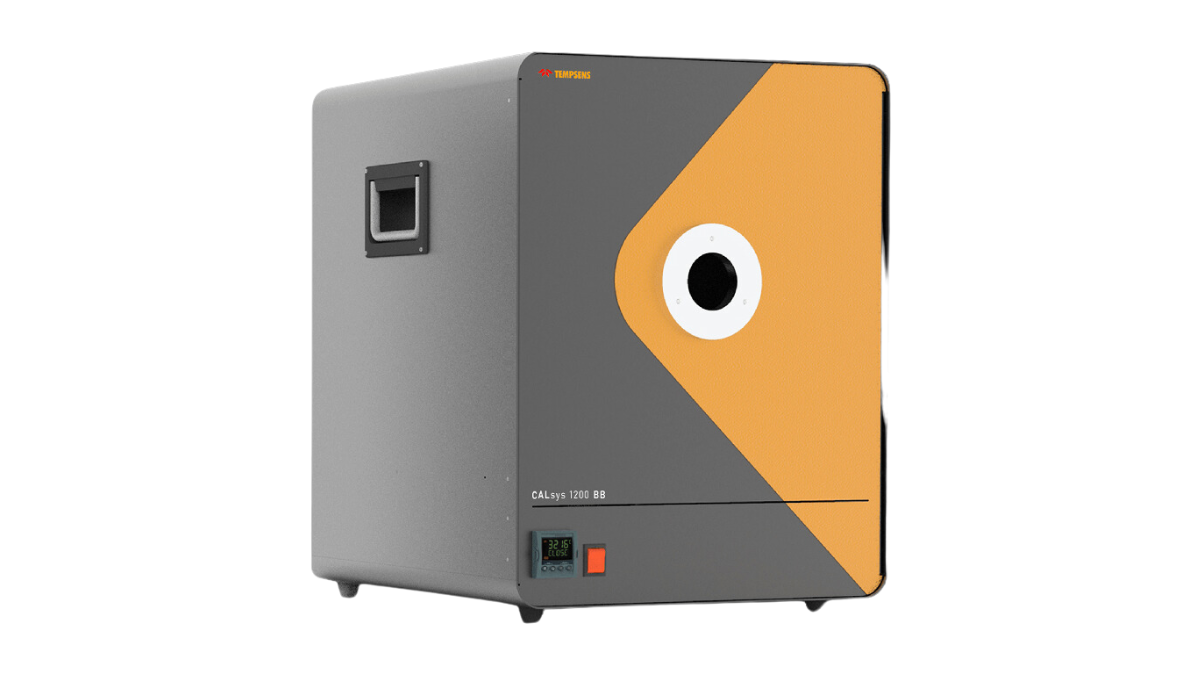

CALsys 1200BB calibration source is a highly stable standard black body furnace for calibrating non contact IR thermometer for the wide temperature range of 300 to 1200°C. The unique feature of this black body furnace is large temperature controlled black body target with a diameter of 40 mm and 85mm which offer large view area for IR thermometer. The emissivity of the target is 0.99(±0.01).The temperature of the calibrator is set and controlled by a self tuned PID controller with automatic super fine adjustment.

Key Features:

• Wide Operating Range (300 to 1200°C)
• High Stability
• PC interfacing
• Simple to use and cost effective
• Sighting tube



Temperature range	300 °C to 1200 °C
Accuracy	±2 °C
Stability	±0.2°C at 300°C ±0.3°C at 800°C ±0.5°C at 1200°C
Cavity type	Silicon carbide
External Aparture	40mm dia
Cavity Diameter	46 mm (85mm depth)
Method of Control	Self tunned PID controller
Heating time	1.5 Hrs
Resolution	1 °C
Display	LCD, °C or °F user-selectable
Size (H x W x D)	590(H) x 450(W) x 530(D) mm
Weight	50Kg
Power requirements	230 VAC, 2.5 KW(50 Hz)
Computer interface	RS – 232
Calibration	Accredited calibration certificate provided
Environmental operating conditions	0 °C to 40 °C, 0 % to 90 % RH (non-condensing)
Specifications valid in environmental conditions	13 °C … 33 °C
