OVERVIEW
Using a heat sink with a solid state relays allows you to reach the full current capacity. Solid state relays become quite hot when used in a high current application, so suitable heat sinking is essential.
SPECIFICATIONS
Length 110mm Width 118mm Height 64mm Packaged volume 1.1l Packaged weight 0.32kg Packaged length 12.5cm Packaged width 11.5cm Packaged height 7cm Heatsink material Aluminium Heatsink thermal resistance 1.1°C/W Heatsink mounting method Screw down Heatsink fins 12pc

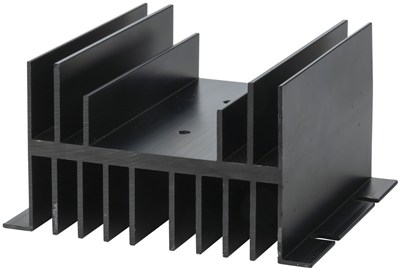

SSR Heatsink
$36.00 ex GST
Solid state relays become quite hot when used in a high current application, so suitable heat sinking is essential.
