Monitor Temperatures up to 260°C

• 316 Stainless Steel Sheath
• Class “A” PT100 element
• 6.4mm (1/4″) Diameter Stem
• With or without head mounted 4-20mA transmitter
• Large Aluminium connection head IP65
• 1/2″BSP process connection
• Max 260°C

Standard lengths

Can be made to standard lengths: 100, 150, 200, 250, 300, 350, 400, 450, 500 and 600mm with other sizes made to order (please call us for a custom quote)

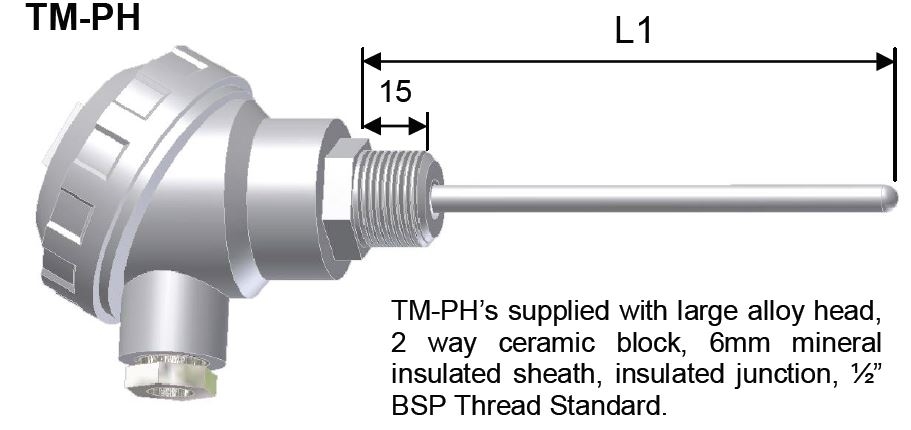

Note: L1 length is measured from the top of the thread. See diagram

Transmitter

If you require a head mounted transmitter with 4-20mA output. Call us for a quote.

Learn More >>

Thermowell

A suitable stainless steel Thermowell can be supplied with 1/2″ BSP process connection. Recomended for fluid applications. Call us for a quote.

Learn More >>

Note: using a thermowell reduces the insertion length by Approx. 25mm when fitted to a sensor. Select a sensor longer if using a thermowell.

Measured L1 as per the diagram, includes the thread.

Turn your standalone RTD Thermocouple Sensor into a comprehensive Temperature Control system effortlessly.

By integrating a Shimaden SR90 Controller or Shimaden SD17 indicator, you can take charge of your temperature control requirements.

With the Shimaden SR90 Controller, you gain full control over your temperature settings. This advanced device allows precise temperature regulation, enabling you to maintain optimal conditions for various applications. Its user-friendly interface and intuitive programming make it easy to set up and operate, ensuring a seamless experience.

Alternatively, the Shimaden SD17 indicator offers clear and accurate temperature readings at a glance. With its bright display and customisable options, you can monitor temperature fluctuations with ease. The SD17 indicator provides real-time data, empowering you to make informed decisions and take prompt action when necessary.

By combining either of these state-of-the-art controllers or indicators with our reliable RTD Thermocouple Sensor, you can create a complete Temperature Control system tailored to your specific needs. Whether you’re in the industrial sector, scientific research, or any other field requiring precise temperature control, our solution delivers unparalleled performance and efficiency.

Transform your RTD Thermocouple Sensor into a comprehensive system with a Shimaden SR90 Controller or Shimaden SD17 indicator, and unlock a new level of control and accuracy.

Experience the power of seamless temperature control today. Contact one of our technical advisors for further information!
