OVERVIEW
Unparalleled Air Parameter Monitoring and Regulation with the Sauermann Si-C320 Transmitters
Designed for clean rooms, regulated environments, and industrial VAC applications requiring precise regulation and monitoring of air parameters, the Si-C320 transmitters offer dependable measurements to ensure compliance with the most stringent regulations.
The Si-C320 boasts a waterproof, rugged housing that is resistant to vaporised hydrogen peroxide (VHP), making it ideal for demanding environments. Equipped with a color touch screen, this advanced transmitter provides comprehensive visibility and control over measurement parameters.
Furthermore, the Sauermann Control application/software enables seamless recording and downloading of measurements. With multiple available models, you can customise your multifunction transmitter based on your specific requirements using the options provided in the data sheet.
Experience the reliability and advanced capabilities of the Sauermann Si-C320 for unparalleled air parameter monitoring and regulation.
Elevate Your Monitoring Standards with the Sauermann Si-C320
Features
- Versatile functionality suited for both VAC and IAQ applications
- Two inputs available for external probes
- Four analog outputs for enhanced adaptability
- RS485 interface supporting ModBus RTU protocol for seamless integration
- Output diagnostics for streamlined monitoring
- Flexibility to customise channel names to align with specific requirements
Application Examples
- Monitoring and regulation of differential pressure, relative humidity, temperature, air velocity and ACR** in cleanrooms and operating rooms
- Dynamic pressure/ psychrometry/temperature/airflow/ACR** regulation in air handling units and ductworks
- Laminar flow monitoring (clean rooms, glove boxes, fume hoods, isolation cabinets, liquid filling machines)
- Monitoring of drying processes in industrial manufacturing (bricks, pasta…)
-
SPECIFICATIONS
Measure Details
Units ACH, inH₂O, ppb, °Ctf, °F, °Ftf, °C, % RH, °Ctw, °Ctd, °Ftd, °Ftw, Pa, ppm, g/m³, g/kg, kj/kg, m/s, m³/h, cfm Alarm Buzzer (60 dB at 10 cm) Technical Details
Parameters Absolute humidityAir Change RateAir velocityAirflowCOVOCCO₂Dew pointDifferential pressureEnthalpyFrost pointMixing RatioRelative humidityTemperatureWet-bulb temperatureDisplays Graphic touch display IP Protection IP 66, VHP resistant (Vaporized hydrogen peroxide) Standards 2015/863 EU (RoHS 3)UKCA2012/19/EU WEEE2014/30/EU EMC2014/35/EU Low Voltage2014/53/EU REDBluetooth 1 Power Supply 24 VAC / VDC ±10% Outputs 4 x 4-20 mA, 0-20 mA, 0-10 V and 0-5 V analogue outputs Ethernet Communications No ModBus Network Yes Instrument Dimensions
Length 6 7/32 inches
158.25 mmWidth 3 1/32 inches
76.65 mmHeight 5 11/32 inches
135.8 mmWeight 1 13/32 pounds
626 gOperating Temperature
Min -10.00 °C
14.00 °FMax 50.00 °C
122.00 °FStorage Temperature
Min -10.00 °C
14.00 °FMax 70.00 °C
158.00 °F -
SOFTWARE
Sauermann Control Mobile App for Class 320 Transmitters
Control and configure the Class 320 transmitters with a smartphone or a tablet via the Sauermann Control mobile application, which allows you to manage all the device’s parameters via its wireless connection module.
This App can also easily update the firmware of the instrument and its probes.
- Access to all parameters and options of the transmitters and their probes
- Real-time measurement display
- Configuration of the measurement channels
- Configuration of analogue and digital outputs
- Setting of alarm thresholds
- Security locks management
- Complete configuration of each probe
- Autozero scheduling
Download the App to make the most of your device’s capabilities.
Google Play
App Store
Sauermann Control software for Class 320 Transmitters
Control and configure the Class 320 transmitters from your computer via the Sauermann Control PC software, which allows you to manage all the device’s parameters via its USB cable.
This software can also easily update the firmware of the instrument and its probes.
- Access to all parameters and options of the transmitters and their probes
- Real-time measurement display
- Configuration of the measurement channels
- Configuration of analogue and digital outputs
- Setting of alarm thresholds
- Security locks management
- Complete configuration of each probe
- Autozero scheduling.
Download the software to make the most of your device’s capabilities.
Operating systems Windows 10

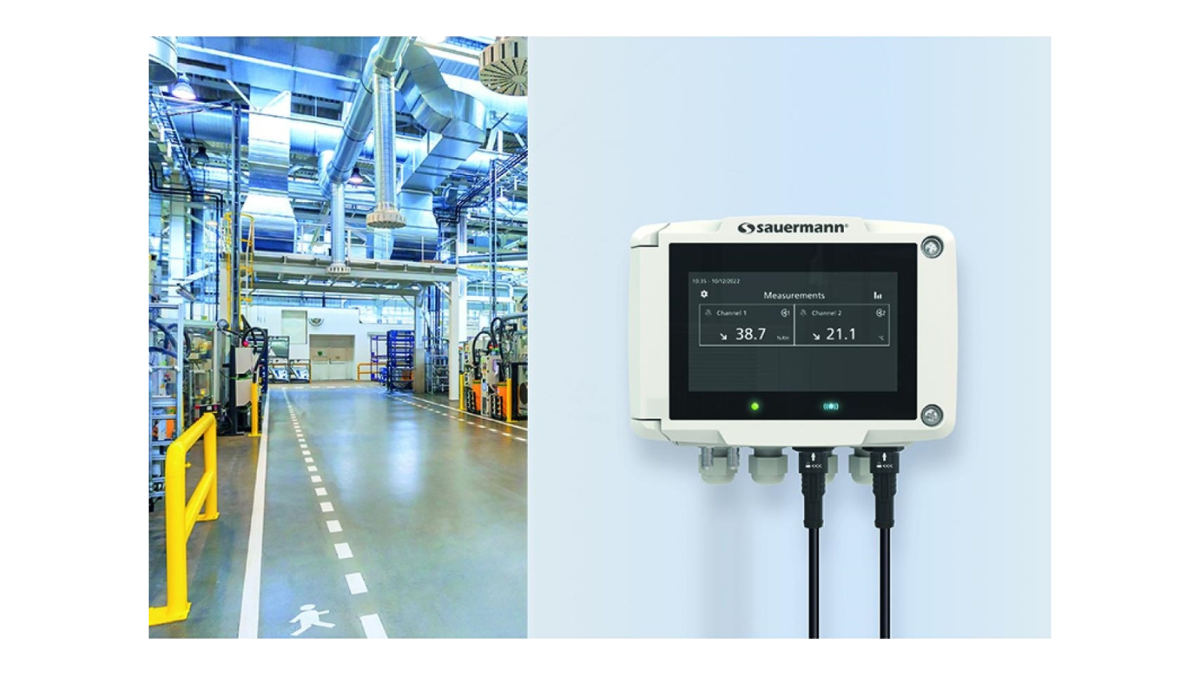

Sauermann Class 320 Transmitter
Designed for clean rooms, regulated environments, and industrial VAC applications, this multifunctional device ensures precise regulation and monitoring of air parameters. Its waterproof, rugged housing, colour touch screen, and Sauermann Control software provide comprehensive visibility and customisable options for seamless measurement recording and downloading.
