OVERVIEW
Get real-time temperature readings up to 400°C
Introducing the PoE Thermocouple Sensor – an advanced device that supports a variety of thermocouple types and ranges through either a hardwired thermocouple or K-type connector. With the hardwired thermocouple option, temperatures up to 400°C (752°F) can be measured.
Customisable and easy to use, Monnit’s thermocouple can be programmed to sleep, capture analogue data, and convert it into temperature measurements at specified intervals. Plus, it comes equipped with temperature alert settings, so you’ll never miss a beat. Get notified via text, email, or call if the sensor detects temperatures outside of your desired range.
The Power-over-Ethernet (PoE) Sensor products measure various conditions (environmental, power, access). All devices come with flexible settings – including notifications, alerts, reports, and maps – can be customized in the iMonnit online sensor management interface.
Monnit’s Power over Ethernet sensors integrate with a building’s PoE network; it can also be used with a standard Ethernet infrastructure and powered via an optional AC adapter.
Features
- Power-over-Ethernet ready (injector hardware required)
- Embedded LEDs for transmission & online condition indicators
- 50,000 sensor message memory (non-volatile)
- Modbus TCP & SNTP v1 interface capabilities
- No PC required (managed through apps and smart devices)
- Remote update capable w/automatic updates
Applications
- Chimney/Flue Temperature Monitoring
- Kiln Temperature Monitoring
- High Temperature Food Monitoring
-
SOFTWARE
Manage Your Monnit Sensors with iMonnit Cloud-based Software
Monnit’s Sensor Monitoring Software, iMonnit, stands as a cutting-edge cloud-based platform and central hub tailored for the seamless management of Monnit sensors. With a focus on data security, all information is safeguarded on dedicated servers running Microsoft SQL Server. This intuitive online user interface serves as a command centre for arranging, monitoring, and modifying device settings to suit individual requirements.
OneTemp provides complimentary activation and setup services for new iMonnit accounts, while a free mobile app empowers users to maintain control at all times. Whether opting for the basic version or upgrading to iMonnit Premiere, users can unlock the full spectrum of features that enrich the Monnit experience.
Click here to explore the software options >>
-
SPECIFICATIONS
Part Number MNS-P-C1-TS-TC-HW Communication Hardware 10 / 100 Ethernet Controller PoE Requirements Class 1 Device (500mW) IEEE Standard Compliance 802.3AF-2003 / 802.3AT-2009 Class 1 Operation Full- and Half-Duplex Cross-Over Correction Automatic MDI / MDI-X Protocols Supported DHCP, DNS, NTP, UDP, TCP, SNMP, Modbus TCP Input Power Supplementary Power Requirement Cable Connector RJ45 Supplementary Power Connector 2.1 x 5.5 mm barrel jack, center positive Device Memory Up to 50,000 sensor messages; varies based on sensor type. (Sensor messages will be stored in the event of Internet outage and transferred when connection is restored.) Forced Communication / Reset Hardware Button Operating Temperature -20 to +60°C (-4 to 140°F) Storage Temperature -40 to +85°C (-40 to 185°F) Sensor Specifications
Thermocouple Probe Type-K, 6 inches long with 1.6 inch by 0.6 inch flange between probe and connection cord Thermocouple Connection Cord 6 ft long coil with glass braid insulation and metal overbraid Hardwired Thermocouple Probe – Temperature Range -100°C to +400°C (-148°F to +752°F) Hardwired Thermocouple Probe – Accuracy above 0° C +/- 2.2° c or 0.75% (whichever is greater) Hardwired Thermocouple Probe – Accuracy below 0° C +/- 2.2° c or 2.0% (whichever is greater) Hardwired Thrermocouple Response Time 60 Seconds in still water to reach 95% of actual temperature. Weight 6.32 oz. (179 g)

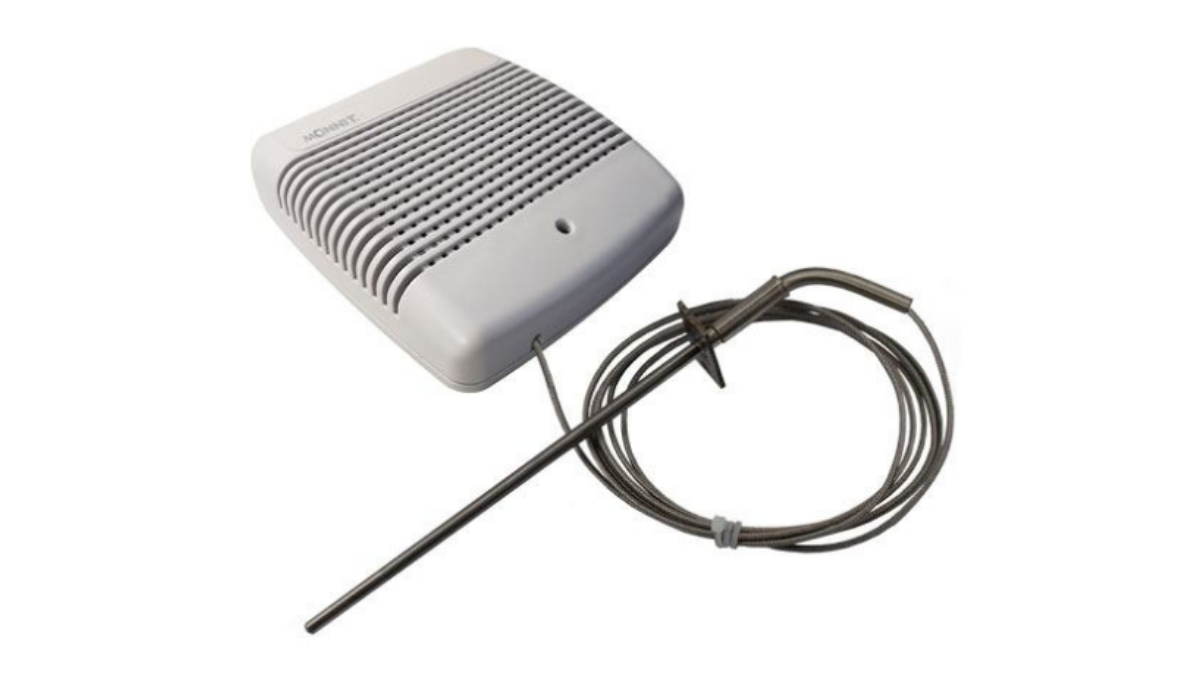

Monnit PoE•X Thermocouple Sensor
$615.00 ex GST
Monnit’s hardwired thermocouples feature a needle-style probe at the end of a 6’ lead. Users benefit from a wireless data transmission range of 1,200+ ft, bank-grade security, and a temperature range of up to 400°C (752°F).
