OVERVIEW
Protect your equipment, inventory, and personnel with Monnit standard temperature sensors
Global enterprises trust Monnit Enterprise Standard Temperature Sensors to protect equipment, inventory, and personnel. This sensor sends readings to iMonnit Online Wireless Sensor Monitoring and Notification system in degrees Fahrenheit or Celsius based upon your configurations. When the temperature exceeds preset thresholds, these sensors issue an alert via text, email, or call.
The Temperature Sensor uses a type Negative Temperature Coefficient (NTC) thermistor to measure temperature. It is accurate to ± 1° C (± 1.8° F) and accuracy can be increased by user calibration to ± 0.25° C (± 0.45° F).
Monitor the temperature of virtually anything
The Enterprise Standard Temperature Sensor outputs the ambient temperature in degrees Fahrenheit or Celsius. The sensor’s programmed to sleep for a user-given time interval (heartbeat) and then wake up. Then, it sends power to the NTC thermistor and waits for it to stabilize to convert the analogue data, mathematically compute the temperature, and transmit the data to the gateway. The sensor’s processor is programmed to calculate the temperature based on an internal data table. The Temperature Sensor also implements and configures a variable resistor over specified temperature ranges to reduce error. An industry-leading 25-month NIST certification is available on leaded Monnit Temperature Sensors.
This sensor comes with two replaceable AA sized batteries and the sensor has a typical battery life of up to 10 years. It can also be customised with an additional probe in lengths ranging from 3 – 100 ft.
Features:
- Impressive wireless range of up to 1,200 feet through walls
- Frequency-hopping spread spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF® Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Over-the-air updates
- Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email
- Stores 2000 to 4000 readings if gateway connection is lost (non-volatile flash, persists through the power cycle)
- 10-minute heartbeats = ~ 22 days
- 2-hour heartbeats = ~ 266 days
Applications:
- Ambient temperature monitoring
- Environmental monitoring
- Smart machines and facilities
- HVAC operation and testing
- Data centre and server room monitoring
- Logistics and warehousing
- Facility and property management
- Morgues and mortuaries
-
GATEWAY
Gateway Options for Seamless IoT Data Communication
Monnit offers a range of gateway options designed to facilitate wireless sensor data communication within IoT networks. These gateways, serve as crucial conduits for transmitting sensor data to the iMonnit software platform and play a pivotal role in ensuring seamless and efficient data transmission for IoT applications.
Click here to explore the diverse range of gateway devices available >>
-
SOFTWARE
Manage Your Monnit Sensors with iMonnit Cloud-based Software
Monnit’s Sensor Monitoring Software, iMonnit, stands as a cutting-edge cloud-based platform and central hub tailored for the seamless management of Monnit sensors. With a focus on data security, all information is safeguarded on dedicated servers running Microsoft SQL Server. This intuitive online user interface serves as a command centre for arranging, monitoring, and modifying device settings to suit individual requirements.
OneTemp provides complimentary activation and setup services for new iMonnit accounts, while a free mobile app empowers users to maintain control at all times. Whether opting for the basic version or upgrading to iMonnit Premiere, users can unlock the full spectrum of features that enrich the Monnit experience.
Click here to explore the software options >>
-
SPECIFICATIONS
Supply voltage 2.0 – 3.8 VDC (5.0?12 VDC using power supply)1 Current consumption 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle),
2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio
TX mode)Operating temperature range (board circuitry and batteries) -18°C to 55°C (0°F to 130°F) using alkaline
-40°C to 85°C (-40°F to 185°F) using lithiumOptimal battery temperature range (AA) +10°C to +50°C (+50°F to +122°F) External Probe and Lead Operating Range -40°C to +125°C (-40°F to +257°F) Waterproof Accuracy @ 25°C +/- 1% (1° C or 1.8° F) User-calibrated accuracy +/- 0.25° C (± 0.45° F) Time constant @ 25°C 15-second max Data logging Data logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through the power cycle): – 10-minute heartbeats = ~ 22 days – 2-hour heartbeats = ~ 266 days Wireless range 1,200+ ft non-line-of-sight Security Encrypt-RF® (256-bit key exchange and AES-128 CTR) Weight 3 oz. (85.05 g) – No lead | 3.7 oz. (105 g) – with 3 ft. (0.91 m) lead Lead Probe: 316 stainless steel. Dimensions: 4.8 mm x 25 mm
Waterproof Length Options:
3 ft. (0.91 m)
10 ft. (3.04 m)
25 ft. (7.62 m)
50 ft. (15.24 m)
100 ft. (30.48 m)Certifications 900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-G2SC1. 868 and 433 MHz product tested and found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02), and EN 60950 1Hardware cannot withstand negative voltage. Please take care when connecting a power device.

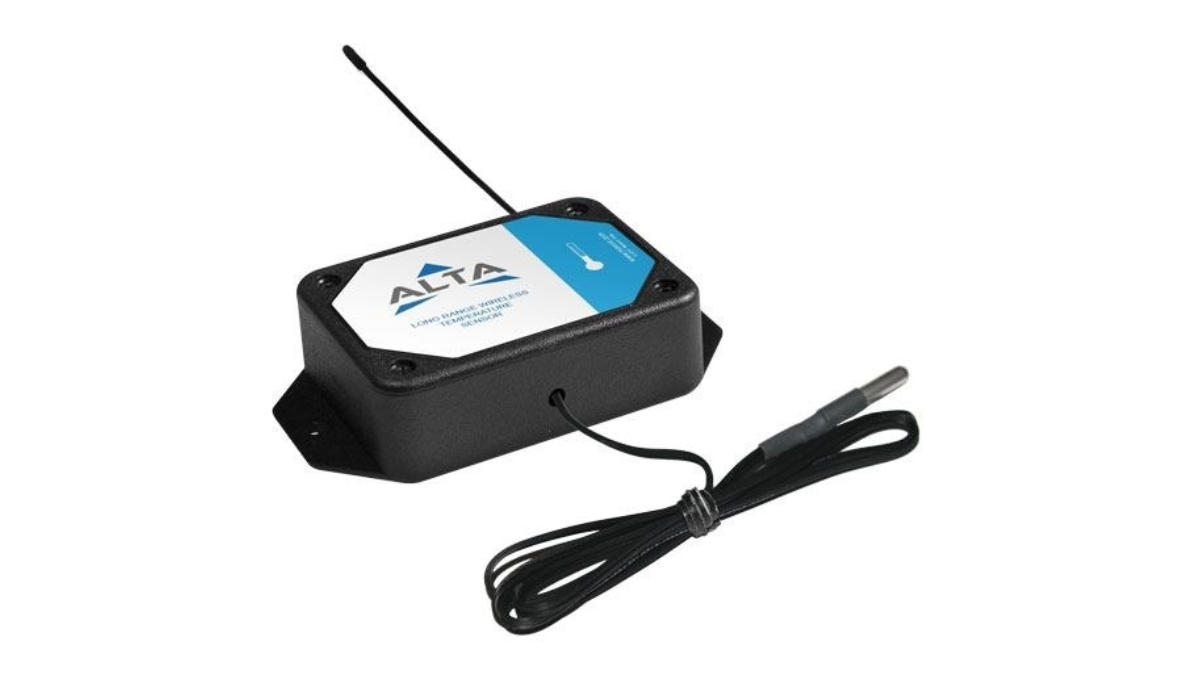

Monnit Enterprise Standard Temperature Wireless Sensor
$263.00 – $425.00 ex GST
Accurately measures temperatures between -40 to +125°C in ambient conditions or with an external probe.
NOTE: Gateway Required for Operation – Refer to Tab Below
