OVERVIEW
Make your data communication seamless
The Monnit Serial MODBUS Gateway acts as a data concentrator for Monnit wireless sensor networks. This device incorporates Monnit’s Access Point Node (APN) and Serial RS-232C and RS-485 Interfacing hardware.
Notes: We recommend purchasing the Serial MODBUS Gateway – USB programmer and software to help you configure and use your Monnit SMG Gateway.
Features
- Works with Monnit Sensor Networking Solutions
- Communicates with MODBUS RTU / ASCII Serial Protocolsf
- Supports RS-232C / RS-485 Interfacing
- NEMA 4X / IP66 Rated Enclosure
- RP SMA Antenna Connector (Antenna Included)
Suggested Application Uses for This Sensor
- Transmits sensor data to the iMonnit online sensor monitoring portal
- Commercial monitoring applications
- Facilities monitoring
- Small business monitoring
- Large business monitoring

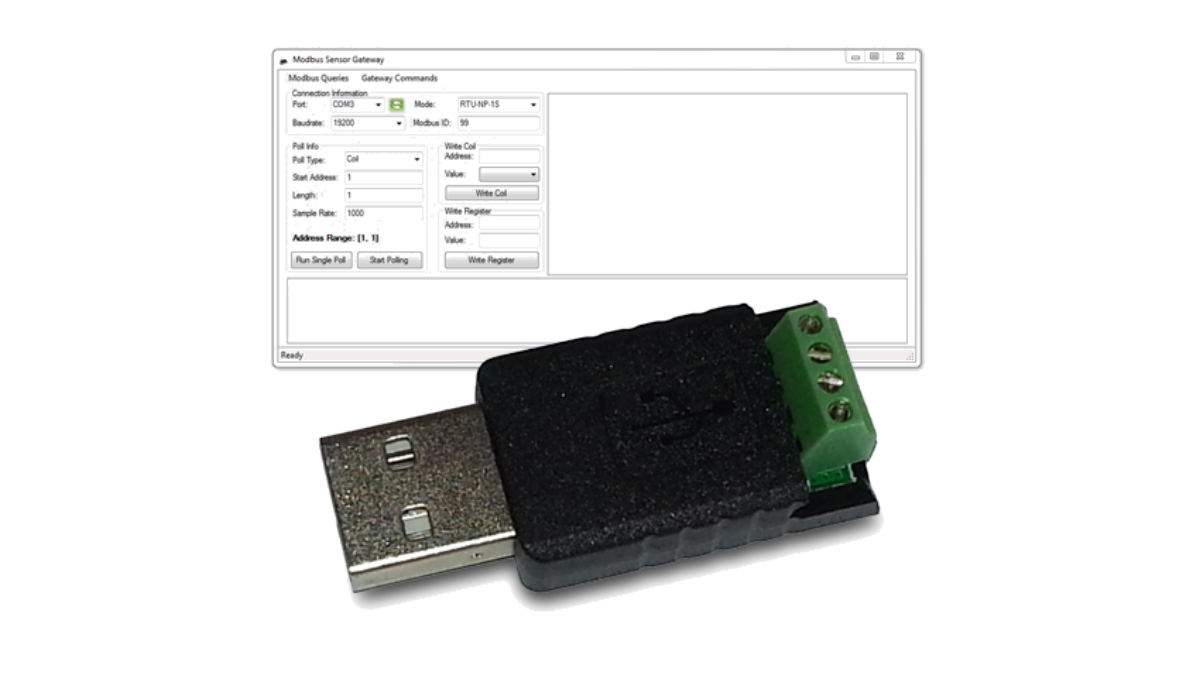

Serial USB MODBUS Programmer
Serial MODBUS Gateway Configuration Utility with RS485 to USB Converter allows you to connect the serial gateway to a computer to configure gateway settings, add wireless sensors and test functionality. This product includes an RS485 to USB converting USB dongle and Monnit’s Serial MODBUS configuration software.
Download Software here: https://www.monnit.com/support/downloads
-
SOFTWARE
Gateway Options for Seamless IoT Data Communication
Monnit offers a range of gateway options designed to facilitate wireless sensor data communication within IoT networks. These gateways, serve as crucial conduits for transmitting sensor data to the iMonnit software platform and play a pivotal role in ensuring seamless and efficient data transmission for IoT applications.
Click here to explore the diverse range of gateway devices available >>
-
SPECIFICATIONS
Wireless
Wireless Range 1,200+ ft. non-line-of-sight * Security Encrypt-RF® (256-bit key exchange and AES-128 CTR) Monnit Radio Support ALTA Wireless Module by Monnit
Frequencies: 900, 868 and 433 MHzAntenna Connector: RP-SMA
Gain: 5.0 dBi StandardCertifications 900 MHz product; FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1. 868 and
433 MHz product tested and found to comply with: EN 300 220-2 V3.1.1
(2017-02), EN 300 220-2 V3.1.1 (2017-02) and EN 60950.3 Wire Communication Interface
RS-232C TXD (OUT), RXD (IN), and Ground / Common RS-485 D+, D-, and Ground / Common Protocol Selector Jumper for RS-232 and RS485 Power
Input Voltage Range 4.5 – 36.0 VDC ** Minimum Current Required 100mA (500mA Recommended) Environmental
Operating Temperature -40°C to +85°C (-40°F to 185°F) *** Storage Temperature -40°C to +85°C (-40°F to 185°F) Mechanical
LEDs Wireless Activity, Wired Activity, System Status Reset Feature Communication / Factory Settings Reset Jumper Enclosure Durable, Impact-Resistant UV Stabilized Polycarbonate
(IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 Rated)Dimensions 179.603 x 90.678 x 41.30 mm Weight 16 ounces * Actual range may vary depending on environment.
** Hardware cannot withstand negative voltage. Please take care when connecting a power device.
Monnit ALTA Serial MODBUS Gateway
$759.00 ex GST
The ALTA Serial MODBUS Gateway is used for connecting a wireless sensor network to a PLC SCADA System.
