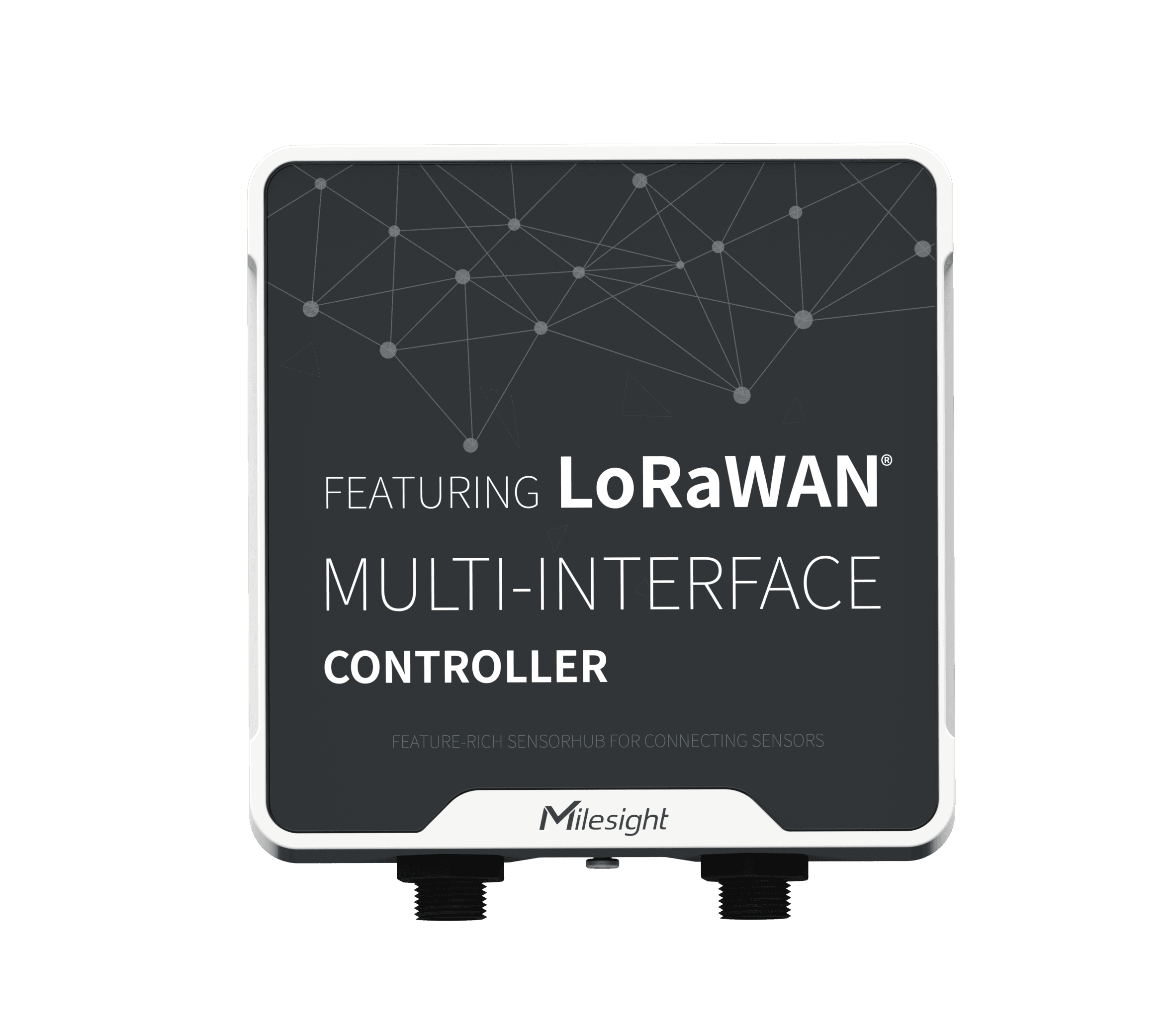

UC50x Series: A Rugged Multi-Interface Controller for Efficient Data Acquisition

The UC50x series serves as a multi-interface controller designed for effective data acquisition from a variety of sensors and equipment. It incorporates a range of I/O interfaces, such as analog input, digital input, digital output, and serial port, which streamline the deployment and replacement process within LoRaWAN® or cellular networks.

Configuration is straightforward and can be accomplished quickly through NFC or a wired USB port. This series is particularly suitable for outdoor applications, offering versatile power options, including a built-in solar panel or a high-capacity battery, to accommodate different energy requirements.

Housed in an IP67-rated enclosure and featuring M12 connectors, the UC50x series provides solid protection against water and dust, making it well-suited for operation in challenging environmental conditions. The series also offers automatic sensor value conversion, eliminating manual calculations, and triggers proactive alerts when sensor readings exceed limits, ensuring efficient data utilisation and monitoring.

Seamless Integration and Reliable Performance with the UC50x Series

Features

• Seamless integration with multiple wired sensors via GPIO, AI, RS232, RS485, and SDI-12 interfaces.
• Robust waterproof construction featuring an IP67-rated enclosure and M12 connectors.
• Optional solar power and built-in battery for versatile energy solutions.
• Local data storage with retransmission capabilities to minimise data loss.
• Effortless wireless configuration using NFC technology.
• Bridge Modbus data between serial and Ethernet networks via LoRaWAN® with Modbus to LoRaWAN® Converter

LoRaWAN Version Exclusives

• Extended wireless transmission range up to 15 km in line-of-sight conditions.
• Fully compliant with standard LoRaWAN® gateways and network servers.
• Simplified management through the Milesight IoT Cloud solution.
• Multicast support for bulk control operations (specific to UC501).

LTE Version Exclusives

• Power-saving cumulative number report functionality.
• Compatibility with multiple network protocols to integrate seamlessly with IoT platforms.

NB-loT & CAT M Versions Available

Stable Transmission: Reliable data transmission via cellular base stations
Low Deployment Cost: Low deployment cost due to the presence of existing cellular base stations
Cumulative Reporting: Accumulate up to 12 data packets in each report saving transmission cost and power consumption
Ultra-high Compatibility: Integrate with various 3rd party platforms through MQTT\TCP\UDP communication.
Support cumulative number report function for power saving
Support multiple network protocols to be compatible with IoT platform

Antenna Flexibility for Enhanced Signal Performance

The UC50x Series offers versatile antenna options, allowing for both internal and external placements to ensure optimal signal strength and extended range, even in environments with obstacles or challenging RF conditions. Please note, while the UC50x is available in both LTE and LoRaWAN® versions, the external antenna option is exclusive to the LoRaWAN® version.

IMPORTANT – Sensor Operation

Please note: For wireless network capabilities, an applicable Gateway is required to utilise the IoT Cloud software as demonstrated below.

Milesight LoRaWAN Gateway Options – Enhancing Connectivity and Efficiency in IoT Networks

A robust gateway is a critical component for seamless connectivity and efficient data transmission. Serving as the bridge between IoT devices and the cloud, Milesight LoRaWAN gateways offer unparalleled performance and versatility.

Choose the Milesight LoRaWAN gateway that best suits your specific requirements, and experience unparalleled connectivity, efficiency, and reliability in your wireless IoT network.

Learn more here >>

Empowering Device-to-Cloud Connection

The Milesight IoT platform seamlessly integrates LoRaWAN® sensors and controllers with the robust security of AWS infrastructure, ensuring your data’s safety. This integration simplifies the monitoring and control of remote assets by transforming real-time and historical data into intuitive dashboard widgets. You can access your projects remotely and stay informed with real-time alerts via email and mobile, ensuring you never miss critical updates. Interact with our Live Demo Dashboard here >>

For a reliable and user-friendly IoT cloud solution, choose Milesight IoT Cloud.

Learn more here >>
