OVERVIEW
New Generation Performant Outdoor LoRaWAN Gateway
UG67 is a robust 8-channel outdoor LoRaWAN® gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG67 supports connection with more than 2000 nodes. UG67 has line of sight up to 15 km and IP67 waterproof case, which is ideally suited to smart agriculture, smart metering and many other outdoor applications. UG67 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment.
IP67 Rating
Featuring IP67 rated enclosure and PoE-PD (Powered Device), the UG67 LoRaWAN gateway is well suited for working in harsh outdoor environment
Outstanding Performance
Outstanding performance makes data processing faster
- 512 MB DDR4 RAM
- 1.5 GHz 64-bit Quad-Core Processor
Supercapacitor
The embedded high-capacity capacitor enables UG67 LoRaWAN gateway to keep working for 1 minute to send an alert while the power outage happens
New Generation of LoRa Chip
Handling a higher amount of traffic with lower power consumption
- Semtech SX1302
- Support SF5 & SF6
Low Power Consumption
The UG67 LoRaWAN gateway offers up to a 50% reduction in power consumption compared to legacy gateways.
- Typical: 2.9w
- Max: 4.8w
High Capacity
Receiving data from 8 end-devices simultaneously Supporting up to 2000 end-devices
Multiple Backhaul Connectivities
Stay Connected via Ethernet, 4G and Wi-Fi to deliver encrypted data around the clock
IOT CLOUD
Empowering Device-to-Cloud Connection
The Milesight IoT platform seamlessly integrates LoRaWAN® sensors and controllers with the robust security of AWS infrastructure, ensuring your data’s safety. This integration simplifies the monitoring and control of remote assets by transforming real-time and historical data into intuitive dashboard widgets. You can access your projects remotely and stay informed with real-time alerts via email and mobile, ensuring you never miss critical updates. Interact with our Live Demo Dashboard here >>
For a reliable and user-friendly IoT cloud solution, choose Milesight IoT Cloud.
Learn more here >>
SPECIFICATION
Hardware System
CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 Memory 512 MB DDR4 RAM Flash 8 GB eMMC LoRaWAN
Antenna Fully Integrated Internal Antenna (Optional: 2 × 50 Ω N-Female External Antenna Connector) Channel 8 Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 Sensitivity -140dBm Sensitivity @292bps Output Power 27dBm Max Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C LBT X Ethernet Interface
Port 1 × RJ45 (PoE PD Supported) Physical Layer 10/100/1000 Base-T (IEEE 802.3) Data Rate Rate 10/100/1000 Mbps (Auto-Sensing) Interface Auto MDI/MDIX Mode Full or Half Duplex (Auto-Sensing) Wi-Fi
Antenna Fully Integrated Internal Antenna Standards IEEE 802.11 b/g/n Tx Power 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
[email protected] GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
[email protected] GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
[email protected] GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
[email protected] GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)Cellular Interface (Optional)
Antenna Fully Integrated and Internal Antenna SIM Slot 1 GPS
Antenna Internal Antenna Sensitivity -167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition Position Accuracy <2.5 m=”” cep=”” br=””> Software
Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2 Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter Management Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud Reliability WAN Failover Power Supply and Consumption
Power Supply 1. 1 × 802.3 af PoE input
2. 1 × 12 VDC with M12 ConnectorConsumption Typical 3.6 W, Max 4.8 W Physical Characteristics
Ingress Protection Protection IP67 Dimensions 250 x 172 x 92 mm Color & Material Mounting Wall or Pole Mounting Others
Reset Button 1 × RST Console Port 1 × Type-C Port LED Indicators 1 × SYS, 1 × LoRa, 1 × LTE Built-in Watchdog, RTC, Timer Certification CE, FCC Environmental
Operating Temperature -40°C to +70°C (-40℉ to +158℉)
Reduced Cellular Performance Above 60°CStorage Temperature -40°C to +85°C (-40℉ to +185℉) Ethernet Isolation 1.5 kV RMS Relative Humidity 0% to 95% (non-condensing) at 25°C/77℉

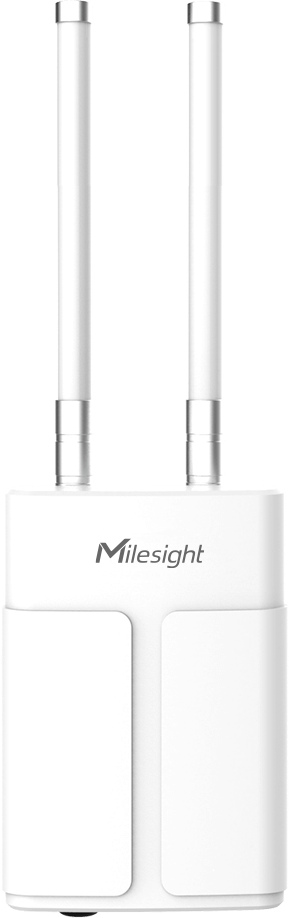

Milesight Outdoor LoRaWAN® Gateway UG67
Price range: $1,066.00 through $1,394.00 ex GST
An Outdoor Gateway comes with Wi-Fi, PoE, Ethernet and 2 x External Antennas as standard. Optional 4G is available. The UG67 is also built with IP67, 8-CH, Wi-Fi / GPS / PoE PD Supported 1 x 10/100/1000Mbps, Built-in Network Server
