Harnessing LoRaWAN® Technology for Advanced Residential Gas Leak Detection and Remote Monitoring Capabilities

The GS101 is a sophisticated LoRaWAN® residential gas detector, designed to provide an advanced solution for detecting natural gas leakage and promptly issuing warnings. When the concentration of gas surpasses the preset threshold due to a leak, the GS101 activates a dual alarm system – a visible LED light alarm and an audible buzzer sound alarm. In addition, it supports output controls to automatically shut off the gas valve and initiate ventilation fans.

Beyond its local alarm capabilities, the GS101 can also transmit both regular device status updates and alarm notifications remotely, thanks to its integration with LoRaWAN® technology. This feature allows for constant, real-time monitoring of the device’s performance.

In synergy with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users gain the ability to monitor sensor data and manage the device from any location, offering a comprehensive visual interface for superior control.

Your Comprehensive Solution for Enhanced Gas Leak Detection and Management

Features

• Integrated with a long-lasting semiconductor gas detection sensor, offering a lifespan of 5 years and requiring no calibration

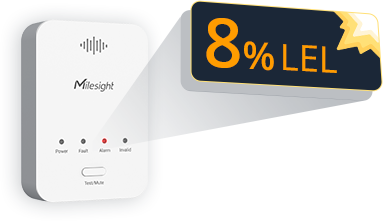

• Highly sensitive to gas leaks, supporting an alarm threshold of 8% LEL

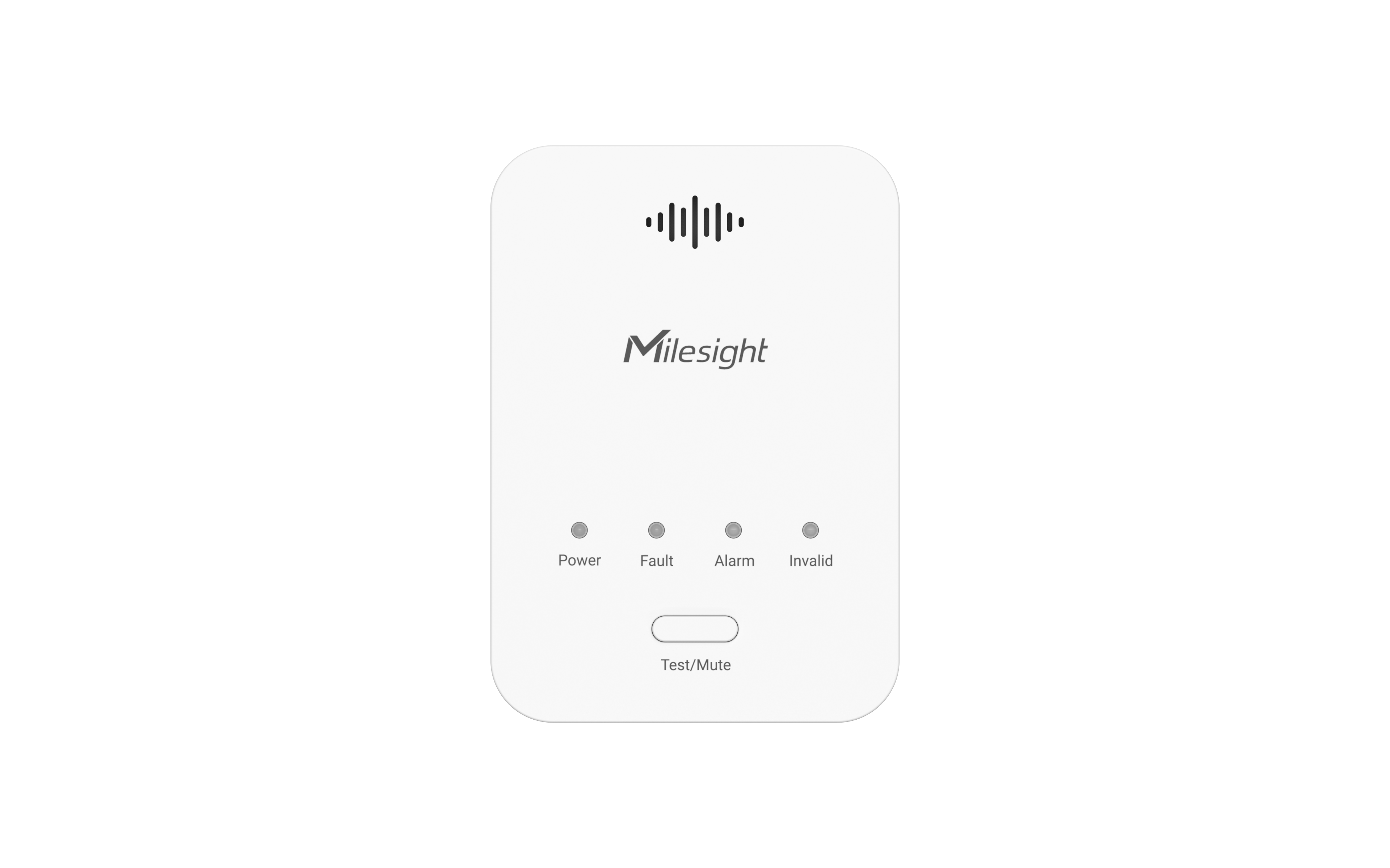

• Enhanced with audible buzzer and visual light indicators to denote various device statuses such as powered, faulty, alarmed, and invalid
• Features a test button for swift verification of the device’s operational status
• Equipped with outputs that control external appliances like gas valves and ventilation fans
• Capable of locally storing up to 800 historical records across 7 categories, with no option for reset
• Includes built-in NFC for streamlined configuration
• Fully compatible with standard LoRaWAN® gateways and network servers
• Enables efficient management through the Milesight IoT Cloud solution.

IMPORTANT: This product should be used with the understanding that it is not intended as a life-saving device. While it may have various useful applications, its primary purpose is not for situations where human life is at risk. Please exercise caution and use it for its intended purpose.

Comprehensive Methane Detection – Rapid Response and Multifaceted Alert System

The Milesight GS101 is a LoRaWAN® residential gas detector designed to provide comprehensive detection and alerting in various residential settings such as houses, apartments, and hotels. The gas detector features an ultra safe gas alarm threshold as low as 8% Lower Explosive Limit (LEL), ensuring rapid alerts. Additionally, it comes with a triple safety measure system that includes four LED alarm indicators for different statuses (powered, faulty, alarmed, and invalid), an 85dB buzzer alarm for audible warnings upon methane leakage detection, and the ability to send remote alerts via LoRaWAN® when gas leakage is detected.

Streamlining Indoor Comfort and Control – Event Trigger Features and Self-Test Functionality

The LoRaWAN® gas sensor provides advanced control over external appliances like gas valves and vent fans, courtesy of its relay output and solenoid valve output. *Note: The fan and valve can be operated simultaneously.
In addition to this, the device is equipped with a self-test function, ensuring its consistent and reliable operation. For added convenience, the buzzer alarm can be manually silenced, contributing to a more peaceful and comfortable home environment.

IMPORTANT – Sensor Operation

Please note: For wireless network capabilities, an applicable Gateway is required to utilise the IoT Cloud software as demonstrated below.

Milesight LoRaWAN Gateway Options – Enhancing Connectivity and Efficiency in IoT Networks

A robust gateway is a critical component for seamless connectivity and efficient data transmission. Serving as the bridge between IoT devices and the cloud, Milesight LoRaWAN gateways offer unparalleled performance and versatility.

Choose the Milesight LoRaWAN gateway that best suits your specific requirements, and experience unparalleled connectivity, efficiency, and reliability in your wireless IoT network.

Learn more here >>

Empowering Device-to-Cloud Connection

The Milesight IoT platform seamlessly integrates LoRaWAN® sensors and controllers with the robust security of AWS infrastructure, ensuring your data’s safety. This integration simplifies the monitoring and control of remote assets by transforming real-time and historical data into intuitive dashboard widgets. You can access your projects remotely and stay informed with real-time alerts via email and mobile, ensuring you never miss critical updates. Interact with our Live Demo Dashboard here >>

For a reliable and user-friendly IoT cloud solution, choose Milesight IoT Cloud.

Learn more here >>
