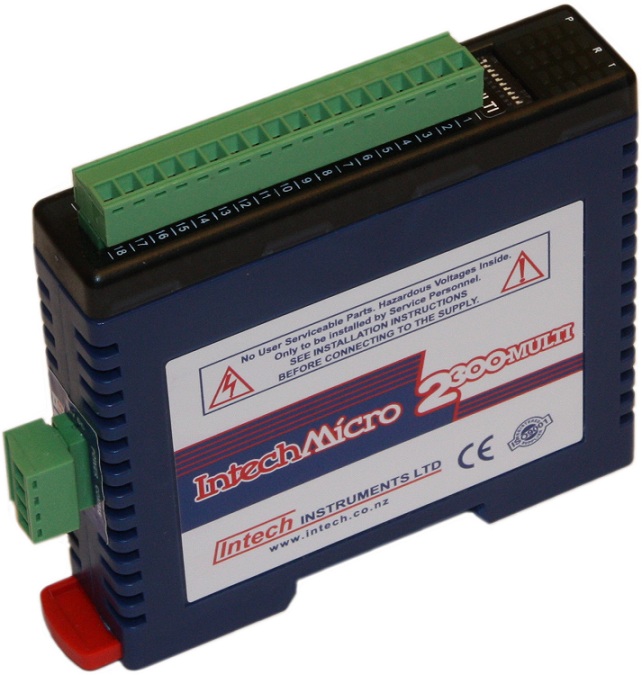

The Intech Micro 2300 series is a system of modular I/O Remote Stations, that add an even lower cost option to Intech’s already extensive intelligent I/O Remote Station family, which connect automatically to the Intech MicroScan V5 logging plus SCADA software package.

The 2300 series I/O stations are made up of stand-alone Digital and Analogue—Input/Output stations. Communications between the computer running MicroScan V5 and the 2300 series stations is RS485 (1 pair cable) multi drop as standard with an option for TCP.

A 32bit ARM CPU is used in the 2300 series stations to provide high speed data processing and fast communications turn around times. All 2300 series stations have been equipped with status led’s which are used to indicate the status of the Inputs or Outputs. This visual indication assists with fault finding and diagnostics.

All the I/O stations clip directly onto an industry standard DIN rail. All stations have a minimum isolation of 1000Vac rms between the field and logic.

Features:

• Low Cost I/O Remote Stations
• Modbus RTU with Modbus TCP option
• MicroScan V5 Compatible—Seamless Integration
• Also ideal for use when inputs/outputs are required for a PLC and Modbus comms are available
• Plug-in connectors makes replacement easy
• Programmable Ranges within input type
• 1.0 KV or greater Isolation
• 0.2% Accuracy (12 Bit)
• Compact DIN rail mount Enclosure
• LEDs indicate I/O status plus comms and Power Supply
• Comms Fail Alarm (Optional)
• Power Supply: 24Vdc
• Also available as a complete package including our powerful MicroScan V5 software, RS485 Comms Converter and 24Vdc Power Supply – the Mini Pack 8

Model information and specs can be found in the product brochure linked below.
