OVERVIEW

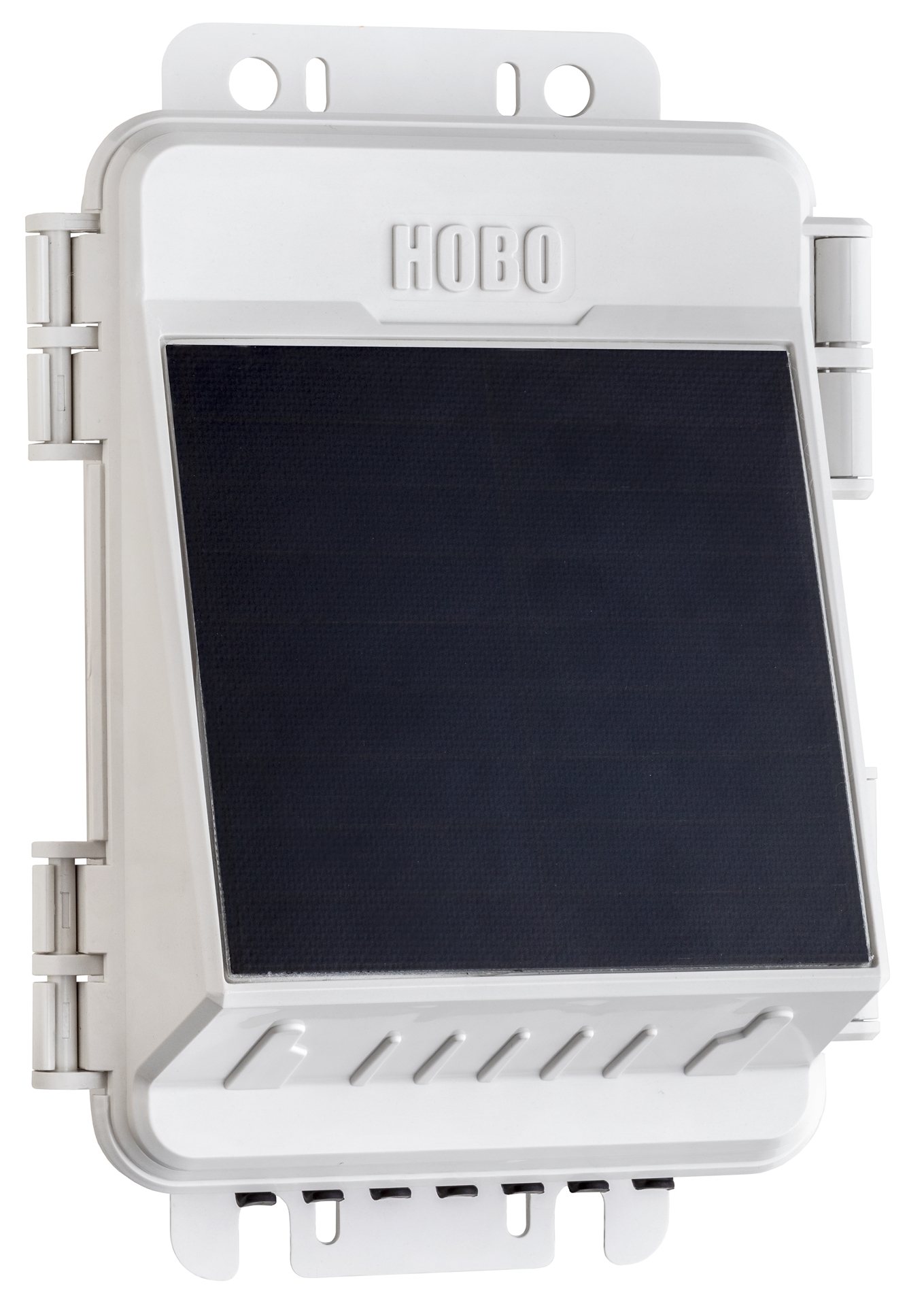

The compact HOBO MicroRX Station is an easy-to-deploy, low-cost cellular solution for long-term, reliable monitoring of indoor and outdoor conditions in warehouses, cold storage facilities, data centers, museums, commercial and residential buildings, fields, crops and more. The station includes an integrated HOBOnet Manager, for easy deployment with wireless HOBOnet sensors. The station also features inputs for up to five of HOBO’s research-grade plug-and-play sensors. Configurable station-side alarms trigger immediate notifications of critical conditions, and LI-COR Cloud IoT platform (formerly HOBOlink) makes it easy to view, access, and share data.
Protect your Investment with the Low Cost HOBO MicroRX Station
Highlighted Features
- Compact size and integrated HOBOnet Manager for easy deployment
- Scalable, with option to connect up to 50 wireless sensors; 600 m line-of-sight range
- Inputs for five plug-and-play sensors
- Includes AC power adapter and user-replaceable AA lithium batteries for battery back-up
- Built-in LCD confirms proper setup and operation
- Up to 10-minute connection rates via 4G cellular data plans
- Cloud-based monitoring and data access through LI-COR’s Cloud IoT platform
- Integrated mounting tabs for use with screws, zip ties, or U-bolts
- Solar Powered option is available
What measurements does this data logger support?
The RX2100 supports the following measurements: Absolute Pressure, 4-20mA, AC Current, AC Voltage, Amp Hour (Ah), Barometric Pressure, DC Voltage, Dew Point, Evapotranspiration, Kilowatt Hours (kWh), Leaf Wetness, Light Intensity, PAR, Power Factor (PF), Pulse Input, Rainfall, Relative Humidity, Soil Moisture, Solar Radiation, Temperature, Volt-Amp Reactive hour, Water Flow, Water Level, Watt Hours (Wh), Watts (W) and Wind
LI-COR CLOUD (formerly HOBOLINK)
A comprehensive cloud environmental monitoring platform for HOBO RX products, LI-COR Cloud IoT Platform (formerly HOBOlink) integrates near real-time, research-grade environmental data from RX stations into its single, intuitive platform’s robust tools.
Not sure which plan is right for you? For RX Devices, you can choose between three plans:
RX-BASIC RX-STANDARD RX-PREMIUM Description Value plan for up to 10 measurements with longer logging intervals Advanced monitoring capability with standard sensor support Advanced monitoring capability with best sensor support Max # of Measurements 10 25 Supports max sensors for each device added Fastest Logging Interval Every Hour Every 5 Minutes Supports each device’s max logging rate Remote access and monitoring via HOBOlink Included Included Included SPECIFICATIONS
RX2105
MicroRX Battery Powered
RX2106
MicroRX Solar Powered
Operating Range -40° to 60°C (-40° to 140°F) -20° to 60°C (-4° to 140°F) Smart Sensor Connectors 5 Smart Sensor Network Cable Length 100 m (328 ft) maximum Smart Sensor Data Channels Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details) Logging Rate 1 minute to 18 hours Time Accuracy ±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) rangeBattery Type/Power Source 6 AA 1.5 V lithium batteries or AC power adapter (P-AC-1) 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel Battery Life/Power Source Runs continuously with the included AC adapter. Batteries can be used as a backup to AC power; battery life of 3 months with 1 minute logging and daily connections or 2 months with 1 minute logging and hourly connections, and with approximately 10 motes.
Note: Deployments in areas with weak cellular strength could reduce battery life.
Typical 3–5 years when operated in the temperature range -20° to 40°C (-4° to 104°F); operation outside this range will reduce the battery service life. Maximum connection rates with built-in solar panel, in full sun:
- 10 minute connections year round for latitudes less than ±40°
- 10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter
Maximum connection rates with external 5W or 15W solar panels:
- 10 minute connections year round, in full sun
- Connection rate with external solar panels may be less if deployed in partial sun
Battery life without solar recharging, with hourly connections and
1 minute logging:- RX2106: 3 months
Memory 16 MB, 1 million measurements, continuous logging Alarm Notification Latency Logging interval plus 2–4 minutes, typical Enclosure Access Hinged door secured by two latches with eyelets for use with user-supplied padlocks LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range Materials Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene™ TPE; U-Bolts (not included): Steel with zinc dichromate finish Dimensions 19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.); see diagrams at left Weight 678 g (23.9 oz) Mounting Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws Environmental Rating Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system) Wireless Radio GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHzAntenna 4G LTE CE Compliant The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) COMPATIBLE SENSORS
Explore HOBO’s wired and wireless sensors designed to work seamlessly with the HOBOnet MicroRX Stations. From monitoring temperature to tracking rainfall and more, these sensors provide the flexibility to meet your specific needs.
Discover the full range of sensors and expand your capabilities today >>
HOBOnet MicroRX Station
$2,529.00 ex GST
The compact HOBO MicroRX Station is an easy-to-deploy, low-cost cellular solution for long-term, reliable monitoring of indoor and outdoor conditions. The station includes an integrated HOBOnet Manager for easy deployment with wireless HOBOnet sensors.
