OVERVIEW
Find fault areas and wasted heat energy instantly
This non-contact thermal imaging camera helps you instantly pinpoint overheating components on a circuit board, identify any areas of wasted heat energy, or spot any thermal insulation gaps in equipment or a building. To operate, simply point the camera to the region you want to test and see the warm components or areas show up as yellow, orange or red, and cool areas as blue and green on the 2.4inch display. Press the trigger to save a snapshot to the memory card, and simply connect it to a PC via the USB cable to download the images. Measures temperatures between -20°C to 400°C.
Features
- 120×90 IR resolution
- Large 2.4inch (240x320px) Display
- Up to 5 hours run time per charge
- Fast charge via type C
- IP54 Rated
-
SPECIFICATIONS
Detector Type VOx Infrared Resolution 120 – 90 @17μm Wavelength Range 7.5 to 14μm Focal Length 2.28mm Field of view 50° – 38° Minimum Object Distance 0.5m D:S 130:1 NETD ≤60 mK Infrared Frame Rate 25Hz / 9Hz Focussing Mode Focus-free Measurement Range Support auto-switching: -20°C to 150°C, 100°C to 400°C Measurement Accuracy +-2°C Contains Button Cell false Length 194mm Width 61.5mm Height 76mm Weight 350g

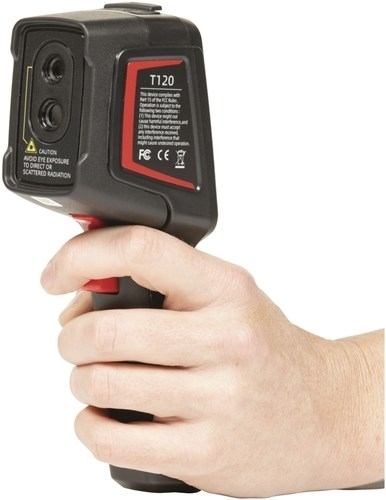

Handheld Thermal Imaging Camera (-20 to 400°C)
$720.00 ex GST
This non-contact thermal imaging camera helps you instantly pinpoint overheating components on a circuit board, identify any areas of wasted heat energy, or spot any thermal insulation gaps in equipment or a building.
