Monitor, control, automate and consolidate any industrial devices

The ezeio mkII IIoT Monitoring and Controlling System is the perfect solution for businesses looking to consolidate remote industrial devices, equipment, and systems. This innovative monitoring, recording and controlling system consists of both hardware and software components that work together to enable you to connect sensors, monitor data remotely, log results, set alarms, control events, and automate applications. Additionally, the ezeio mkII comes equipped with Modbus RTU/TCP, SDI-12 and CAN connectivity as well as analog and digital inputs/outputs.

Staying in control of your assets regardless of how remote they are has never been easier thanks to this advanced solution from eze System. With its secure cloud monitoring software you can create customised dashboards across multiple systems. You can also take advantage of trigger settings which will alert you the minute something goes wrong; customise control options such as intelligent scheduling; and generate detailed reports from recorded data dynamically for analysis.

Take full advantage of the latest technologies – harness the power of the ezeio mkII IIoT Monitoring and Controlling System today!

Key features

• Remote data logger & controller
• Secure management and consolidation through cloud back end
• Analog, Pulse, Modbus RTU/TCP, CAN and SDI-12 compatible
• Monitor, Log, Alarm, Control and Automate – fully remote management

ezeio mkII Hardware

Combining Hardware & Software making IIoT work.

100% remotely managed, configured & synchronised.

• Input/Output Unit
• Data Logger
• Modem (LTE Cat M1) & Gateway
• PLC (edge processing)
• System Functionality

Kit Contains

• 1 x ezeio mkII Controller
• 1 x High Gain LTE Antenna
• 1 x Antenna Bracket suitable for top or side panel mounting.
• 1 x SIM LTE Cat M1 Data and web portal software plan for 12 Months (Required for operation)

PLEASE NOTE: Ongoing fees for the installed SIM LTE Cat M1 and Portal Access Plan apply

ezeio mkII Cloud Software & User Interface

The ezeio Cloud is a highly optimised solution for the automated synchronisation of the entire deployed ezeio Hardware units. It’s the core architecture which make the system highly secure, fully redundant and greatly scalable from one user with a single ezeio to enterprise level deployments with thousands of field devices and users. The ezeio User Interface is the single hub for all of the users technical and managerial needs. Any number of ezeio Hardware units can be accessed by as many users as needed.

• Account Management
• Configuration Management
• Scripting Editor
• Live status
• Dashboards
• Alarms & Notifications
• Timers & Schedules
• Mapping & Geofencing

Compatible I/O Expansion Modules

PROMUX is an innovative modular I/O system which provides a simple low cost solution for distributed I/O requirements.

The PROMUX system consists of stand-alone Digital and Analog Input and Output modules which are connected together on a RS485 two wire multi-drop network. The modules communicate using the MODBUS RTU protocol.

A 32bit ARM CPU is used in the modules to provide high speed data processing and fast communications turn around times. Multiple baud rates are selectable from 2400 to 115200 baud.

All PROMUX modules plug directly onto an industry standard DIN rail. All modules have a minimum isolation of 1000VAC rms between the field and logic. The modules have been equipped with status led’s which are used to indicate the status of the Inputs or outputs. This visual indication assists with fault finding and diagnostics.

See the full range here >>

Power Monitoring Modules

Designed for easy customisation for nearly any application or type of equipment, the WattNode Module provides bidirectional energy and power readings via an RS-485 port using Modbus RTU communications.

See the Wattnode Modules here >>

The ezeio mkII Cloud Software – 100% remotely managed with total control for the user

The powerful ezeio User Interface

One “hub” for all technical & managerial user needs.
Through the ezeio User Interface, users can access any number of ezeio Hardware units based on their individual access permissions. Every system feature and functionality is 100% managed through the web portal. This improves the security benefits too as there is no other way to interact with the system … not remotely, not locally on the hardware level, only through the web portal!

• Account Management
• Configuration Management
• Scripting Editor
• Live status
• Dashboards
• Alarms & Notifications
• Timers & Schedules
• Mapping & Geofencing

Group & account management

Create any numbers of accounts & groups.

• The group & account functionality is a powerful managerial tool that allows you to structure your system classifications in many ways including; by location, by type of equipment, by business unit or you can map your own commercial ecosystem.
• There are no upper limits for creating groups and accounts as well as levels within the tree structure.

User management & permissions

A very unique system for managing the access rights for every single user.

• The user management and permissions system within the ezeio environment allows you to invite users into any specific group/account with specific access restrictions.
• Users can be invited into various groups and accounts individually.
• The permissions system gives the option to assign specific access rights for each individual user so they only have access for their specific needs/assignments. Additionally, a single user can have different permissions in different groups and accounts.
• The permissions can range from very limited “view only” access to full administrator rights.

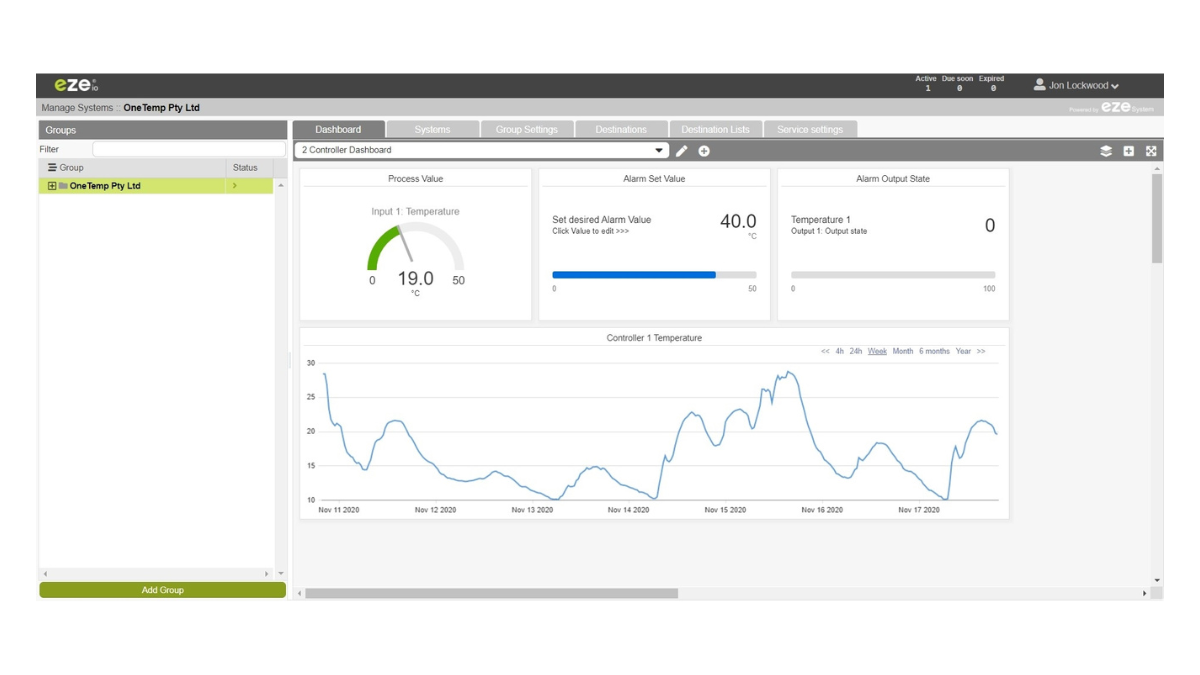

Dashboard & widgets

Customised data visualisation for just sensors or whole applications and systems.
The dashboards can be easily created based on predefined widgets. There are no limits set in terms of dashboard sizes or the number of widgets used. Widgets can be simple such as dials and graphs, through to powerful applications in itself with control and automation functionalities (“Super Widgets”). They are either used from the standard ezeio library or can be created by eze System for a company’s specific requirements. Here are some examples of the widget types:

• Field value/text widgets
• Dials/gauge widgets
• Graphs widgets
• Tables widgets
• Push/sliding button widgets
• Clock/date widgets
• Map widgets with geofencing details
• Aggregation “Super Widgets” (in table or map form) for the consolidation of deployments, applications and systems
• Scheduling “Super Widget”

The above widget types can be combined into newly created widgets for customisation purposes by the eze System development team, providing full flexibility for creating new custom applications.

The unique ezeio configuration management system

Total control of every single ezeio system.
The configuration management system is the “heart” of the ezeio mkII System. It gives 100% control of the configurations for every deployed ezeio mkII Hardware from simple settings to complex scripting. The current configuration management components are:

• System status overview
• Fields overview & management
• Alarms & notification configuration
• Timers configuration
• Schedule configuration
• Calendar configuration
• Device/driver overview & management
• User scripting management

All configuration updates within the system are fully automated and synchronised. Even offline, ezeio mkII hardware units are managed automatically. They will be updated with the latest configuration whenever they are again online. These features free up the users to focus on their core work.
