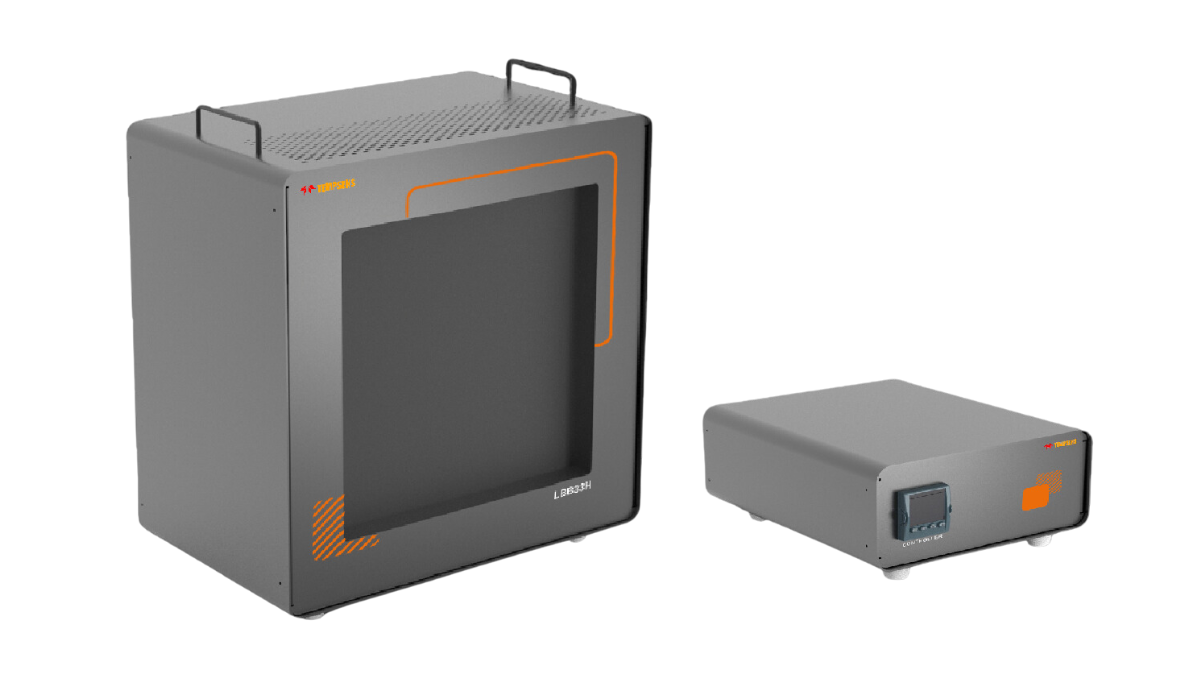

Extended area black body is defined by the large emitting surface area precise temperature control with good uniformity. Tempsens make Blackbodies are state of the art, highly accurate, and stable with different standard sizes and temperature ranges. The LBBCH Series Extended Area blackbodies are low-temperature infrared reference sources operating either in absolute or differential mode.

This Blackbody series featuring very high stability, they are particularly well adapted for the characterization and performance validation of a very wide range of IR Sensors, such as high-resolution cameras for Thermography and long-range thermal imagers. Essentially the black body emits a known amount of energy for an infinite number of wavelengths. This enables us to draw the expected black body radiation curve for a given temperature. Temperature is accurately controlled by High accurate PID self-tuning controller.

With the Tempsens make Compact Extended Area Black body Temperature Calibrator, you have chosen an extremely effective instrument that we hope will live up to all your expectations. This is a fast, timesaving, and reliable true industrial temperature calibrator designed for on-site use.During the past several years, we have acquired extensive knowledge of industrial temperature calibration. This expertise is reflected in our products which are all designed for daily use in an industrial environment.

Key Features:

• Independent Controller with Real-time display and Calibration data.
• Quick and convenient calibration technique.
• Serial communication and computer interfacing by RS-232 Port.
• Absolute temperature Range 0°C to 110°C.



Parameter	LBB11CH	LBB22CH	LBB33CH
Emissive area	100 x 100 mm²	200 x 200 mm²	300 x 300 mm²
Temperature range (Standard)	10°C to 110°C
Temperature range (Optional)	0°C to 110°C
Emissive area uniformity (1)	±1% @(T-Tmax)
Emissivity	0.98±0.02
Stability	±0.01°C
Temperature measurement Accuracy	±0.3°C
Display resolution	0.01°C
Method of control	Digital self tuned PID Controller
Head dimensions W x H x D (mm³)	300 X 320 X 190 mm	550 x 550 x 260 mm	550 x 550 x 260 mm
Weight	15 kg	25 kg	35 kg
Max. power consumption	1 K W	1.5 K W	2 K W
Power supply	230 VAC, 1 ph. 50 Hz 2	230 VAC, 1 ph. 50 Hz	230 VAC, 1 ph. 50 Hz
Remote control	Ethernet, RS-232	Ethernet, RS-232	Ethernet, RS-232
Operating temperature range (head)	5°C to +25°C	5°C to +25°C	5°C to +25°C

*1 at 80% of emissive area
