The Future of Indoor Environment Monitoring with AM102(L) – Precision, Versatility, and Longevity at Your Fingertips.

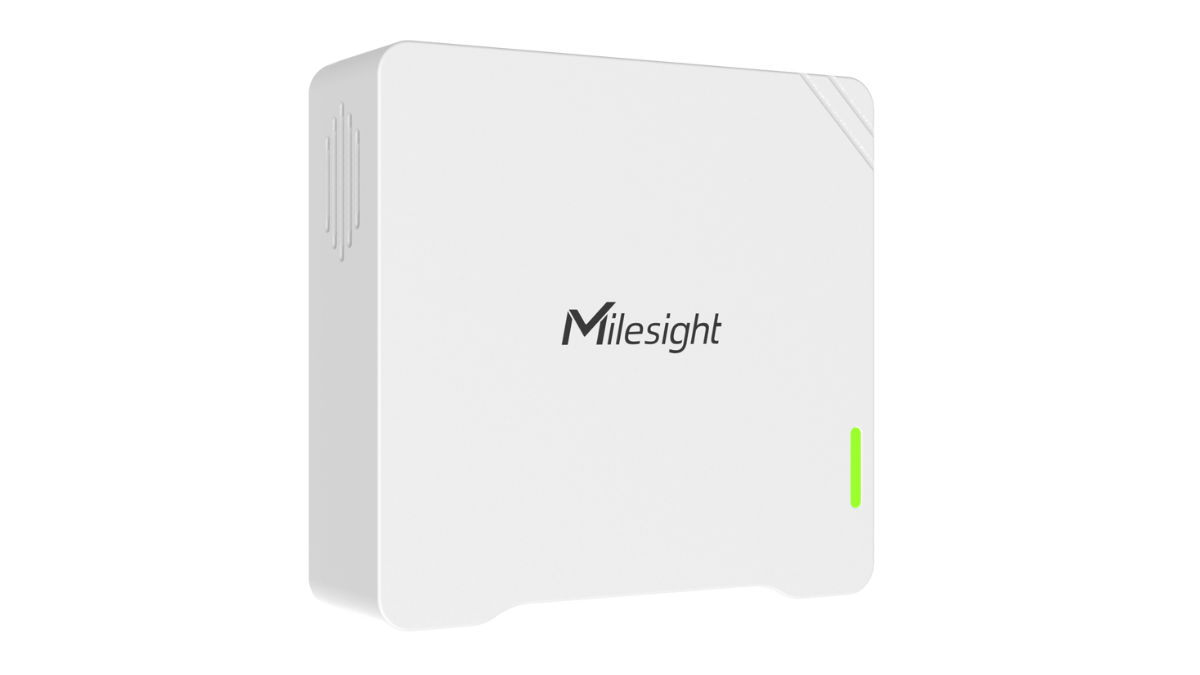

The AM102(L) is a cutting-edge indoor ambience monitoring sensor meticulously engineered to measure temperature and humidity. Available with or without an E-ink display, this versatile device is perfect for maintaining ideal indoor conditions across various settings, from offices and stores to classrooms and hospitals.

When equipped with the E-ink display, the AM102 showcases real-time data, allowing users to instantly gauge the quality and comfort of their indoor environment. The screen’s sharp and clear visuals ensure easy readability, enhancing user experience. Notably, it features a Smart Screen Mode that activates when readings are stable, conserving energy and offering customisable refresh intervals.

Moreover, the AM102(L) is more than just a display unit. It leverages LoRaWAN®, a low-power, long-range technology, to transmit sensor data, promising over seven years of reliable performance with just two replaceable batteries. For periods of extended non-use, it offers a Hibernation Mode that significantly reduces power consumption by suspending data collection, yet still allowing LoRa uplink activation.

Paired with the Milesight LoRaWAN® gateway and IoT Cloud solution, the AM102(L) delivers a comprehensive system for remote monitoring and adjustment of indoor conditions at any time, from anywhere. Whether with or without a display, the AM102(L) stands as a potent instrument for enhancing comfort, safety, and efficiency in your indoor environments. Experience the difference today.

Step into the future of Ambient Monitoring with AM102(L) – Your key to a more comfortable, and efficient Indoor Environment

Features

• Employs Sensirion’s high-precision sensor for detecting subtle shifts in temperature and humidity.
• Optional E-ink screen for easy visualisation of environmental data.
• Can locally store up to 1280 historical records and supports retransmission to avoid data loss.
• Includes built-in NFC for effortless configuration.
• Compatible with standard LoRaWAN® gateways and network servers.
• Simplifies management through the Milesight IoT Cloud solution.
• Monitors both temperature and humidity.
• Offers a traffic light status indicator for easy monitoring.
• Offers wireless installation coupled with anti-theft protection.
• Comes with a hibernation mode to minimise power consumption (specific to AM102).
• Provides extended battery life, lasting up to 7 years (AM102) or 9 years (AM102L).

Energy Efficiency with Smart Screen Mode

The AM102 features a Smart Screen Mode that is designed to conserve energy. This mode is activated when the latest monitored value is closely similar to the preceding one. This occurs when readings are within a certain range (temperature ≤ ±0.5°C, humidity ≤ ±3%, and CO2 ≤ ±50 ppm). Additionally, when this mode is enabled, the minimum refresh interval can be customised, ranging from 2 to 1080 minutes, further enhancing energy efficiency.

Ultra-Low Power Consumption in Hibernation Mode

Designed for periods of extended non-use, the Hibernation Mode significantly reduces power consumption. This mode uses less power than the Smart Screen Mode as it automatically suspends data collection. However, users have the flexibility to enable the LoRa uplink while in hibernation mode. In this scenario, the screen will continue to display the hibernation mode status, but this is solely to reduce screen power consumption.

Long-lasting Battery Life

The device incorporates two inbuilt 2700 mAh ER14505 Li-SOCL2 replaceable batteries, providing an impressive battery life of up to 7 years for the AM102 models and up to 9 years for the AM102L models.

IMPORTANT – Sensor Operation

Please note: For wireless network capabilities, an applicable Gateway is required to utilise the IoT Cloud software as demonstrated below.

Milesight LoRaWAN Gateway Options – Enhancing Connectivity and Efficiency in IoT Networks

A robust gateway is a critical component for seamless connectivity and efficient data transmission. Serving as the bridge between IoT devices and the cloud, Milesight LoRaWAN gateways offer unparalleled performance and versatility.

Choose the Milesight LoRaWAN gateway that best suits your specific requirements, and experience unparalleled connectivity, efficiency, and reliability in your wireless IoT network.

Learn more here >>

Empowering Device-to-Cloud Connection

The Milesight IoT platform seamlessly integrates LoRaWAN® sensors and controllers with the robust security of AWS infrastructure, ensuring your data’s safety. This integration simplifies the monitoring and control of remote assets by transforming real-time and historical data into intuitive dashboard widgets. You can access your projects remotely and stay informed with real-time alerts via email and mobile, ensuring you never miss critical updates. Interact with our Live Demo Dashboard here >>

For a reliable and user-friendly IoT cloud solution, choose Milesight IoT Cloud.

Learn more here >>
