OVERVIEW
Achieve high precision, fast response, and excellent stability

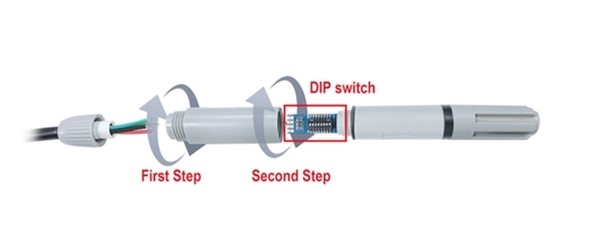

Introducing the Tzone THT02 – a wall-mounted temperature & relative humidity transmitter that is perfect for maintaining accuracy in a range of HVAC management applications.
With Swiss “SEMSIRON” temperature and humidity sensor technology, this device offers high precision, fast response, and excellent stability. Plus, it supports RS485 Modbus-RTU communication protocol allowing HVAC managers to quickly check the temperature and humidity of the environment from one central location.
The Tzone THT02 is an ideal solution for accurate temperature and humidity measurement in HVAC, communication field, warehouse building and automatic control applications.
Features
- Supports RS485 Modbus-RTU communication protocol
- Swiss ‘SEMSIRON’ temp and humidity sensor
- Wall mounted
Important Information – Certificate of Validation
The validation certificate supplied with this instrument is from date of manufacture, therefore due to receipt of goods time and shelf time may be partly or fully expired.
It is deemed by OneTemp Pty Ltd that this instrument is not supplied with current certificates of validation. If you need current certificates, please discuss the options we have available before ordering.
-
SPECIFICATIONS
Temperature Meaurement Range -40°C to 120°C Temperature Accuracy ±0.2°C @ 25°C Humidity Measurement Range 0%RH – 95%RH Humidity Accuracy ±2%RH @ 3%RH Transmission Mode RS485 Modbus-RTU Product Dimension 140mm*16mm Product Power Consumption 5mA (typical value), 8mA (maximum value) Power Supply DC 5-36V Output Signal RS485 Modbus-RTU Working Environment -40°C – 85°C / 0%RH – 95%RH (non-condensing) Transmission Rate 4800bps / 9600bps / 19200bps Optional Transmission Distance The standard maximum transmission distance is about 1200 meters (depending on the use environment, transmission material and transmission rate) Waterproof Level IP65
TZone THT02 – Temp & RH Transmitter (RS485)
$81.00 ex GST
The THT02 is a wall mounted Temperature and RH Transmitter. This device supports RS485 Modbus-RTU communication protocol for easy integration within existing systems.
