Get Simple Temperature Control with the JUMO miroTRON

The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement input for RTD temperature probes. In the 60 mm and 80 mm round installation format, the JUMO miroTRON offers an alternative solution for mechanical dial thermometers or contact dial thermometers.

The electronic thermostat can be used as a heating or cooling thermostat or optionally as a PID two-state controller. It acquires the process variables via an RTD temperature probe. When used as a PID two-state controller, the controller structures P, I, PD, PI, and PID are possible. The device is equipped with a relay output (16 A).

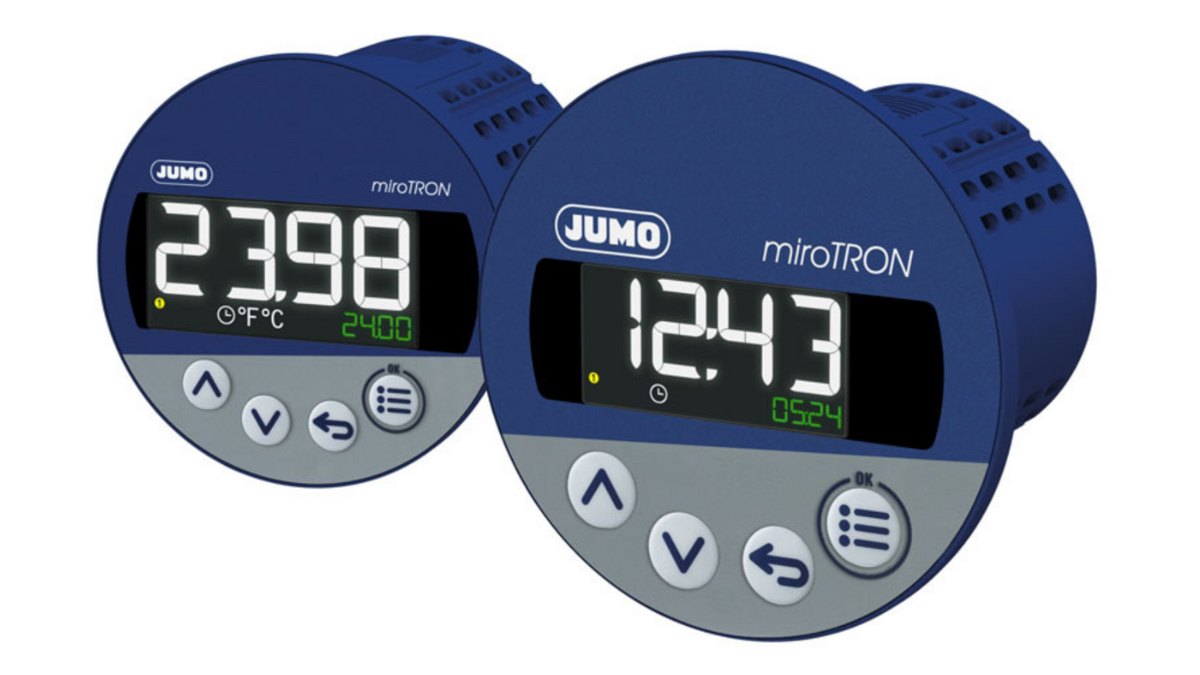

The difference between the two types of devices is the diameter of the front panel: Type 701090 Ø 60.5 mm, Type 701091 Ø 80.5 mm. The round housing design allows the device to be used wherever round dial instruments were previously in use.

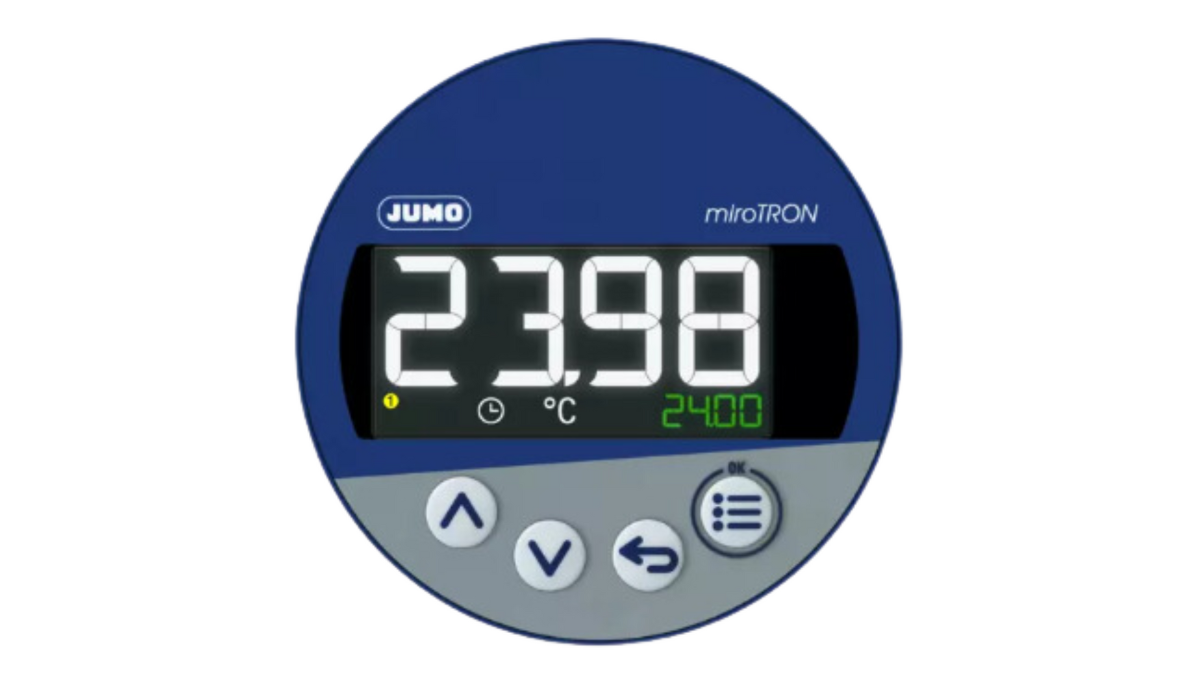

The device is characterized by simple, clearly structured operation supported by texts in English, German, French, and Spanish. Process values, texts, and parameters are shown in two 18-segment LCD displays. Additional display elements inform about the switch position of the output, the timer status, and temperature unit.

Pluggable terminal strips with PUSH IN technology enable fast electrical installation.

Operation, parameterization, and configuration are carried out via a membrane keyboard with four keys. The setup program on a PC allows the device to be configured without any problems. No separate voltage supply is required when configuring via the USB interface (USB-powered).

Features

• Flexible application for simple temperature controls
• Clear text-supported operation, parameterisation, configuration in 4 device languages
• Visualisation of process information via message texts
• Convenient quick configuration via USB interface
• Retrofit of mechanical dial thermometers and contact dial thermometers possible

Other Advantages

• Intuitive startup and operation
• High degree of control quality due to optional PID autotuning
• Integrated timer function, service and operating hours counter
• Cost-effective solution for simple control applications
• Available in round and square housing design



Measurement inputs	RTD temperature probe
Outputs	1 relay (normally open contact)
Voltage supply	AC 230 V, +10/-15 %, 48 to 63 Hz, AC 115 V, +10/-15 %, 48 to 63 Hz, DC 12 to 24 V, +15/-15 %
Formats	701090: (Ø 60 × 80) mm; 701091: (Ø 80 × 80) mm
Approval	cULus
Special Features	Intuitive startup and operation, high degree of control quality due to optional PID autotuning, integrated timer function, service and operating hours counter, cost-effective solution for simple control applications

Full specifications can be found on the products Data Sheet
