OVERVIEW
Humidity and temperature transmitter with optional CO2 module in indoor version
This humidity and temperature transmitter with optional CO2 module works with the capacitive measurement method. The room version is suitable for indoor use (e.g. offices, residential premises, etc.). The humidity measuring device is available with various interfaces. It is characterised by ease of installation and reliable sensor technology.
Applications
- Facility management
- Climate monitoring
- Public indoor spaces
- Office rooms
Key Features
- Ease of assembly
- Robustness
- Multisensor
Reliable Multisensor for Indoor Air Quality Monitoring
The device monitors the quality of the ambient air using the measurands of relative humidity, temperature, and carbon dioxide (CO2) as an optional extra. The device is suitable for wall mounting in indoor spaces.
The device communicates with the JUMO setup program via USB. An RS485 interface is also available.
The process values of the measurands can be displayed on the optional display and issued to a higher-level system via the outputs.
-
SPECIFICATIONS
Measuring range 0 to 100 % RH Accuracy relative humidity 2 % RH (at 25 °C) Operating temperature -5 to +55 °C Accuracy temperature 0.2 K (at 25 °C) CO2 measuring range 400 to 5000 ppm Accuracy CO2 50 ppm +/- 5 % from the measured value (at 25 °C and 1013 mbar) Voltage supply 24 V DC, +/-33 % Protection type IP20 Vibration/shock Industrial applications EMV interference emission Class B EMV interference immunity Industrial requirements Interfaces Voltage and current output, Modbus

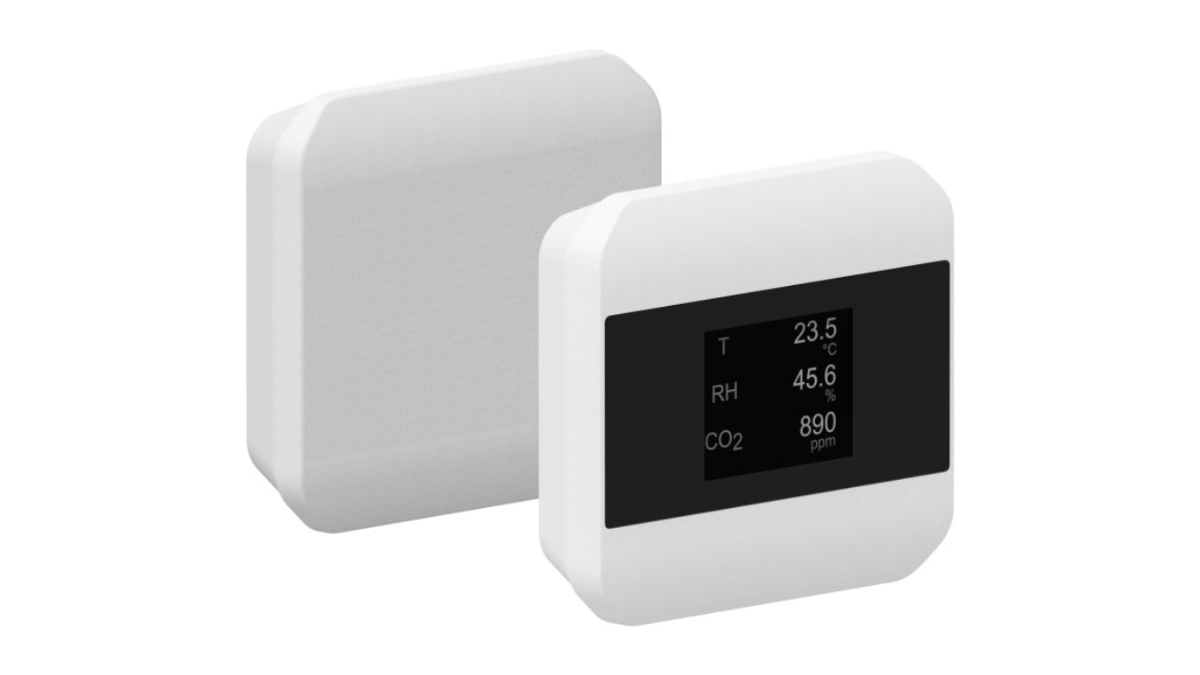

JUMO hydroTRANS S10 Humidity & CO2 Sensor
A robust and easy-to-assemble indoor transmitter for monitoring humidity, temperature, and optional CO2 levels. Ideal for offices and public spaces, it features reliable sensor technology, multiple interfaces, and optional display integration. Wall-mountable and versatile, it ensures precise air quality monitoring with seamless system connectivity.
