OVERVIEW

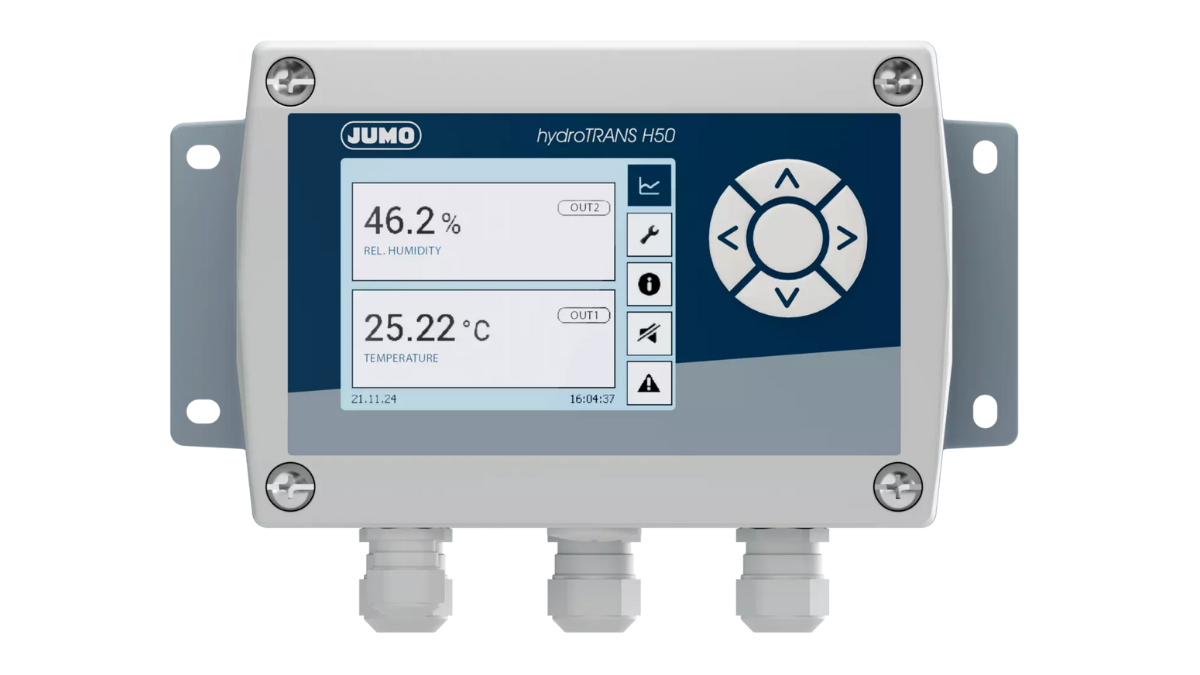

Accurate monitoring of humidity and temperature is essential in industrial environments. The JUMO hydroTRANS H50 delivers stable and precise measurements of relative humidity (RH) and temperature (T) across a wide range of conditions. Its measurement range of -80 °C to +180 °C and ability to withstand pressures up to 300 bar make it suitable for a variety of demanding industrial applications.
Key Benefits for Your Operation:
- Energy and Cost Savings: Precise monitoring helps optimise energy use and lower costs.
- Reduced Hardware Costs: Integrated data logger removes the need for extra devices.
- Rapid Process Response: Timely data access enables fast decisions.
- Extended Operating Life: Durable design delivers long-term reliability.
- Minimised Downtime: Replaceable probes simplify maintenance and startup.
Advanced Features for Superior Measurement Performance
The JUMO hydroTRANS H50 is packed with features designed to meet the highest demands of industrial measurement.
- Heated Sensor for High-Humidity Applications: A heated high-end RH and T sensing element enables reliable measurement in extremely humid environments and prevents condensation on the sensor.
- Durable Sensor Coating: The monolithic structure of the sensing element is protected by a proprietary coating, allowing for fast recovery after exposure to condensation or chemical contamination.

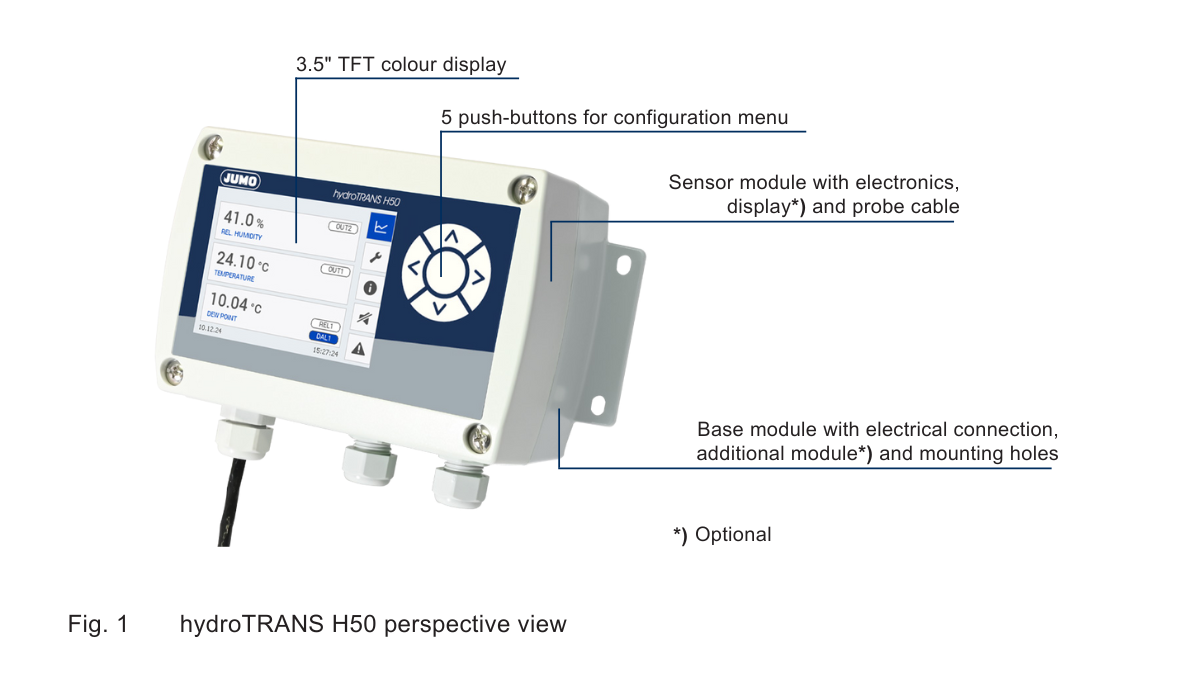

- Integrated Data Logger Function: An optional 3.5″ colour display with push-buttons allows for easy configuration, visualisation, and reading of process data directly on the device.

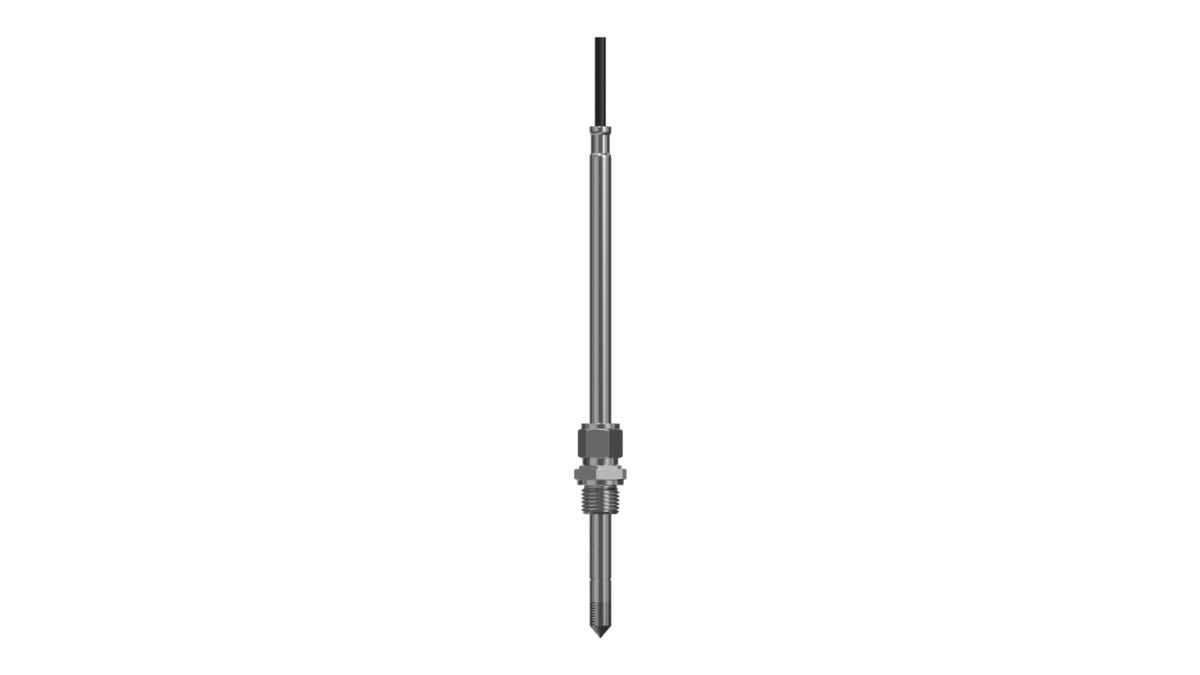

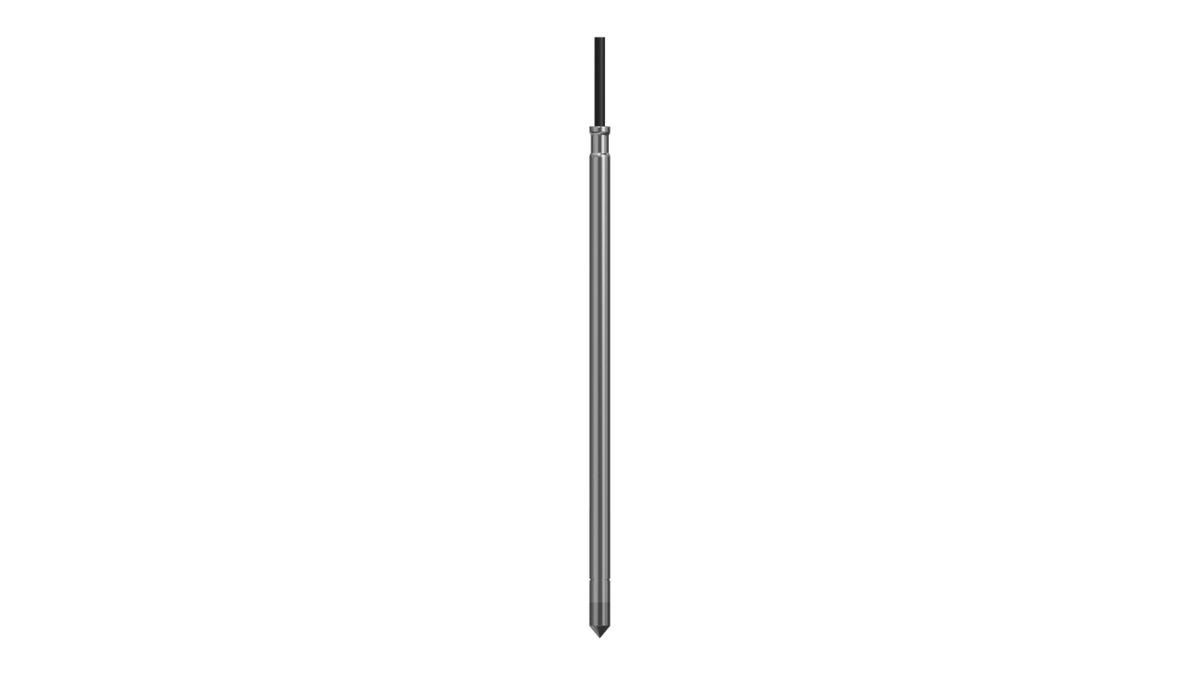

- Replaceable Probes: Minimise downtime with probes that can be easily replaced, ensuring continuous and reliable operation.
- High Process Reliability: Optional alarm (relay) outputs provide an extra layer of security, alerting you to any deviations from set parameters.
Robust and Versatile Design for a Wide Range of Applications
The hydroTRANS H50 is built to be both versatile and tough, making it suitable for a variety of industrial settings.

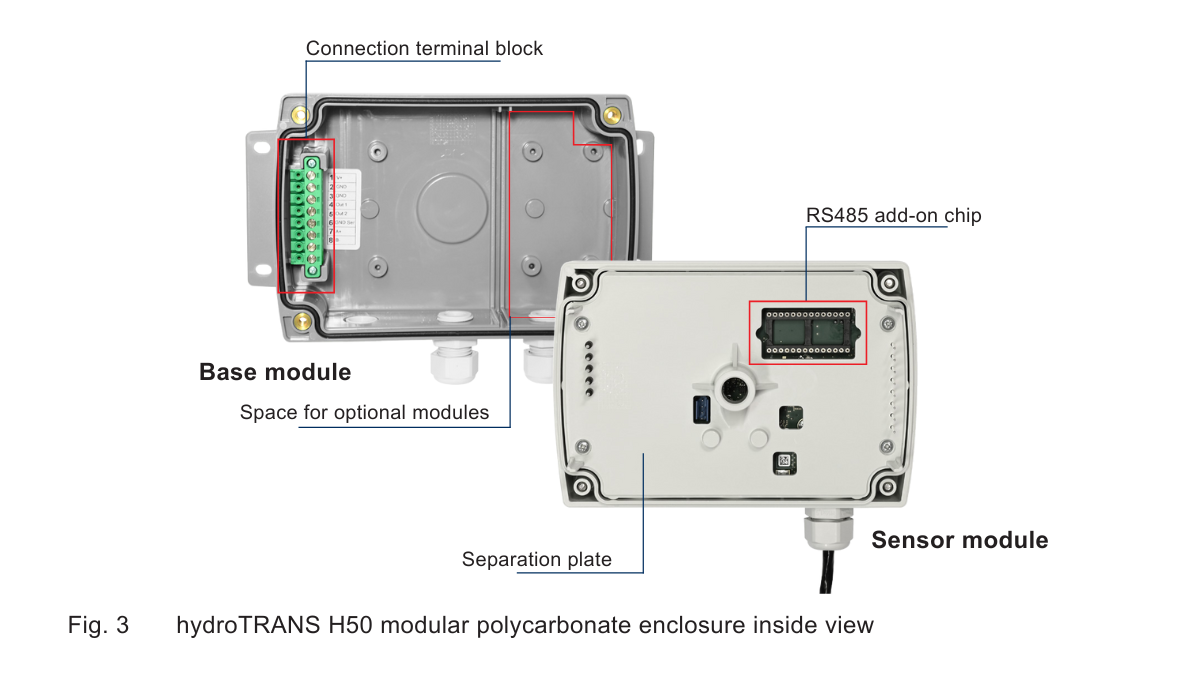

Versatile Configuration:
- Available with several probe and cable lengths to fit your specific installation needs.
- Features an IP65 / NEMA 4 rated enclosure in either polycarbonate or stainless steel.
- Can be tailored to your measurement task with various heating modes.

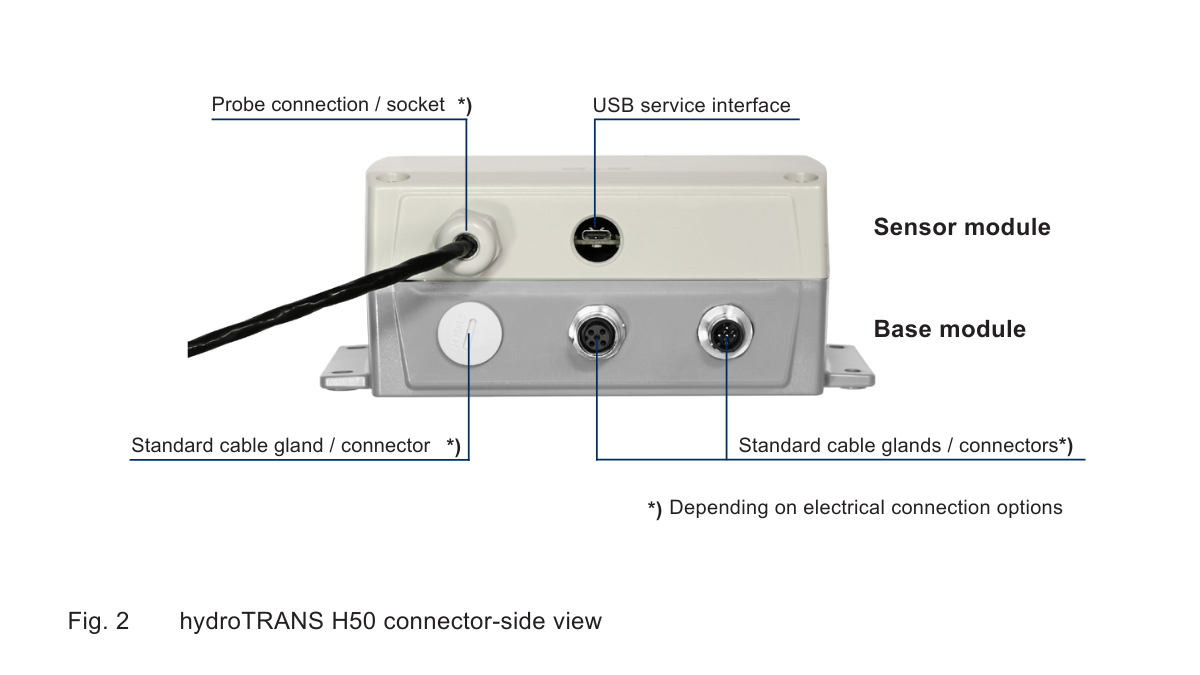

Flexible Connection Options:
The measured data can be accessed through multiple outputs to integrate seamlessly with your existing systems.
- Two freely scalable analogue outputs
- RS485 (Modbus RTU)
- Ethernet-PoE (Modbus TCP, M12 X-coded connection)
Areas of Application:
The hydroTRANS H50 excels in industries where precise environmental control is critical.
- Food and Beverage: Ideal for monitoring and controlling drying processes.
- Thermoprocess Technology: Ensures accuracy in industrial drying and heating applications.
- Renewable Energy: Provides critical measurements for fuel cell technology and other green energy systems.
-
SPECIFICATIONS
Technical Information
Product Designation Humidity and temperature sensor for industrial applications Type 907055 Temperature Range -80 to +180 °C Humidity Range 0 to 100 % RH Accuracy 0.95 % RH Pressure Range 0 to 300 bar Interfaces Modbus, 4 to 20 mA, 0 to 10 V Alarm Outputs Optional extra Display Color display with data logger function
JUMO hydroTRANS H50 – Humidity and temperature sensor for industrial applications
The JUMO hydroTRANS H50 is engineered to deliver highly accurate and stable humidity and temperature measurements in the most challenging industrial conditions. Designed for professionals who require precision, this sensor provides a robust solution for areas with high moisture levels or chemical contamination, ensuring your processes run efficiently and reliably.
