OVERVIEW
The LPI-LCD-6 – 4~20mA Panel Display is ideal for displaying a variety of process variables, and is easy to scale to your required engineering units.
Features:
- Easy installation (front mounting unit takes up virtually no space behind the panel).
- Loop powered display backlight.
- Protection against reverse wiring and accidental 24V supply.
- Easy calibration via on-screen menu.
-
SPECIFICATIONS
Input configuration: 4~20mA Loop Powered. Minimum Input: 3.5mA. Maximum Input: 100mA. Load: 220Ω Typical. Full scale range: Adjustable Between -99,999 and +999,999. Max Resolution: 50,000 Counts. A/D Conversion: 16bit Sigma Delta. Accuracy: ±0.02%. Temperature Coefficient: 30ppm/°C Typical. Conversion Rate: 10 Readings per Second. Protection: Reverse Polarity. Accidental 24V Supply. Display: Liquid crystal display (LCD) 17.5mm. Units: Standard KG, LB, T, or Custom. Decimal point: Up to 4 Decimal Places. ±Over-Range: Shows ‘UNDER’ or ‘OVER’. Operating temperature: -10°C to +60°C. Relative humidity: 10~85%RH (non-condensing). Power Supply: Designed to be powered from the 4~20mA current loop input signal. Display: 17.5mm LCD. Units: Standard KG, LB, T or Custom. Decimal: Up to 4 Decimal Places. ±Over-Range: Shows ‘UNDER’ or ‘OVER’. Housing: Rating IP65. Case dimensions: 144 x 72 x 25mm (WxHxD).

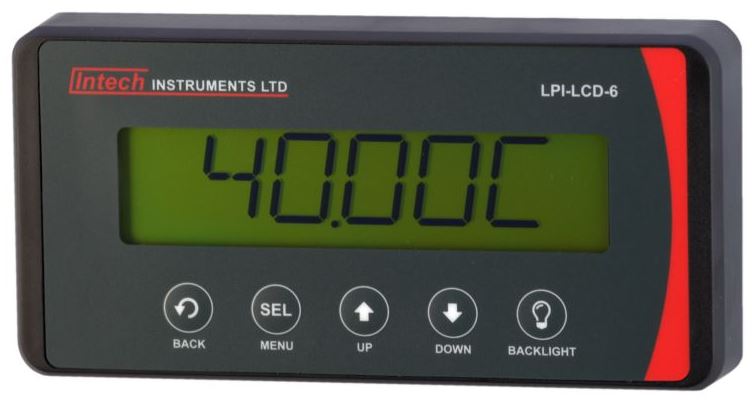

Intech LPI-LCD-6 – 4-20mA Loop Powered Indicator
$644.00 ex GST
The LPI-LCD-6 – 4~20mA Panel Display is ideal for displaying a variety of process variables, and is easy to scale to your required engineering units and is powered from a 4-20mA loop so no additional power is required.
