OVERVIEW
eze Energy Monitoring System
Combining the powerful ezeio web based solution with a wattnode energy transducer and CT’s to offer one of the best energy monitoring systems on the market.
ezeio mkII
The New ezeio mkII is a powerful, compact IIoT device with Ethernet and LTE Cat M1 connectivity. Designed for ease of use and versatility, the ezeio mkII is ideal for remotely monitoring and controlling almost any device or installed with OEM equipment.
The ezeio mkII comes standard with analog and digital inputs/outputs, plus Modbus RTU/TCP, SDI-12 and CAN connectivity. There is also alarming via O/P, Email or SMS, remote control and automation functionality via the web based user interface which has Multi-user, multi-site consolidated management and dashboard display functionality.Key features
- Remote data logger & controller
- Secure management and consolidation through cloud back end
- Analog, Pulse, Modbus RTU/TCP, CAN and SDI-12 compatible
- Monitor, Log, Alarm, Control and Automate – fully remote management
ezeio mkII Hardware
Combining Hardware & Software making IIoT work. 100% remotely managed, configured & synchronised.
- Input/Output Unit
- Data Logger
- Modem (LTE Cat M1) & Gateway
- PLC (edge processing)
- System Functionality
Read More about the ezeio mkII Web-based controller here>>
WattNode Wide-Range Modbus
The new WND-WR-MB provides over fifty electrical measurements over a Modbus RTU RS-485 network. Designed as a universal line-powered meter, it works on any utility service from 100 to 600 Vac, single or three-phase, wye, or delta.
The WND-WR-MB has the same dimensions as its WattNode Modbus predecessor but its expanded register map provides many unique features not previously offered in the submetering market. New registers include fast power for export limiting, registers to correct wiring errors remotely, potential transformer ratio for 4160 Vac and higher utility services, and SunSpec compliance.Features
- Measures 100 to 600 Vac single-phase or three-phase, wye or delta
- Line powered from 100 to 600 Vac, line-neutral or line-line
- Correct wiring errors remotely
- Change a CT’s polarity
- Change a CT to a different line voltage
- PT ratio register for use with potential transformers
- Current transformer disconnect detection
- Modbus RTU, RS-485
- For use with safe low voltage (0.333 Vac) CTs to 6000 ampsFast power feature for export limiting applications
- Nine baud rates from 1.2K up to 115K
- SunSpec compliant register list
Read more about the WattNode Wide-Range Modbus here>>
Split Core and Rogowski Coil CT’s
ACTL Series Split-Core Current Transformers – Accu-CT up to 200A
Read more about the split core CT’s here>>ACTL-1250 Series Split-Core Current Transformers 250A to 600A
Read more about the split core CT’s here>>Single Phase CTRC Series Rogowski Coil Current Transformers
Read more here>>Magnelab Three-Phase RopeCT Rogowski coil AC Current Sensor RCS-1800
Read more here>> -
PARAMETER COMPARISON
Standard v Advanced Comparison
Parameter
Standard
Advanced
(Fees Apply)
Positive Energy NR ✓ ✓ Negative Energy NR ✓ ✓ Energy phase A ✓ ✓ Energy phase B ✓ ✓ Energy phase C ✓ ✓ Total Reactive Energy ✓ ✓ Reactive Energy phase A ✓ ✓ Reactive Energy phase B ✓ ✓ Reactive Energy phase C ✓ ✓ Reactive Power total ✓ ✓ Reactive Power phase A ✓ ✓ Reactive Power phase B ✓ ✓ Reactive Power phase C ✓ ✓ Total Apparent Energy ✓ ✓ Apparent Energy phase A ✓ ✓ Apparent Energy phase B ✓ ✓ Apparent Energy phase C ✓ ✓ Total Apparent Power ✓ ✓ Apparent Power phase A ✓ ✓ Apparent Power phase B ✓ ✓ Apparent Power phase C ✓ ✓ Reset energy ✓ ✓ Total Energy ✓ Total Power ✓ Power phase A ✓ Power phase B ✓ Power phase C ✓ Volt average ph-N ✓ Volt phase A-N ✓ Volt phase B-N ✓ Volt phase C-N ✓ Current phase A ✓ Current phase B ✓ Current phase C ✓ Power factor average ✓ Power factor phase A ✓ Power factor phase B ✓ Power factor phase C ✓ Rolling demand ✓ Window Demand ✓ Volt average L-L ✓ Volt phase A-B ✓ Volt phase B-C ✓ Volt phase C-A ✓ Total Energy NR ✓ -
SPECIFICATIONS
Hardware models
- LTE-CAT-M1 (5G IoT) + Ethernet
- 2G/3G + Ethernet
Security
- Secure OTA sync & updates
- Fully encrypted, PKI & 128bit encryption,
Inputs/outputs
- 8 general purpose inputs (discrete, on pluggable terminal, fully configurable)
- 0-10VDC (2.5mV resolution, >65kΩ input impedance)
- 0-30mA (12.5uA resolution, 200Ω internal shunt)
- 0-1MΩ resistance (<2% accuracy in the range 2k – 700kΩ)
- Thermistor (100kΩ/10kΩ/2Ω types, internal excitation)
- Dry switch (on/off, optional internal excitation)
- Pulse (S0 or KYZ, max. 400Hz, optional internal excitation, monitor pulse rate and/or pulse count/ frequency/interval)
- Electronic configuration of pull-up / shunt
- Protected with PTC
- Internal 0.5% reference
- 4 general purpose outputs (discrete, on pluggable terminal, fully configurable)
- Output 1/2 – digital (on/off), sourcing max. 200mA each
- Output 3 – PWM output or on/off output (sourcing max. 200mA)
- Output 4 – analog, 0-10V, 0.1V resolution (sourcing up to 10mA)
- Supports plug-in sidecar ezeio I/O expansion (third-party I/O can be added via the communication ports)
Supports up to 90 individual fields
Modbus/RTU Master port (RS485)
- Up to 32 devices
- 1200 to 115200 bps
Modbus/TCP server & client (TP 10/100 Ethernet)
- Configurable port numbers (standard 502)
CANbus
- Supports J1939
- Optionally used for I/O expansion
SDI-12 port
- Supports v1.4
- Optional support for serial NMEA 0183 (GPS)
Other hardware features
- SMA antenna connector (cellular)
- +5V DC regulated output, max. 200mA
- PTC fused DC output, max. 200mA for sensors
- On-board RTC (24h supercap backup)
- 3 dual-color indicator LEDs
- Pushbutton for controlled start-up/reset
Power supply
- 12-24V DC
- Standard 5.5/2.1mm plug in barrel connector
- Optionally powered through screw terminal
- 0.8W self-draw (average), 3W peak (short sub-second bursts)
- Hibernation mode, <0.06w average=”” li=””>
Dimension & weight
- W: 108mm/4.3in, H: 90mm/3.6in (excl. connectors), D: 33mm/1.3in
- Allow 50mm top & bottom for connectors & wiring
- 35mm DIN rail or screw mounted
- Weight: 0.150kg/5.3oz
On-board log buffer memory (non-volatile)
- Full system log data (>50 days @ 10 minutes logging)
- Large dynamic log data buffer, i.e.
- 10 fields, >30 days @ 10 seconds
- 50 fields, >30 days @ 1 minute
- >6,000 events/alarms/transactions
- All logs auto-uploaded to ezeio backend
Capabilities
- Up to 90 monitored fields
- Up to 300 alarms for local events, SMS, email, voice calls etc.
- Geo-fence features with GPS support
- Up to 2000 card/PIN codes
Schedules & Calendar
- 10-year calendar
- 30 daily schedules
Additional features
- Full remote configuration & management
- Live data access
- Automatic data synchronization with ezeio cloud
- Expression engine for field math & alarms
- Remote firmware upgrade
- Standard & custom driver support for industrial devices
- Powerful scripting support
Others
- Operating Temperature
- -20 to 65°C
- Operating Humidity
- 5 to 95% (non-condensing)
- IP40 (use indoors/in electrical enclosure)
Certifications
- FCC Part 15 B 15.017 & 15.109
- AS/NZS CISPR 32 (2015)
- EN 55032 (2012) +AC1
- EN 61000-3-2 (2014)
- EN 61000-3-3 (2013)
- EN 55024 (2019) +A1
- VCCI-CISPR 32:2016 Class B
- Verizon OD
- CE
- RoHS 3

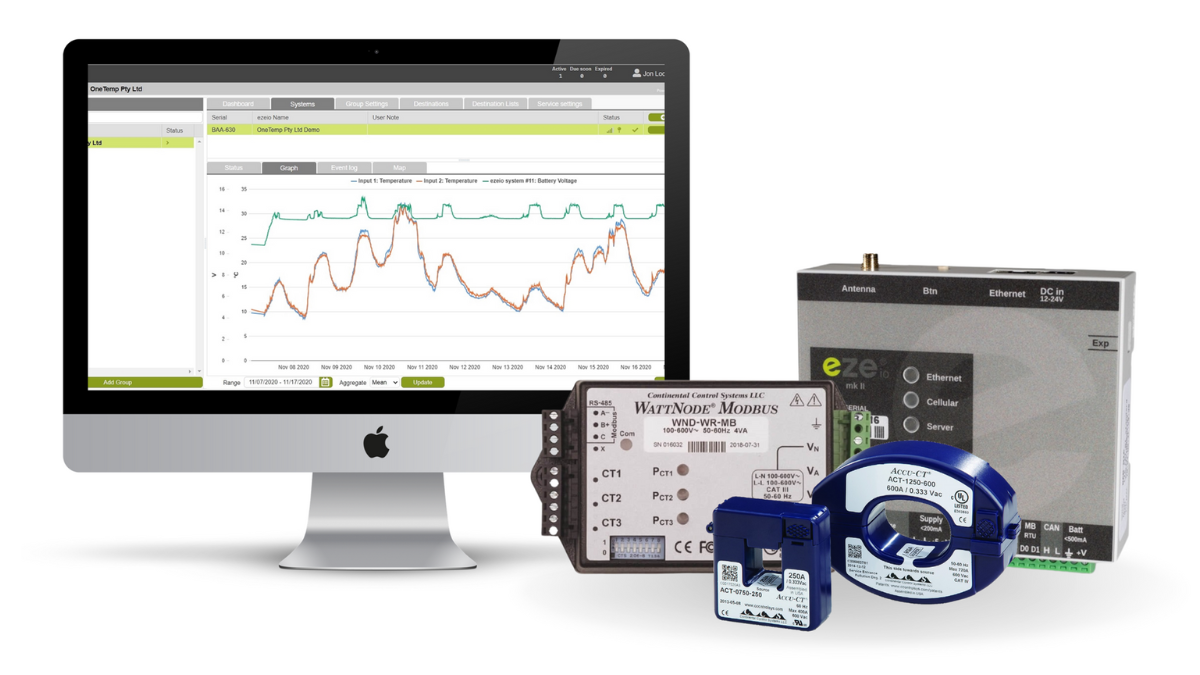

ezeio mkII Web-Based Energy Kit
From: $2,701.00 ex GST
Combining the powerful ezeio web based solution with a wattnode energy transducer and CT’s to offer one of the best energy monitoring systems on the market.
