OVERVIEW
Flowmeter for Compressed-Air Systems
- Easy to install
- Display rotates to facilitate use on horizontal or vertical pipes
- No moving parts
- Weather resistant and surge protected
- Milliamp output
- Pulse output convertible to threshold output
- User-configurable scaling, filtering and units of measure
- Optional wired and wireless outputs for networking

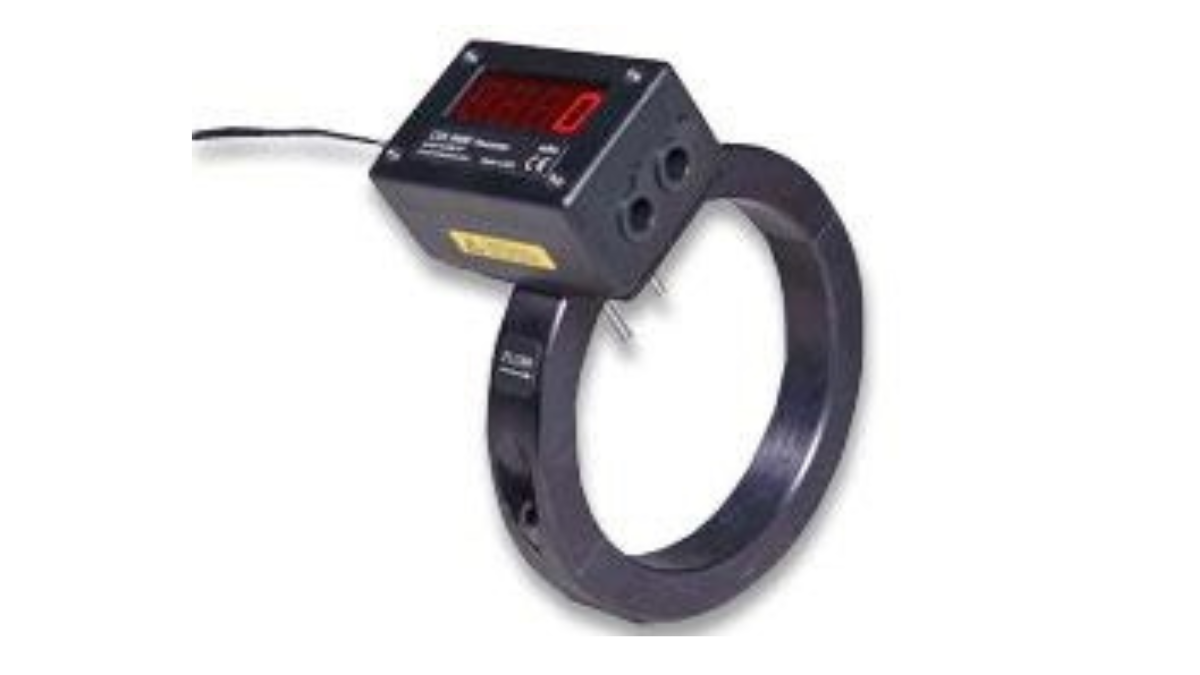

The CDI 5400 is similar to the CDI 5200, except that it has its probes mounted side-by-side in a single ring, its display can rotate to accommodate pipe orientation, and it is built for larger pipe sizes. Like the 5200, it is a thermal mass flow meter in which one probe senses the air temperature and the other is maintained ten degrees above the air temperature. It has the same milliamp and pulse outputs, the same large, bright display, and optional wired and wireless outputs. The new wireless output makes central monitoring practical where it might not otherwise be considered.
The CDI 5400 is commonly used for monitoring of compressor-room output and distribution lines in medium to large-sized facilities. It is also used for point-of-use monitoring in industrial processes that use large amounts of compressed air.
-
SPECIFICATIONS
Number of Rings 1 Ring Material Type Metric Aluminum, Sch. 40 Steel, Type L Copper Nominal Pipe Sizes 2 in. – 8 in., 50 mm – 101 mm, DN50 – DN200 Accuracy 5 percent of reading plus 1 percent of range for flows from 10 percent to 100 percent of indicated range at air temperatures between 20 and 120 degrees Fahrenheit Fluids Compressed Air, Nitrogen Operating Pressure 200 psig maximum on Sch. 40 steel and on Type L Copper; consult CDI for other materials and higher pressures. Input Power 250 mA at 24 Vdc Output Resistance 600 Ohms max. Exposed Materials Stainless steel, gold, thermal epoxy and Viton (seal) Ring Material Aluminum Display Four digit LED display Response Time One second to 63 percent of change in value at flows above 30 percent of range.

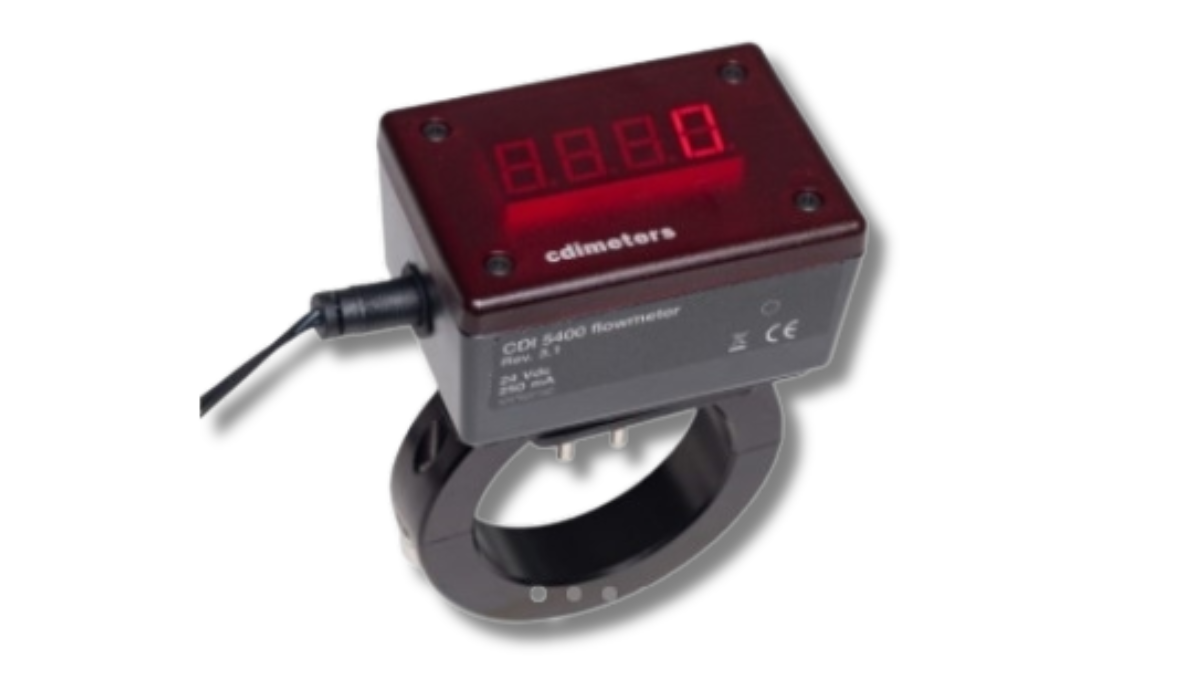

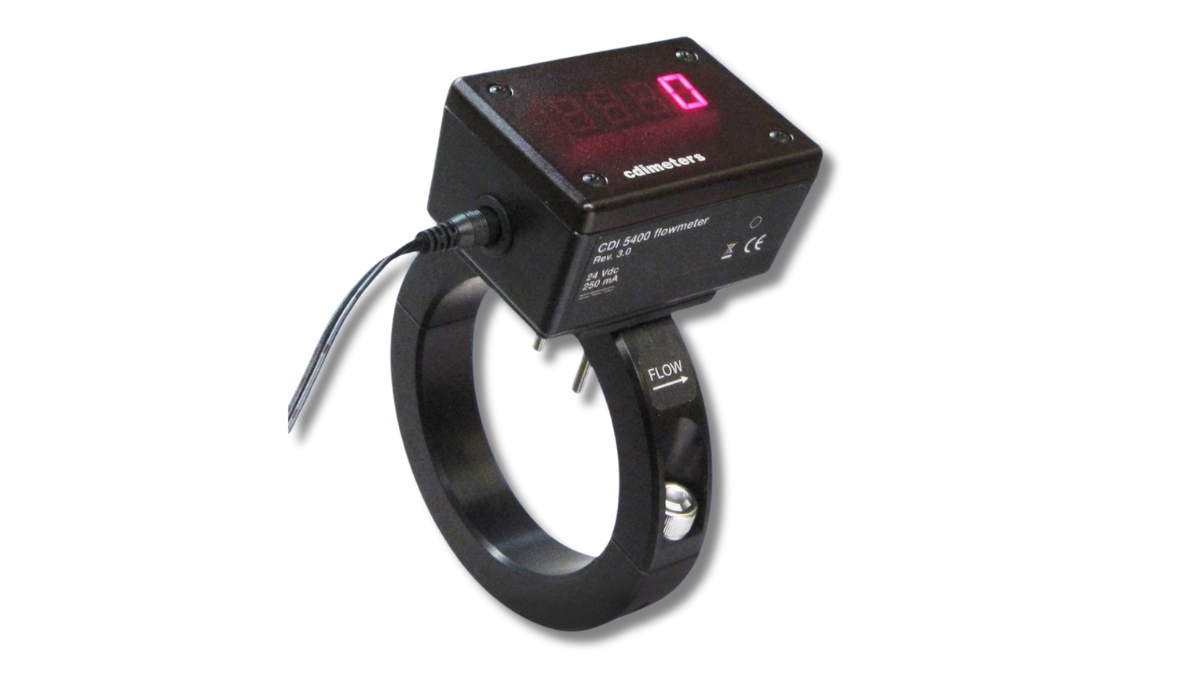

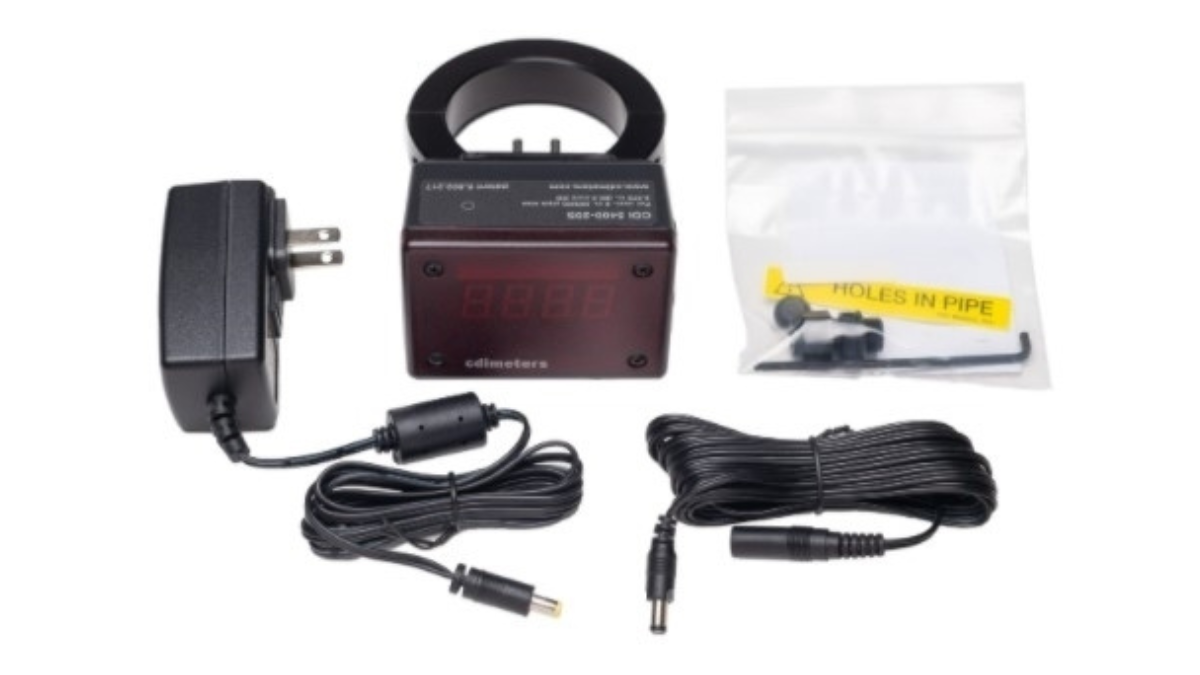

CDI 5400 – Compressed Air Flow Meter for 2″ to 8″ Pipe

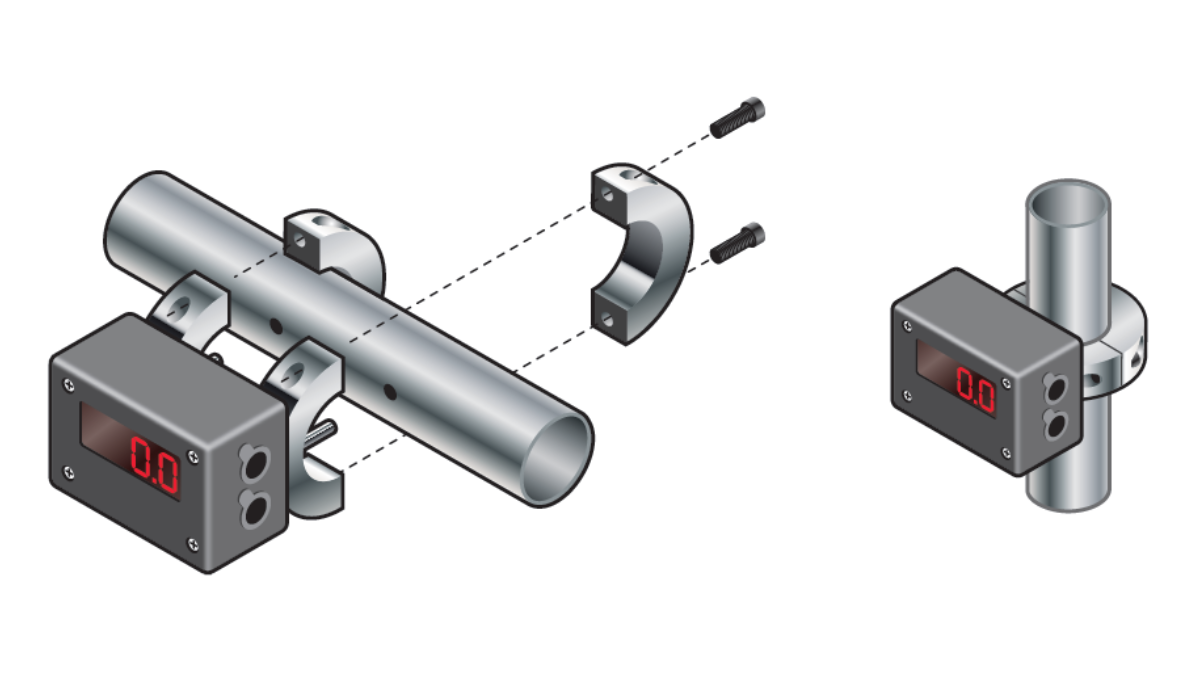

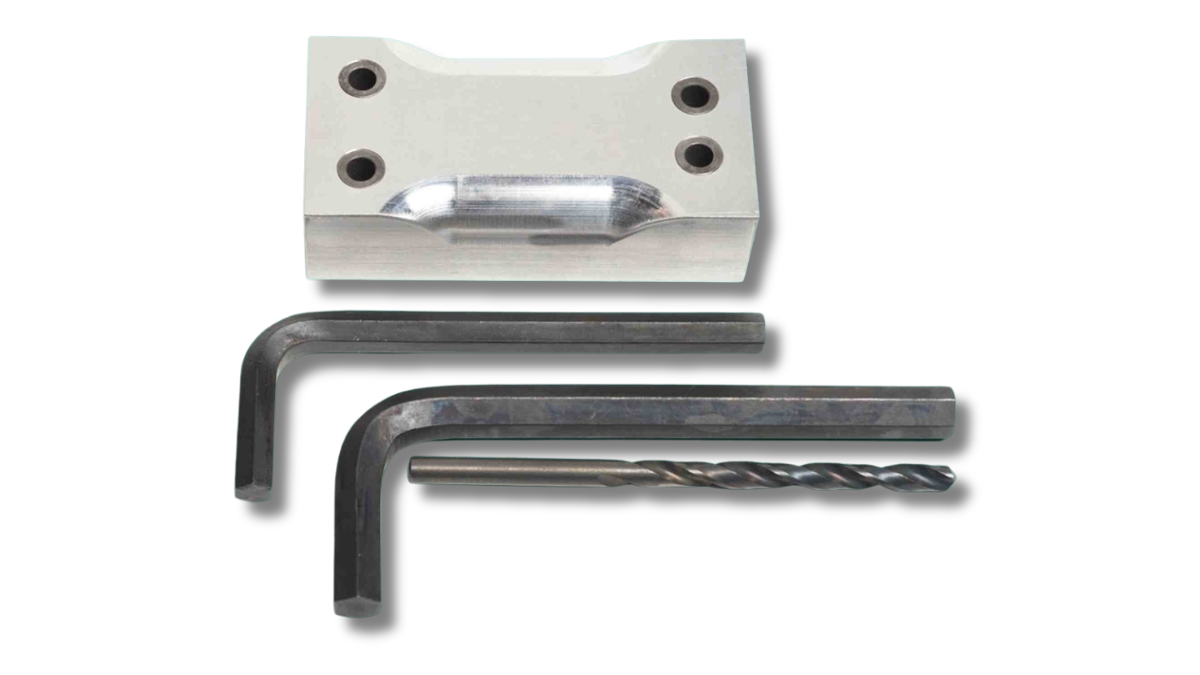

The CDI 5400 clamps onto a pipe, with two flow-sensing probes projecting into the pipe through 3/16-in. drilled holes. It seals directly to the pipe; no cutting or welding is required for installation. Because each flowmeter is made and calibrated for a specific size of pipe, the digital display indicates flow directly, with no setup or adjustment.
