The economical temperature logger you can trust

Single-use GDP conforming temperature logger with automated PDF & CSV reports for smart logistics. Single use temperature logger EN12830 compliant.

Your Benefits at a Glance

• Cost-Effective and Reliable
• Waterproof and Food Grade Packing
• No Additional Hardware or Software Required
• Detailed PDF and CSV Report Including Graph and Table
• High-Precision Digital Sensor
• 2 Years Shelf-Life
• Preprogrammable

Curious about your Cold Chain?  tempmate.®-S1 continuously monitors all relevant data.

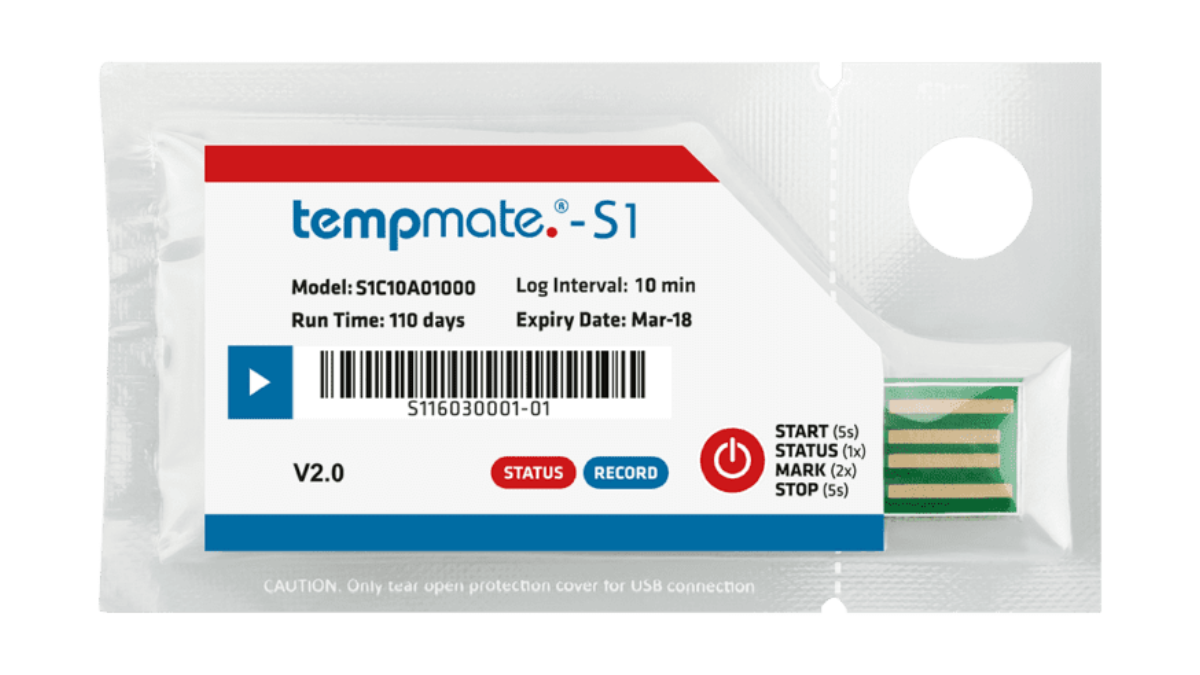

tempmate.®-S1 temperature loggers were specially developed for monitoring temperature-sensitive products throughout the entire cold chain. We incorporate customer-specific settings directly ex-works so that each temperature logger is good to go out of the box. Digital sensors measure the temperature with high accuracy, together with long battery life and intuitive LED indication of the status makes our tempmate.®-S1 a worldwide standard in logistics and storage.

The temperature logger ideal for Air-Cargo

Labelling per IATA´s dangerous goods regulations is not required for your tempmate.®-S1. Simply activate the temperature logger, drop it in the box and check the status via intuitive LEDs whilst handling the shipment during shipment or once the final destination has been reached. The automatically generated report indicates exactly if and when your set threshold has been breached.

• Preconfigured
• 6-point validation certificate
• Backup-log functionality
• Anti-stop functionality
• Up to 110 days of recording time
• Up to 2-year service life
• No additional software required
• LED status indicators
• with NFC function
• Each device has its own validation certificate which can be retrieved via the NFC chip, via USB transfer or in the certificate database online

tempmate.®-S1 data loggers are equipped with an integrated USB port and PDF generator on board, so they do not require any additional software or hardware to start temperature recording or reading the data from the logger: These single-use loggers are supplied pre-configured according to customer’s settings and automatically generate a comprehensive PDF report after being connected to a computer. With its compact size tempmate.®-S1 data loggers will fit in every packaging, saving space and weight.

The generated PDF report contains comprehensive information about the monitored conditions: Complete data graph, statistical information like MIN, MAX, AVG, MKT, cumulated time outside thresholds and every single measurement in a table.

Important Information – Certificate of Validation

The validation certificate supplied with this instrument is from date of manufacture, therefore due to receipt of goods time and shelf time may be partly or fully expired.

It is deemed by OneTemp Pty Ltd that this instrument is not supplied with current certificates of validation. If you need current certificates, please discuss the options we have available before ordering.

Have any Questions?

Call us on 1300 768 887 or checkout our FAQ’s below

Tempbase 2 Software

With the free tempbase 2 software you have the possibility to configure the tempmate.®-S2 before use according to your wishes and requirements. This way you can tailor it to your specific needs and guarantee the best possible monitoring of your supply chain. If you want to learn how to configure your S1(V2) Single Use Data Logger see the video in the research section below.

To download the free software:

• Visit: https://www.tempmate.com/download/
• Find your tempmate model
• Select download “tempbase 2 software”

Can I change the battery of the tempmate.®-S1?

No! The tempmate.®-S1 is a single-use data logger. Once stopped you cannot reuse the logger.

Do I need the software to use the tempmate.®-S1?

No! You just need the software if you want to reprogram the logger (and only if the logger have not been started yet)

Why does the report show in the temperature field the keyword “USB”?

This happens if you have started the logger and then plugged the logger into a computer. The report will show the keyword “USB” as long as it is plugged in the computer.

What is the difference between the tempmate.®-S1 and tempmate.®-M1?

The tempmate.®-S1 is a single-use datalogger whereas the tempmate.®-M1 is a multiuse datalogger. That means once the tempmate.®-S1 is stopped you cannot restart the logger. But with the Mark function, you can set a mark point and use the tempmate.®-S1 for multiple means of transport.

What is the difference between the tempmate.®-S1 and tempmate.®-i1?

The tempmate.®-S1 is a datalogger whereas the tempmate.®-i1 is an indicator. That means that the tempmate.-S1 do store the data for further analysis and to create the PDF or CSV Report.

What time is shown for the analysis?

The tempmate.®-S1 data loggers have an integrated real-time clock (RTC). This is set to GMT±0 before leaving the factory, and is therefore used for the tempmate.®-S1’s PDF analysis. The starting time is therefore documented with to-the-second accuracy, and the stop time always corresponds to the last measurement interval when it was stopped.

Will the temperature also be monitored between the measurement intervals?

The temperature will also be recorded between the measurement intervals, and in each case, an average value will be determined. In the event of significant temperature fluctuation of ±2°C, this will be recorded accordingly.

Is the PDF report protected against manipulation?

Just as is the case with other electronic documents, it is possible to manipulate PDF files. However, even after the data has been analysed, the original data remains stored on the tempmate.®-S1 logger, so that it can always be downloaded again and compared to the questionable PDF report. Therefore, it is important that the loggers are saved until any such queries have been completely clarified.

Why can’t I open the PDF report?

You need Adobe Acrobat, version 9.0 or above, to be able to open the PDF. The latest respective version can be downloaded here: www.get.adobe.com/reader

What does the analysis look like in the PDF report?

The temperature profile is presented as a graphic, and all individual measurement values are shown in table form. What’s more, additional statistical information (for example serial number) is also included.

tempmate-S1-CSV-Sample-Report

Is it possible to analyse tempmate.®-S1 loggers with software and to export the data?

The tempmate.®-S1 is optionally compatible with the tempbase.®-D software. This software can manage all the measurement data and export it as a PDF or CSV file. The tempbase.®-D software is available as a free download, either here or in the software download box.

Are the tempmate.®-S1 loggers validated?

Yes, and with each delivery, you receive a validation certificate free of charge.

tempmate-S1-Validation-Certificate.pdf

What is the loggers’ service life/storage life?

From leaving the factory, each logger with an ideal storage conditions (+15°C to +23°C / 45% to 75% rF) has a life of at least 1 year, maximum 24 months. The respective best before date is printed on the reverse of the logger and should always be kept in consideration.

How accurate is the built-in real-time clock (RTC)?

The real-time clock runs from when it was produced. Due to technical factors, there may be a deviation of ±2 minutes after 5 months/±4 minutes after 10 months.

Are tempmate.®-S1 loggers IATA compatible, meaning they can be used in aeroplanes?

Yes, to the latest IATA Guidelines, our tempmate.®-S1 Single-Use data loggers do not need to be declared.

tempmate-S1-Battery-Statement.pdf
