OVERVIEW
Improve trust in your cold chain operations with the tempmate® C1, an advanced data logging solution optimisDry Ice / Low Temperature42 ged for ultra-low temperatures, ranging from -90°C to +70°C. Specifically engineered for dry ice applications, this single-use device is your reliable partner for monitoring and safeguarding temperature-sensitive goods during transit.
Reliable Dry Ice Data Logger for Ultra-Low Temperatures
Designed for Extreme Performance
With its robust, waterproof casing, the tempmate® C1 withstands shocks and external forces, ensuring durability even in harsh environments. Thanks to its probe-free design, it can be placed directly into dry ice, offering seamless temperature reporting without the hassle of additional components.
Effortless Monitoring and Validation
Featuring an impressive 90 days of active recording, the tempmate® C1 keeps your cold chain operations under control for extended journeys. Its included 6-point validation certificate provides peace of mind, meeting stringent compliance and quality benchmarks.
Instant Insights, Zero Hassle
Say goodbye to clunky setups and extra software. The tempmate® C1 features automatic PDF and CSV report generation upon stopping, giving you instant access to data. With its built-in USB interface, you can easily retrieve records on any PC with a USB port, streamlining the process for busy teams on the go.
Simple. Efficient. Reliable.
Whether you’re in pharmaceuticals, biotech, or food logistics, the tempmate® C1 empowers you to maintain the highest standards in preserving product integrity. Start tracking smarter with unmatched ease and precision.
-

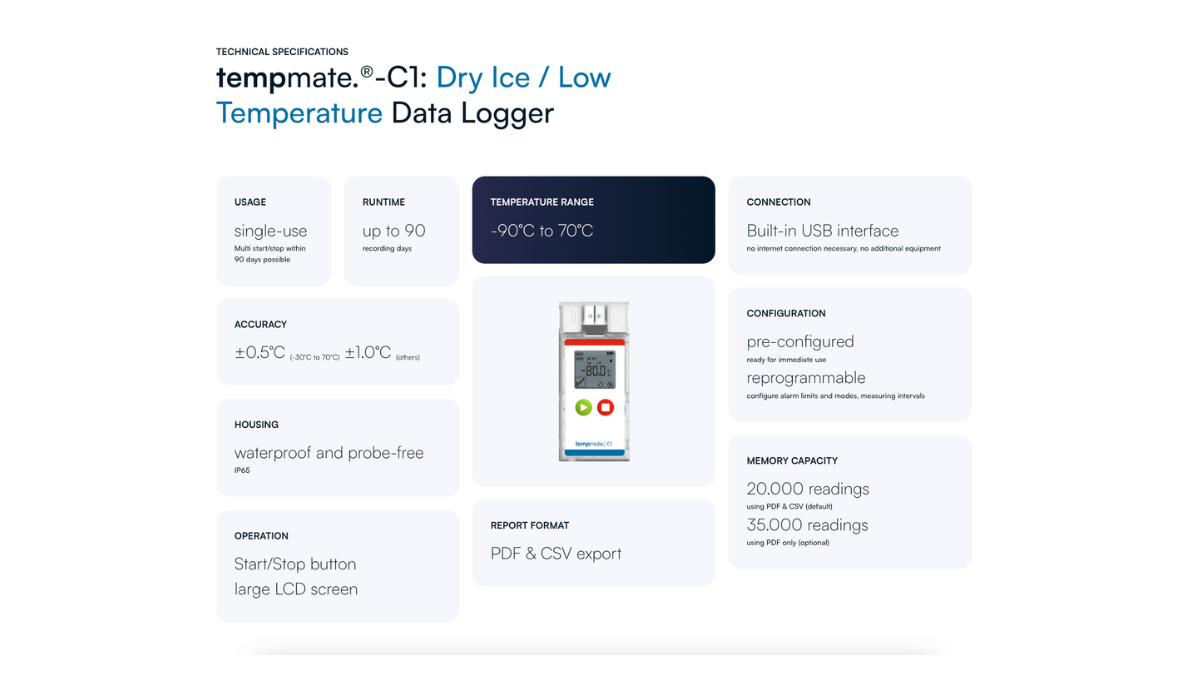

SPECIFICATIONS
Usage Type Single-Use (Multiple Start/Stop within 90 days possible) Monitored Information Dry Ice / Low Temperature Dimensions (mm) 96 mm × 44 mm × 15 mm (L × W × H) Weight (g) 42 g Casing TBD Battery TBD Temperature Range –90 °C to +70 °C Temperature Accuracy ±0,5 °C (–30 °C to +70 °C); ±1.0 °C (other range) Temperature Resolution 0.1 °C T90 TBD Indication/Display LED indication &Multifunctional LCD Protection Class IP 65 Shelf Life Minimum 24 months* Connection Interface USB 2.0, A-Type Memory Capacity (measurements) 20,000 readings using PDF & CSV (default) 35,000 readings using PDF only (optional) Run Time Up to 90 days (depending on temperature range & log interval) Logging Interval Default: 10 min.; Programmable: 1 min. – 23h 59min. Startup Mode Button, scheduled start, start through tempbase Cryo Software Stop Mode Button or through tempbase Cryo Software Alarm Configuration Up to 6 alarm limits customizable, single or cumulative via
tempbase Cryo SoftwareOther Specifications
Temporary PDF The PDF Report is available at anytime without stopping the
LoggerConformity EN 12830, CE, RoHS, RTC-DO-160, MSDS Validation Certificate 6 points (hardcopy) & PDF in memory Reprogrammable Yes, via tempbase Cryo Software Report Generation Automatic PDF & CSV report Password Protection Optional on request Backup-Log-Feature Yes Accessories Incl. Validation Certificate *Since environmental influences can affect the lifespan of batteries, we recommend that all our products be stored in the conditions that are optimal for them. In this way, the shelf life given at the time of purchase can be guaranteed. Optimal storage conditions: +15°C to +23°C / 45% to 75% rH.
tempmate -C1 – Single-Use Ultra-Low Temperature Data Logger
$181.00 ex GST
The tempmate® C1 is a single-use ultra-low temperature data logger, optimized for -90°C to +70°C. Designed for dry ice, its probe-free, robust housing ensures reliability. With 90 days of recording, automatic PDF/CSV reporting, and a built-in USB interface, it delivers hassle-free monitoring and data retrieval for temperature-sensitive goods.
