OVERVIEW

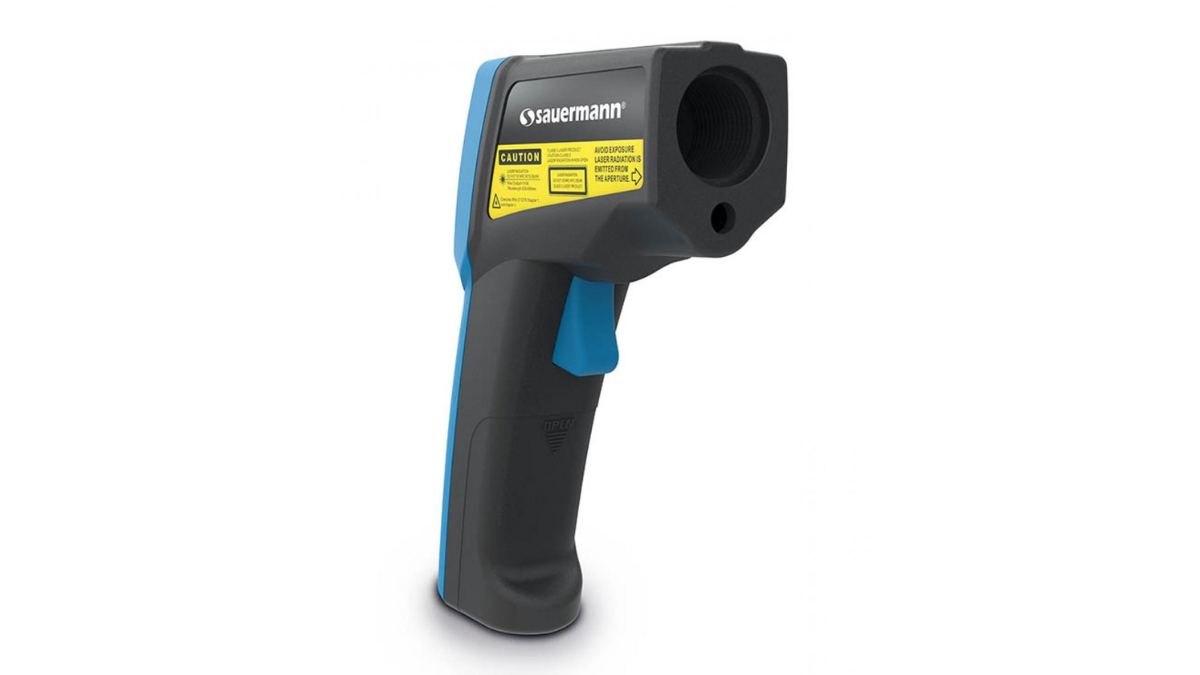

The palm-sized Sauermann Si-TI3 infrared thermometer is a key instrument to diagnose, inspect and check any temperature, with the advantage of using “no-contact” technology.

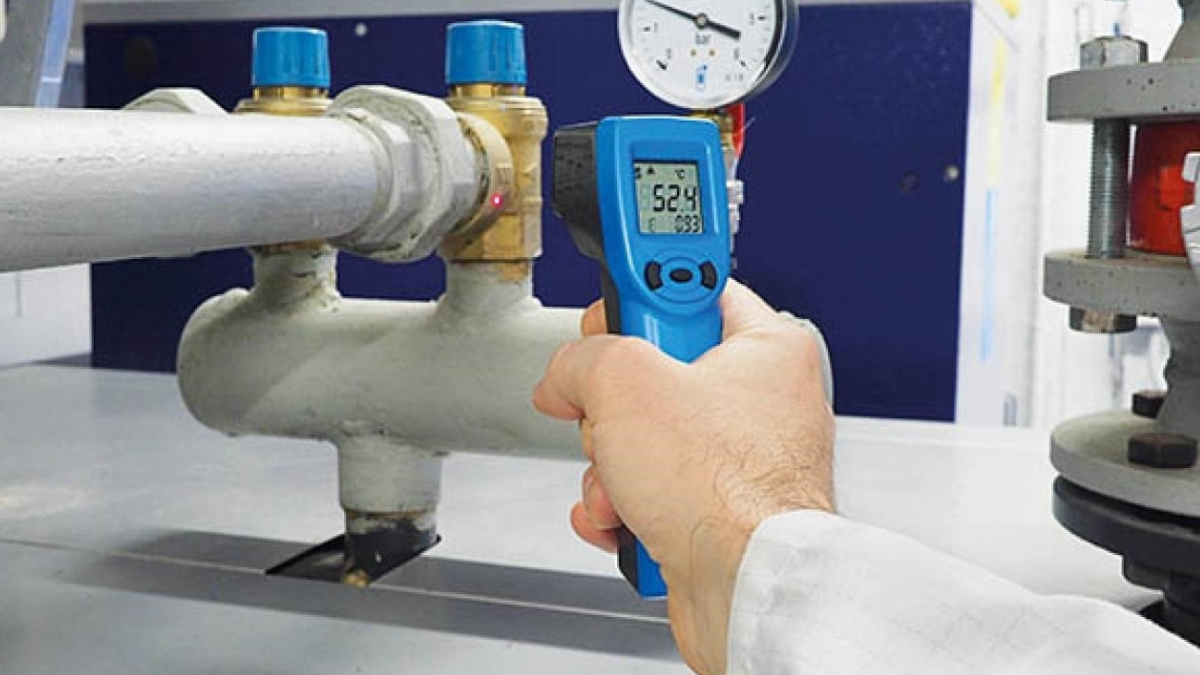

An infrared thermometer measures surface temperatures of hot objects that are dangerous or difficult to access.
-
SPECIFICATIONS
Emissivity Adjustable from 0.10 to 1.0 (pre-set at 0.95) Response time T90 1 second Optical D.S 12 : 1 Laser sighting 1 point Display Integrated 3-line monochrome display with backlight Housing ABS-PC Keypad 1 Mode button, 1 Unit button, 1 Lock button and 1 Measurement button Standards & Directives 2011/65/EU RoHS II; 2012/19/EU WEEE; 2014/53/EU RED Power supply 2 alkaline batteries LR03 AAA 1.5 V Battery life 14 hours* (without backlight) Wireless communication Range frequency from 2402 MHz to 2480 MHz with a transmit power of 0 dBm.
Range up to 15 m (98 ft), depending on smartphone radio strength.
Minimum required versions: Android 5.0, iOS 12.4, BLE 4.0Ambiance Air and neutral gas Operating conditions From 0 to 50°C (32 to 122°F).
In non condensing conditions.
Altitude: from 0 to 2000 m (6561’)Storage temperature From -10 to +60°C (14 to 140°F) Auto shut-off 15 seconds Weight (with batteries) 145 g (5.1 oz) *Battery life given at 20°C (68°F) with alkaline batteries
Technical Specifications
Parameters
Measuring units
Accuracy*
Measuring range
Resolution
Infrared Temperature °C / °F ±(2% of value +2°C)
±(-2% of value +4.3°F) from -40 to 32°F
±(2% of value +3°F) from 32 to 932°Ffrom -40 to +500°C
from -40 to 932°F0.1°C
0.1°FAmbient Temperature °C / °F – from 0 to 50°C
from 32 to 122°F0.1°C
0.1°FThis infrared thermometer mainly fits for measurements at short or medium distances.
*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions.
**Only available on the app -
MOBILE APP
Si-HVACR mobile app makes measurements more user-friendly
Si-HVACR Measurement MobileApp delivers a user-friendly experience for the Si-TT3 / Si-TI3 / Si-HH3 / Si-VV3 / Si-PM3 Sauermann instruments.
This app displays on your smartphone screen all the results in real time and allows the management of measurement datasets over a duration of your choice, to create reports to be saved and exported in PDF, CSV or XML format.
Si-HVACR Measurement MobileApp relays the following measurements:
- Temperature (thermocouple, NTC, ambient, infrared)
- Relative humidity
- Pressure
- Air velocity
- Calculated parameters (air velocity, airflow, dew point, absolute humidity, enthalpy, mixing ratio, wet bulb temperature).
Download the Mobile App User Manual from our Product Resources below
Sauermann Si-TI3 – Infrared Thermometer
$190.00 ex GST
The palm-sized Sauermann Si-TI3 infrared thermometer is a key instrument to diagnose, inspect and check any temperature, with the advantage of using “no-contact” technology.
An infrared thermometer measures surface temperatures of hot objects that are dangerous or difficult to access.
