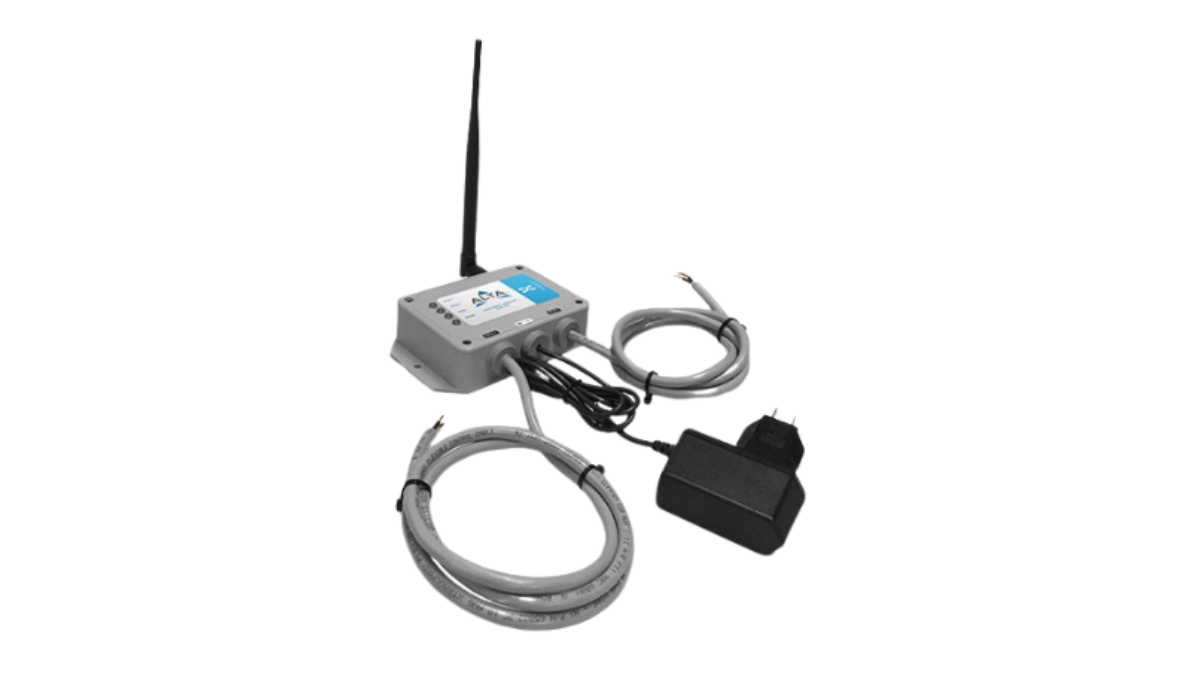

Monnits Wireless Control allows a user to control two separate power relays, all through the iMonnit online sensors portal. Automatically control motors or electrical devices when a condition is detected by a sensor or group of sensors. Relays can also be controlled manually through the online portal or mobile app.



Gateway Options for Seamless IoT Data Communication

Monnit offers a range of gateway options designed to facilitate wireless sensor data communication within IoT networks. These gateways, serve as crucial conduits for transmitting sensor data to the iMonnit software platform and play a pivotal role in ensuring seamless and efficient data transmission for IoT applications.

Click here to explore the diverse range of gateway devices available >>

Manage Your Monnit Sensors with iMonnit Cloud-based Software

Monnit’s Sensor Monitoring Software, iMonnit, stands as a cutting-edge cloud-based platform and central hub tailored for the seamless management of Monnit sensors. With a focus on data security, all information is safeguarded on dedicated servers running Microsoft SQL Server. This intuitive online user interface serves as a command centre for arranging, monitoring, and modifying device settings to suit individual requirements.

OneTemp provides complimentary activation and setup services for new iMonnit accounts, while a free mobile app empowers users to maintain control at all times. Whether opting for the basic version or upgrading to iMonnit Premiere, users can unlock the full spectrum of features that enrich the Monnit experience.

Click here to explore the software options >>



Control Unit Relays	10-Amp Units	30-Amp Units
Initial Contact Resistance	Max. 100 mΩ	Max. 50 mΩ
Max Switching Power (resistive load)	2500VA 150W (NO) 1662VA 150W (NC)	8310VA (30A 277VAC)
Max Switching Voltage	250 VAC, 100 VDC (0.5A)	277 VAC
Max Switching Current	10A (AC), 5A (DC)	30A
Nominal Operating Power	360 mW	Approx 800 mW
Operate Time (at nominal voltage / 20°C)	Max 10 ms	Max 20 ms
Release Time (at nominal voltage / 20°C)	Max 10 ms	Max 10 ms
Max Operating Speed	20 times/min (at nominal switching capacity)	20 times/min (at nominal switching capacity)
Number of Relays	2 (individually controlled)
Control Activation	– Automatic based on sensor notification settings – Manual through iMonnit online software
Input Power	5.5 VDC @ 900 mA
Antenna	Connector: SMA Gain (dBi): 3.0
Indicator Lights	Four LED indicators – Power – Radio (RF) communication – Relay 1 status (On/Off) – Relay 2 status (On/Off)
Enclosure	ABS Plastic UL94V-0 flame rating
Dimensions	5.5 x 3.355 x 1.25 in. (139.7 x 85.217 x 31.75 mm)
Weight	8 ounces
Wireless Range	1,000+ ft. non-line-of-sight ***
Security	Encrypt-RF™ (256-bit key exchange and AES-128 CTR)
Operating Temperature	-40° to +85° C (-40° to +185° F)
Certifications:	900 MHz product; FCC ID: ZTL- RFSC1 and IC: 9794A-RFSC1. 868 and 433 MHz product tested and found to comply with: CISPR 22:2008-09 / EN 55022:2010 – Class B and ETSI EN 300 220-2 V2.4.1 (2012-05).
