OVERVIEW
Unleashing Connectivity with the Milesight UR41: Your Versatile and Robust Mini Industrial Router Solution

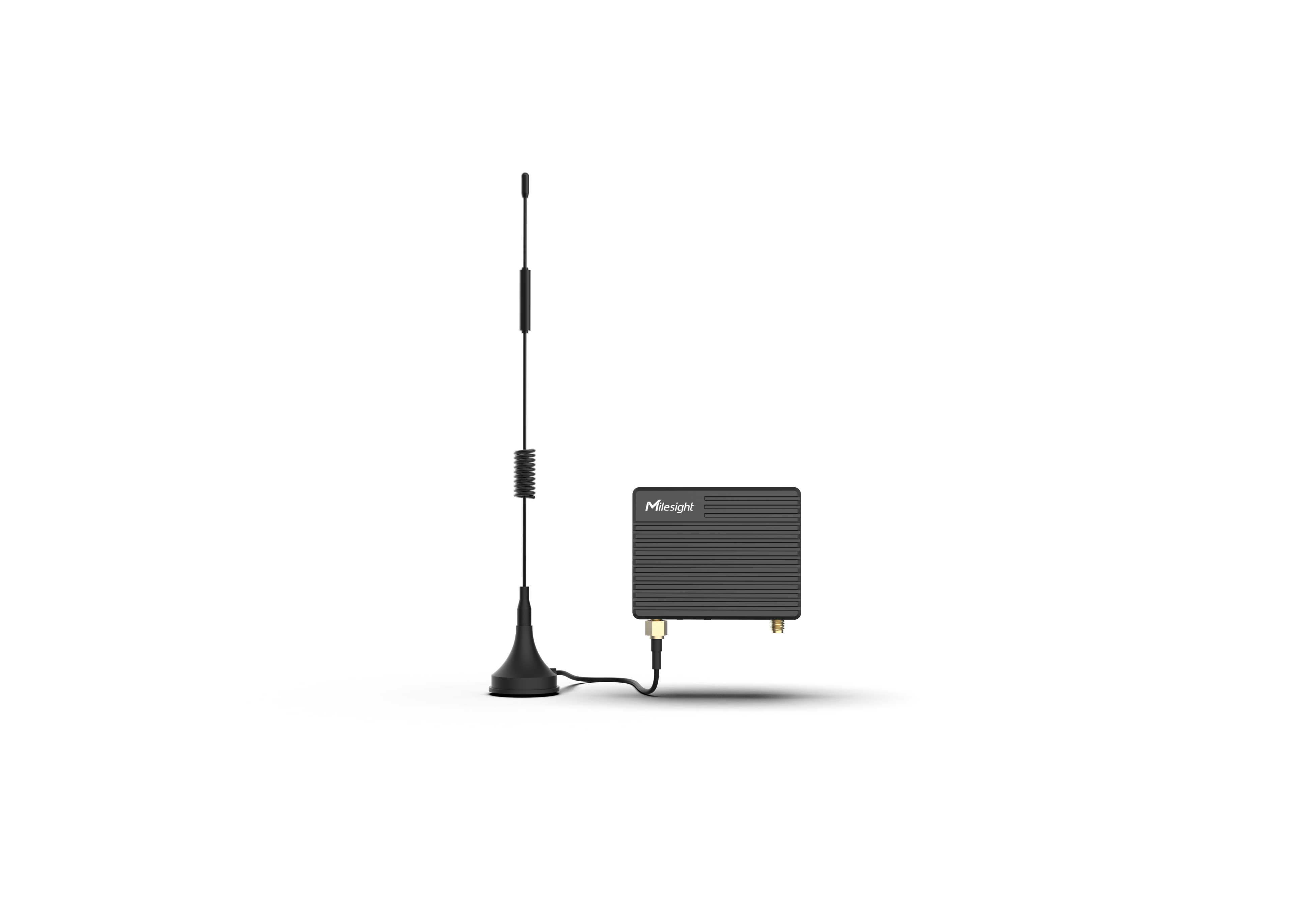

The Milesight UR41 Mini Industrial Router is a robust and versatile solution that supports 4G connectivity, offering a wide array of industrial interfaces such as DI, DO, RS232, or RS485 to accommodate various local data access needs. Its built-in watchdog functionality and secure VPN tunnels ensure a reliable, secure, and easily maintainable solution, facilitating stable data transmission and high-speed mobile connectivity.
Designed with compactness and industry standards in mind, the UR41 router offers flexibility in numerous installation and deployment contexts. It features an energy-efficient design with idle and standby modes, providing an eco-friendly alternative for users.
Furthermore, the UR41 can be remotely managed and monitored through the Milesight DeviceHub, which enhances its applicability across a broad range of scenarios. From vending machines and robots to industrial equipment and other IoT applications, the UR41 delivers optimal cost-effectiveness and performance.
Secure, Efficient, and Versatile: The Milesight UR41 Mini Industrial Router Redefines Connectivity
Features
- Key Features
- Streamlined and compact, ideal for small embedded applications
- Universal 4G LTE CAT4/3G connectivity across multiple carrier networks
- Conveniently connects to a variety of wired devices through DI/DO/RS232/RS485 interfaces
- Energy-efficient design for both idle and standby mode, providing an eco-friendly solution for users
- Compact 4G Connectivity for Small Embedded Applications
- Lightweight, palm-sized design
- Universal 4G LTE CAT4/3G network compatibility across multiple carriers
- Robust Industrial-Grade Design
- Features an industrial-grade NXP processor
- Durable enclosure with IP30 protection
- Versatile desk or wall mounting options
- Extensive operating temperature range from -40°C to 60°C/-40°F to +140°F
- Enhanced Security & Reliability
- Safe transmission with VPN tunnels like IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
- Includes a hardware watchdog to recover automatically from various failures, ensuring the highest level of availability
- Supports access control lists, DMZ, DDoS Protection, Filters, SPI firewalls
- Establishes a secure mechanism for centralised authentication and authorisation of device access by supporting AAA (Radius, TACACS+, LDAP, local Authentication) and multiple levels of user authority
- Effortless Maintenance
- DeviceHub offers simple setup, mass configuration, and centralised management of remote devices
- User-friendly web interface design and multiple upgrade options make device management straightforward and easy
- WEB GUI and CLI provide administrators with simple management and quick configuration capabilities for numerous devices
- Efficiently manage remote routers on the existing platform through the industrial standard SNMP and TR069
Integrated GPS and Global Navigation Satellite System (GNSS)
The Milesight UR41 includes GPS and GNSS (Galileo, Glonass, and Beidou) capabilities for real-time location tracking of remote assets and accurate time-stamp usage.
Superior Power Management with Minimal Idle Mode Consumption
With power consumption as low as 60mA in idle mode and fast network response from standby mode, the Milesight UR41 protects power sources by reducing power consumption to a target of 6.3mA in standby mode.
DeviceHub for Efficient Management
Milesight’s DeviceHub offers a high-efficiency, low maintenance solution for deploying Milesight Industrial Cellular Routers across multiple locations, reducing complexity and increasing productivity with central management, device status monitoring, and remote & bulk configuration capabilities.
MilesightVPN Support
UR41 supports connection and management with MilesightVPN, offering easy connection via authentication code, connection status overview, and remote and secure access to field devices.
- Key Features
-
SPECIFICATIONS
Hardware System
CPU ARM Cortex-A7, 528 MHz Memory 128 MB DDR3 RAM and 128 MB Flash Cellular Interface
Network 4G LTE (CAT 4)/WCDMA/GSM Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: SMA Female) SIM Slot 1（Nano SIM-4FF） Ethernet Interface
Numbers 1 × 10/100 Mbps LAN Port Mode Full or Half Duplex (Auto-Sensing) GNSS
Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: SMA Female) Technology GPS/GLONASS/Beidou/Galileo/QZSS Serial Interface
Number 1 × RS232 or 1 x RS485 (Software Switchable) Connector 3.5mm Terminal Block Terminal Resistor 1 × 120 Ω Resister Switch (for RS485) Baud Rate 300bps to 230400bps DI/DO
Numbers 1 × DI (dry contact) + 1 × DO (wet contact), Galvanic Isolation Connector 3.5mm Terminal Block Maximum V/A 0.3A@30VDC (DO) Others
Reset Button 1 × RESET USB 1 × USB 2.0 (Type-C) for Power Supply, Network Supply and Debug LED Indicators 1 × SYSTEM，1 × SIM Built-In Watchdog, Timer Software
Network Protocols IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, SSH, MQTT, TR069, etc. VPN DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE, MilesightVPN Security SPI Firewalls, Access Control (ACL), DMZ, Port Mapping, MAC Binding, DoS&DDoS Protection, Filtering(IP&Domain) Management Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub AAA Radius, Tacacs+, LDAP, Local Authentication Multilevel Authority Multiple Levels of User Authority Serial Port Transparent(TCP Client/Server, UDP), Modbus Client/Server, Modbus Gateway (Modbus RTU to Modbus TCP) Power Supply and Consumption
Power Connector 2-pin 3.5 mm Terminal Block Power Input 1. 5-24 VDC, with Surge-Protection and Reverse Polarity Protection
2. 5V/1A by USB Type-C PortPower Consumption Idle: 78mA@12V
Data link: 226mA (peak)@12V
Standby mode: 6.3 mA@12VPhysical Characteristics
Ingress Protection IP30 Housing and Colour Metal, Black Weight 103g Dimension 70 x 55 x 22 mm (2.76 x 2.17 x 0.87 in) (Antenna Connector Excluded) Installation Desktop, Wall Mounting Environmental
Operating Temperature -40°C to +60°C (-40°F to +140°F) Storage Temperature -40°C to +85°C (-40°F to +185°F) Ethernet Isolation 1.5 kV RMS Relative Humidity 0% to 95% (Non-condensing) Approvals
Regulatory CE, FCC Environmental RoHS
Milesight UR41 – Mini Industrial Cellular Router
$361.00 ex GST
The Milesight UR41 Mini Industrial Router is a compact, robust device that offers 4G connectivity and a variety of industrial interfaces. Built for reliability and security, it provides stable data transmission and high-speed mobile connectivity. Its energy-efficient design and remote management capabilities make it a versatile, eco-friendly solution for various IoT applications.
