OVERVIEW
These Milesight-compatible temperature probes are designed to support reliable cold chain monitoring during the storage and transportation of temperature-sensitive goods. With support for a wide variety of probe types, they offer the flexibility needed to monitor different cargo, environments, and temperature ranges with confidence.
The range includes A-class and B-class probes, A-class food-grade probes, and A-class probes for cryogenic solution temperature monitoring. From PT100 to DS18B20 and TH probes, users can select the probe that best matches their industry requirements, accuracy needs, and operating conditions — all while using the same compatible logging device.
These probes are compatible with the Milesight TS30x Single and Dual Connection Temperature Sensor, and TS602 Temperature and Humidity Sensor, making it easy to adapt one monitoring solution to multiple cold chain scenarios while helping reduce product loss, maintain quality, and support regulatory compliance.
-

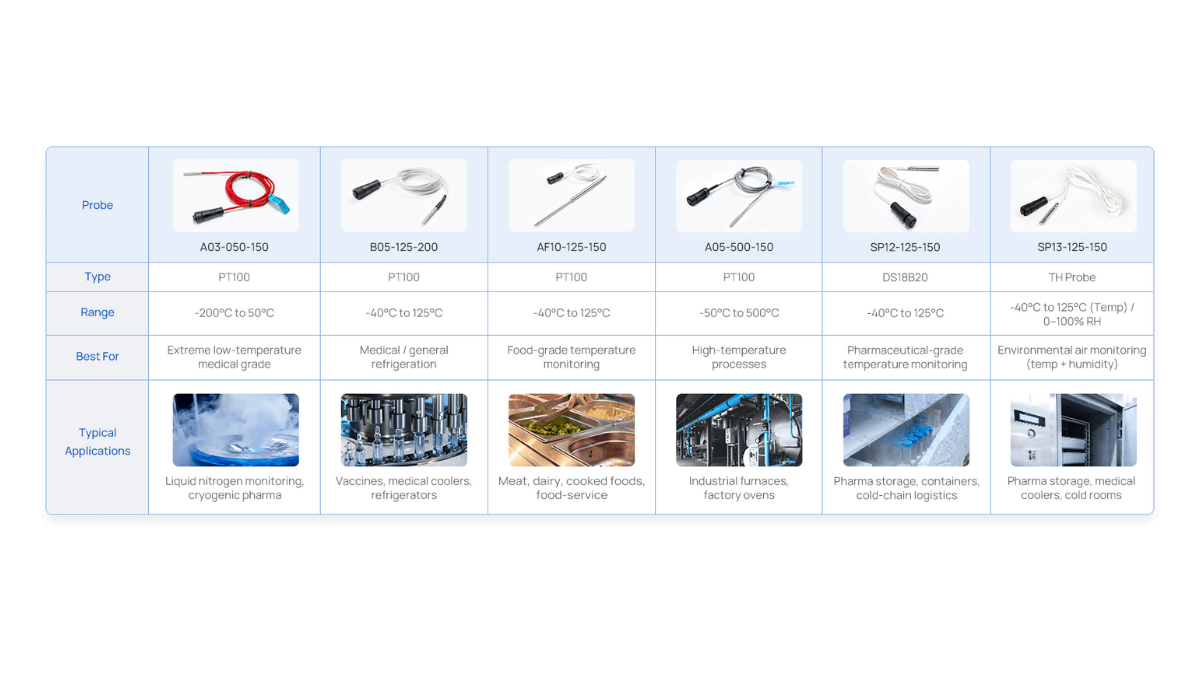

COMPARISON TABLE
Probe High Accuracy, Low Temperature Sensor -200°C ~ 50°C (3cm) General Use Temperature Sensor -40°C ~125°C (5cm) Food Grade Temperature Sensor -40°C ~125°C (10cm) High Accuracy, High Temperature Sensor -50°C ~ 500°C (5cm) Temperature DS18B20 Probe (1.5m) Temperature and RH Probe (1.5m) Part number A03-050-150 B05-125-200 AF10-125-150 A05-500-150 SP12-125-150 SP13-125-150 Type PT100 PT100 PT100 PT100 DB18B20 TH Probe Accuracy Class A B A A – – Measuring Range -200°C to 50°C -40°C to 125°C -40°C to 125°C -50°C to 500°C -40°C to 125°C -40°C to 125°C (temp) / 0-100% RH Accuracy Typ.:
± 0.5°C
(-175°C~50°C), ± 0.55°C
(-200°C~-175°C)Typ.:
± 0.5°C
(-40°C~40°C), ± 1°C
(40°C~125°C)Typ.:
± 0.4°CTyp.:
± 0.4°C
(-50°C~125°C), ± 1.15°C
(125°C~500°C)Typ.：
± 0.5°C (-10°C~85°C), ± 2°C (-40°C~-10°C, 85°C~125°C)Temperature typ.:
± 0.3°C (-40°C~0°C), ± 0.2°C (0°C~65°C), ± 0.5°C (65°C~125°C)
Humidity Typ.
[2][3]:：
± 2% RHBest for Extreme low temperature medical grade Medical / general refrigeration Food-grade temperature monitoring High-temperature processes Pharmaceutical-grade temperature monitoring Environmental air monitoring (temp + humidity) Typical Applications Liquid nitrogen monitoring, cryogenic pharma Vaccines, medical coolers, refrigerators Meat, dairy, cooked foods, food-service Industry furnaces, factory ovens Pharma storage, containers, cold-chain logistics Pharma storage, medical coolers, cold rooms Drift – – – – Typ.:
±0.2°CTyp.:
0.03°C/yearSensor Probe Straight tube, 304
Stainless Steel, Φ4*30
mm, IP67Straight tube, 304
Stainless Steel, Φ4*50
mm, IP67Needle, 316 Stainless
Steel (Food Grade), Φ4*100 mm, IP67Straight tube, 304
Stainless Steel, Φ4*30
mm, IP30Straight tube, 316
Stainless Steel, Φ6*50
mm, IP67Straight tube, 304
Stainless Steel, Φ6*50
mm, IP67Cable 1.5 m, Teflon, -200 °C~290 °C 2 m, PVC, -30 °C~105 °C 1.5 m, Silicone (Food
Grade), -60 °C~250 °C1.5 m, Fiberglass, -50 °C~500 °C 1.5 m, PVC, -40 °C ~ 125 °C 1.5 m, PVC, -40 °C ~ 125 °C Installation Contact Contact, Thermal Buffer
Bottle Installation(Opt.)Insert Installation Contact Contact Contact Compatible with TS301/TS302/TS602 TS301/TS302/TS602 TS301/TS302/TS602 TS301/TS302/TS602 TS201/TS602/TS301/TS302 TS602/TS301/TS302
Milesight TS Series – Temperature Probes
Price range: $17.00 through $40.00 ex GST
A versatile range of external temperature probes designed for use with Milesight TS Series Sensors, supporting accurate and reliable temperature monitoring across food, pharmaceutical, and storage applications.
