OVERVIEW
With increasing demand for improved product quality and efficiency, energy saving, predictive maintenance and emission reduction, thermal imaging cameras and systems play an important role in modern and industrial processing.

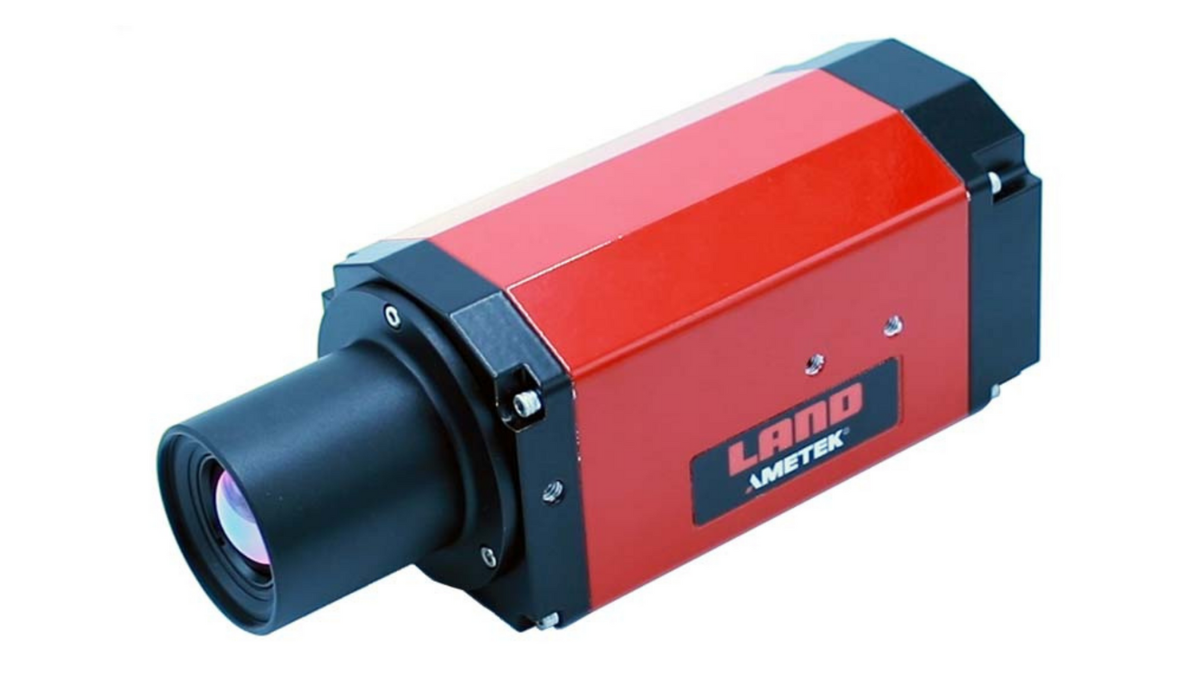

The new LWIR-640 long-wavelength thermal imager builds on more than 20 years of thermal imaging experience, expanding the market-leading range of AMETEK Land temperature measurement solutions.
It provides a full temperature measurement range of -20 to 1000 °C (-4 to 1832 °F) in three ranges with a choice of different optics and lenses.An integrated webserver with multiple I/O options enables the camera to be used autonomously or easily integrated into new or existing process control systems. The webserver provides easy camera access, control and setup, using a standard browser.
The LWIR-640 measures and streams live true-temperature images at up to 60 frames per second, providing high-precision temperature measurements and thermal profiles to continuously control, document, and visualise industrial processes.

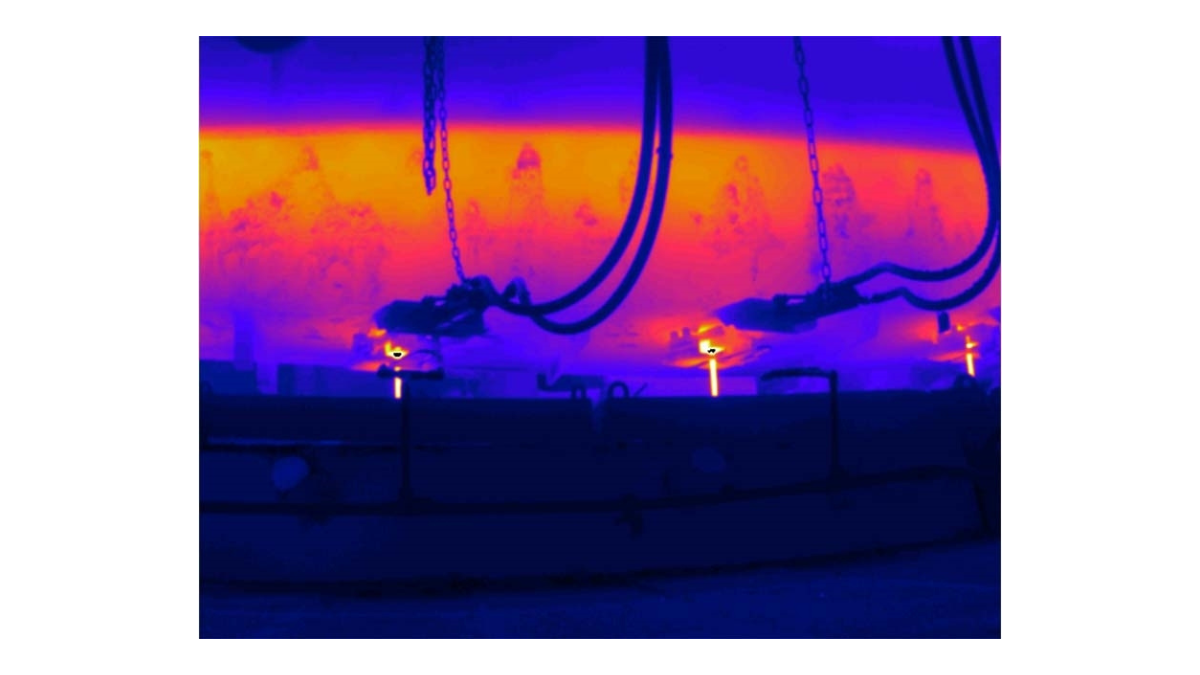

Industrial Thermal Imaging
Designed for use in harsh industrial and environmental conditions, the LWIR-640’s smart, Industry 4.0 capabilities, bi-direction digital interfaces and on-board I/O provide reliable and robust, real-time thermographic measurement and imagery in industrial processes.

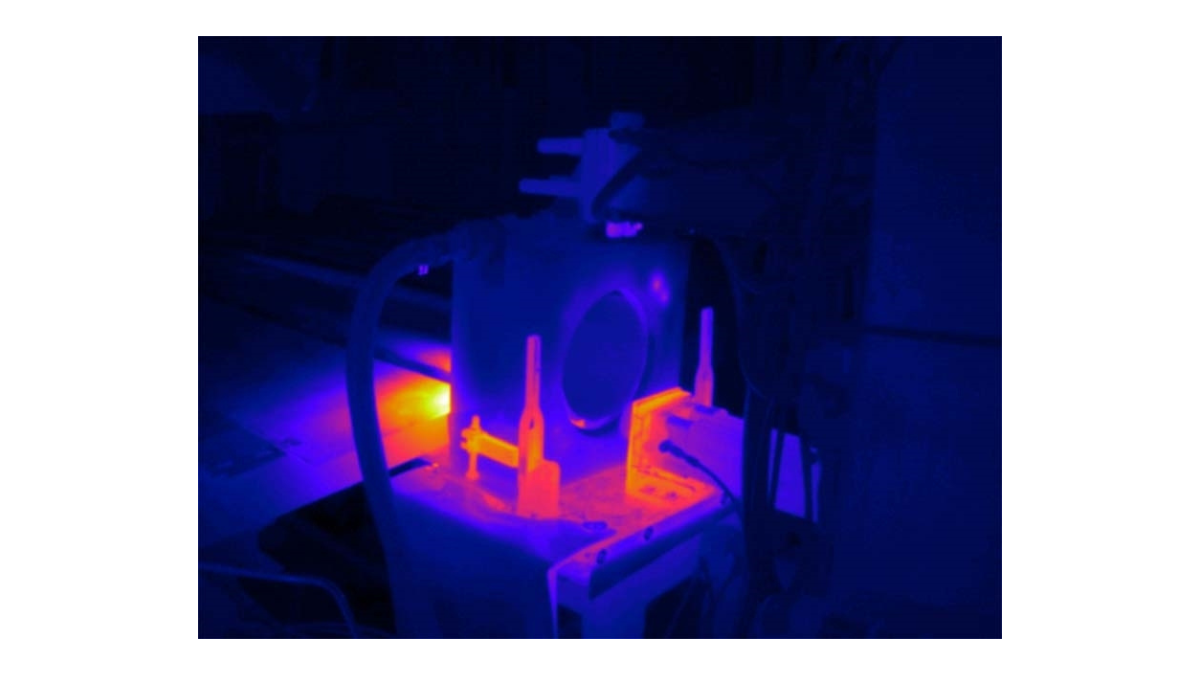

Advanced Image Resolution
The pixel resolution of 640 x 480 pixels and the high thermal resolution deliver uniquely clear and detailed thermal images and videos, at up to 60 Hz frame rate. This unmatched image quality supports highly accurate process visualisation and control.
Innovative Software Analysis
Advanced IMAGEPro image and data processing software offers real-time analysis of thermal images, giving users an exceptional level of understanding and control of their process. It also enables monitoring and configuration of up to 16 imagers.
-
SOFTWARE
IMAGEPro
The innovative IMAGEPro software is an advanced image processing software for controlling, monitoring, analysing and capturing imager data.
Download Software >>
IMAGEPro is a Windows PC software system that enables configuration of imager, display properties and advanced temperature analysis options and supports multiple simultaneous imagers. Free 30-day trial available for extensive testing.
Able to monitor and control up to sixteen imagers, IMAGEPro offers real-time analysis for thermal imager ranges. Giving users exceptionally detailed control over their thermal imaging measurements, IMAGEPro enhances application processing.
-
SPECIFICATIONS
IMAGER UNIT
Measurement Range: -20 – 120 °C / -4 – 248 °F 0 – 500 °C / 32 – 932 °F
100-1000 °C / 212 – 1832 °F
Pixel Resolution: 640 x 480 Pixel Size / Pitch: 17 μm Spectral Response: 8 to 14 μm Max Frame Rate: 60 fps* / 7.5 fps Detector: 640 x 480 Uncooled Amorphous Silicon detector Optic (HFOV x VFOV): 50° x 37 ° / 25° x 19° / 12° x 9° / 6° x 4° Focus Range: Min 0.3 m to infinity (motorised focus) – (25° & 50°) Min 0.75 m to infinity (motorised focus) – (12°)
Min 10 m to infinity (motorised focus) – (6°)
Accuracy: 1.5% or 2 °C of reading NETD: 40 mK (@ 20 °C) (-20 to 120 °C) 7.5 Hz Dimensions: 80 x 80 x 222 mm (max) / 3.14 x 3.14 x 8.7 in (including lens) Power Rating: 12 to 24 V DC, +/-10% 12W / IEEE 802.3 at PoE+ Weight: 1.6 kg / 3.5 lbs Ambient Temperature: -20 to 60 °C / -4 to 140 °F (0 – 95 % humidity, non-condensing) Environmental Rating: IP65/ NEMA 4 Compliance: EMC (EN 61326-1) CONNECTIVITY AND SERVICES

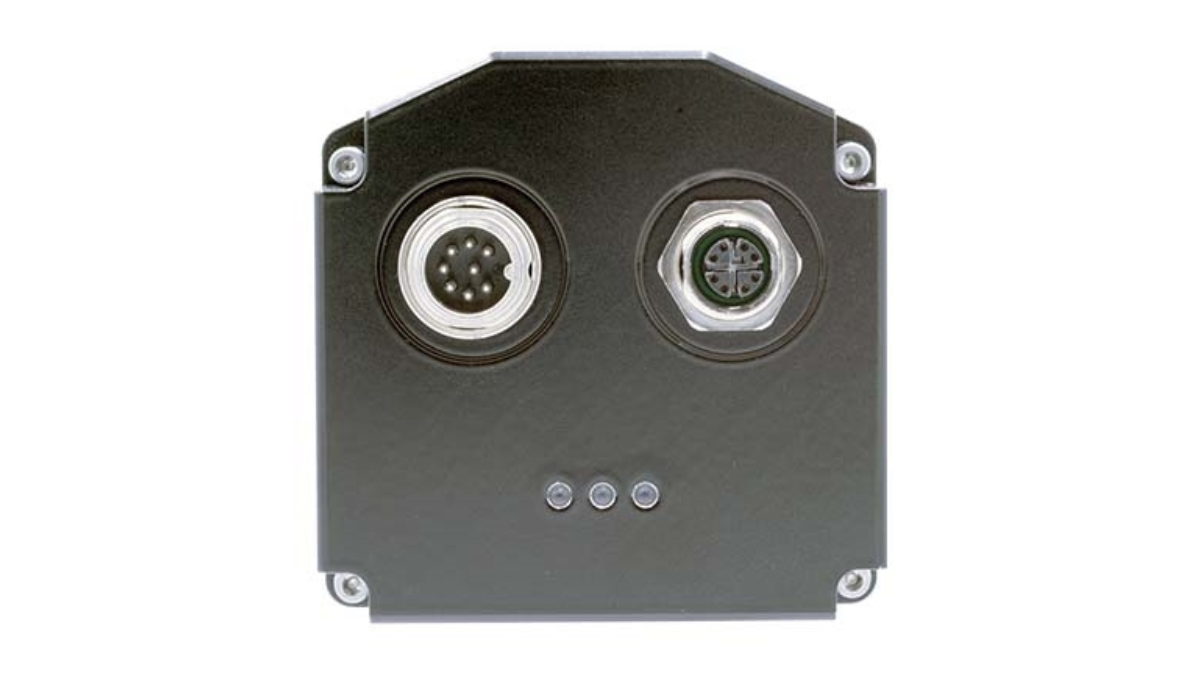

Digital Connections: M12 X coded 8way connector: 10/100/1000 Ethernet & IEEE 802.3 at PoE+ Analog Connections: 8 pin Binder Connector: 2pins – 12-24V DC Power Input
6 pins Functions can be assigned to internal image processing algorithms
1 x 4 -20mA output
1 x 4 -20mA output OR relay output
1 x 4 -20mA input OR Digital Input OR relay output
Camera Web Browser for alignment & internal image processing analog I/O setupSignal-LED: Visible on rear of camera instrument 3 x LED – Power / Status, Ethernet Comms & Camera internal temperature Service: Water, instrument air for cooling and window purging using optional enclosures SMART FUNCTIONALITY
Integrated Webserver: Remote access via Gbit ethernet interface
Integrated webserver provides live thermal imageAutonomous Operation: 3 ROI’s and configuration of integrated I/O’s for full autonomous operation THERMAL IMAGING PSU MODULE (UL APPROVED)
Components & Connections: Power supply, GBit Ethernet communications (switch)/ PoE+, Fibre optic data connection Environmental Rating: IP65 / NEMA 4 Size: 380 x 380 x 211 mm / 15 x 15 x 8.3 in Weight: 15 kg / 33.07 lbs UL Approval: Listed to UL508A & CSA-C22.2 No. E499440 IMAGE PROCESSING
Integrated Webserver: Integrated webserver accessible via standard web browser Software: IMAGEPro, IMAGEPro Application Specific (e.g Asset Monitor) Workstation: PC-Worksation (option) Interfacing: Open Data Interface, Modbus TCP, Moxa I/O unit STANDARD ACCESSORIES
Accessories (optional): Thermal Imaging PSU Modules (UL Approved), Process Imager Power Supply, Industrial Housing Assembly and Purge, Light Housing with Purge, Cables, Brackets, Blower System, Software and Workstation *60Hz instruments are subject to different export restrictions in different authorities and countries around the world. All sales must be subject to export licence review.
For field of view information see the datasheet below.
Land LWIR-640 – Thermal Imager
