OVERVIEW
The JUMO flowTRANS MAG H20 is an electromagnetic flowmeter for industrial automation. The electromagnetic flowmeter measures the flow and temperature of conductive liquid media. It is mounted in pipes made from plastic or metal. Its compact design allows it to fit into the smallest plants (dosing systems, apparatus cooling) and to measure conductive media with a high degree of precision. TRI-Clamps allow process-oriented use in the hygienic industry. The usual G-type external threads are available as well.
Streamline Your Operations Across Industries
Areas of application
- Food and beverage industry
- Auxiliary facilities for additional industries (including cooling water, process water)
Special features
- Compact design
- Precise measurement of extremely small volumes
- Single Pair Ethernet interface (SPE)
- Also with Tri-Clamp connection (securely welded)
- Configurable analog outputs for IO-Link variant
- Connection to JUMO Cloud for SPE variant
- Configuration via JUMO smartCONNECT app
-
SPECIFICATIONS
Flow Rates 0.005 to 150 l/min Medium Temperature Up to 90 °C Insertion Length 110 mm (except TRI-Clamp DN 25) Inlet and Outlet Section ≥ 0 DN/≥ 0 DN Inputs and Outputs SPE with PoDL (Modbus TCP, JUMO Cloud connector), IO-Link (incl. analog/digital inputs/outputs) Protection Type IP65/IP67/IP69

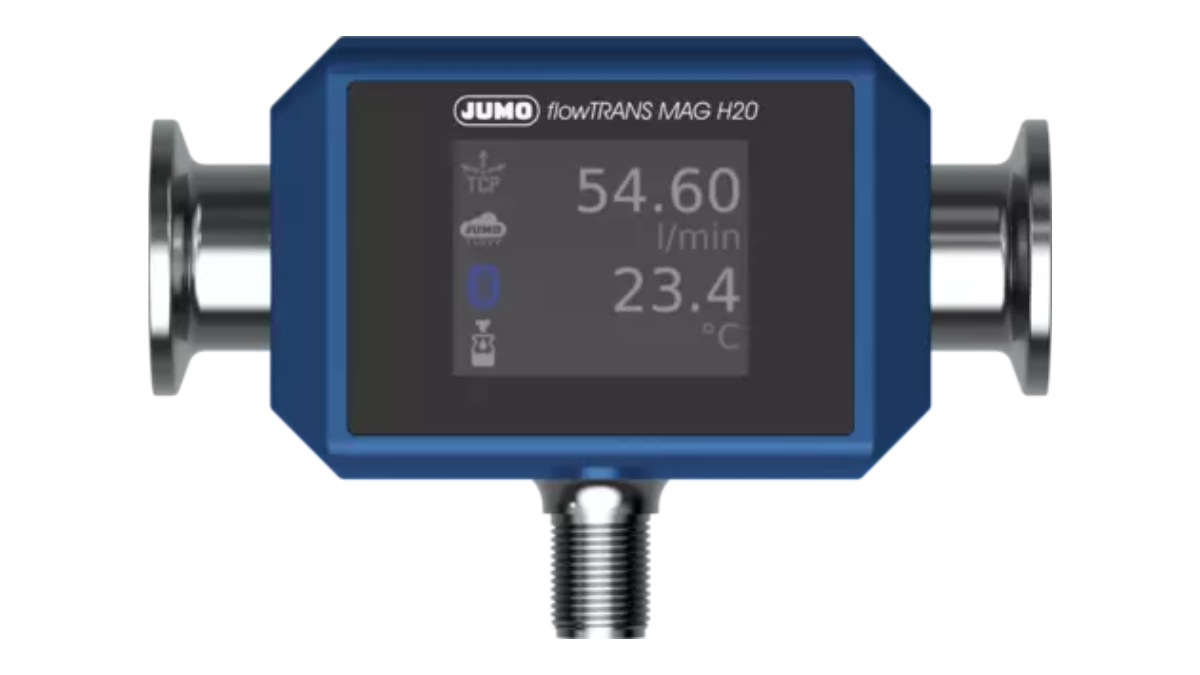

JUMO flowTRANS MAG H20 Flow Transmitter
The JUMO flowTRANS MAG H20 is a compact electromagnetic flowmeter designed for industrial automation. It measures flow and temperature of conductive media with precision, and features TRI-Clamp connections and versatile G-type external threads, making it ideal for both small systems and sanitation-critical environments.
