OVERVIEW
Features
- Automatic pH calibration – up to 5 points (NIST, USA pH buffers) / up to 6 points (DIN pH buffers)
- 0.01 pH resolution
- Offset and average slope display
- ORP calibration option
- Automatic / manual temperature compensation and temperature calibration function
- Automatic (up to 4 points) and manual (up to 5 points) conductivity calibration
- Adjustable reference temperature and temperature coefficient
- Adjustable cell constant and selectable measurement unit
- Conductivity and total dissolved solids (TDS) conversion
- Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
- Two (2) salinity calibration curves: NaCl, Seawater
- With real-time clock and date/time stamp for GLP compliance
- Auto log data; built-in memory can store up to 1000 data
- Auto shut-off (programmable: up to 30 minutes)
- Auto stable, auto hold, and real time measurement modes
- Calibration alarm (programmable: up to 90 days)
- Built-in electrode holder allows 2 electrodes to be attached
- Monochrome LCD with white LED backlight: 50 x 50 mm
- Phono jack output for connecting meter to computer via PC (USB) cable for data collection and software upgrade and to printer via printer (RS232) cable for printout
- Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
- Powered by 2 x AA batteries
- Packaged with electrodes and calibration solutions in carrying case
- 3 years meter warranty

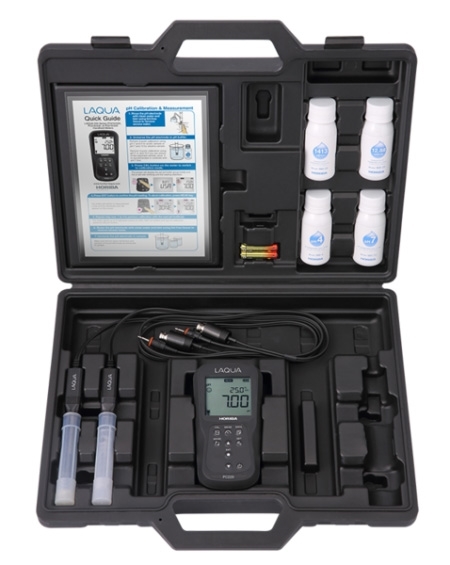

Meter Kit
PC220-K
Package Details:
- LAQUA PC220 dual channel pH/ORP/Cond/TDS/Res/Sal/Temp meter
- 2 x AA batteries
- Manual and quick guide
- 9652-10D plastic-body, gel-filled pH electrode with integrated temperature sensor
- 9383-10D plastic-body, Ti/Pt black, conductivity probe (k=1.0) with integrated temperature sensor
- pH 4.01 and 7.00 buffers, 1413µS/cm and 12.88 mS/cm conductivity solutions (60ml each)
- Electrode adapter
- Carrying case
PC220-KN: Kit with pH 4.01 and 6.86 NIST buffers (60ml each) is available upon request.
Manufactured by HORIBA
-
SPECIFICATIONS
Model
LAQUA PC220
pH/ORP/Cond/TDS/Res/Sal/Temp (°C/°F)
pH Range -2.00 to 16.00 pH Resolution 0.01 pH Accuracy ± 0.01 pH Calibration Points Up to 5 (USA & NIST), Up to 6 (DIN) Buffer Options USA, NIST, DIN ORP Range ± 2000 mV Resolution 0.1 mV (< ±1000 mV), 1 mV (≥ ±1000 mV) Accuracy ± 0.3 mV (< ±1000 mV), 0.3% of reading (≥ ±1000 mV) Calibration Option Yes Conductivity Range …µS/cm to 200.0 mS/cm (k=1.0) Resolution 0.05% full scale Accuracy ±0.6% full scale; ±1.5% full scale > 18.0 mS/cm Reference Temperature 15 to 30 °C (adjustable) Temperature Coefficient 0.00 to 10.00% (adjustable) Cell Constant 0.1, 1.0, 10.0 (adjustable) Calibration Points Up to 4 (Auto) / Up to 5 (Manual) Unit Setting S/cm, S/m (Auto-ranging) TDS Range …ppm to 100 ppt (TDS factor=0.5) Resolution 0.01 ppm (mg/L) / 0.1 ppt (g/L) Accuracy ±0.1% full scale Calibration Curves Linear (0.40 to 1.00), EN27888, 442, NaCl Resistivity Range 0.000 Ω•cm to 20.0 MΩ•cm Resolution 0.05% full scale Accuracy ±0.6% full scale; ±1.5% full scale > 18.0 MΩ•cm Salinity Range 0.0 to 100.0 ppt / 0.00 to 10.00 % Resolution 0.1 ppt / 0.01 % Accuracy ±0.2% full scale Calibration Curves NaCl, Seawater Calibration Option Yes Temperature Range -30.0 to 130.0 °C / -22.0 to 266.0 °F Resolution 0.1 °C / °F Accuracy ± 0.5 °C / ± 0.9 °F Calibration Option Yes Memory Data 1000 Auto Log Data Yes Real-time Clock Yes Date & Time Stamp Yes Measurement Modes Auto Stable, Auto Hold, Real Time Offset / Average Slope Display Yes Calibration Alarm Yes (Programmable: up to 90 days) Auto Shut-Off Yes (Programmable: up to 30 minutes) Electrode Status Yes (On screen display) Diagnostic Messages Yes Software Upgrade Yes via PC (USB) cable PN 3200779639 PC Communication Yes via PC (USB) cable PN 3200779639 Printer Communication Yes via Printer (RS232) cable PN 3200779638 Meter Inputs 2 x BNC (for pH and conductivity electrodes), 2 x phono (for temperature sensors) Meter Output phono (for PC/printer connection) Display Custom LCD with backlight Housing IP67, shock & scratch resistant, non-slip Power Requirement 2 x AA batteries Battery Life > 500 hours Meter Dimensions 160 (L) x 80 (W) x 40.60 (H) mm Meter Weight Approx. 260g (with batteries) / 216g (without batteries)
Horiba PC220-K – PH, ORP, EC, TDS, Salinity, Res, Temp, data logging Kit
$1,748.00 ex GST
A Portable Meter kit for the measurement of PH/ORP/EC/TDS/Salinity/Res/Temp. With Data Logging
