Easily configure true RMA measurements with two channels

A 15-bit two-channel module accepts an input range of 5mV to 512mV and is compatible with 333mV FS output sensors. Field wiring is 2-wire via screw terminals.

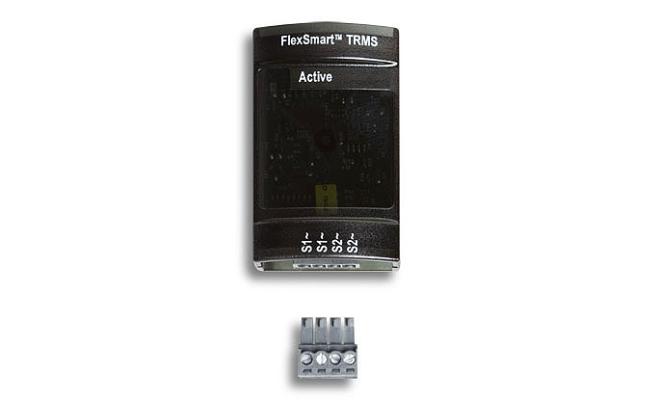

The S-FS-TRMSA is easy-to-configure, True-RMS input measurement modules. The S-FS-TRMSA is compatible with HOBO® H22 series data loggers. The 2-channel modules has an input range of 512 millivolts RMS full-scale and is fully compatible with industry-standard voltage and current transformers (PT and CT) which output 333 millivolts RMS full-scale.

The modules feature extremely low-power operation, resulting in long battery life for unattended data logging applications.

Features

• 2 input channels of AC Current and/or Voltage
• Measures True RMS for accurate readings of sinusoidal and non-sinusoidal waveforms



Input Channels	Two; AC-coupled
Field Wiring	Two-wire via screw terminals on detachable connector, 16-24 AWG Replacement detachable connectors: Part of spares kit (A-FS-TRMSA-4P-1)
Input Range	5 to 512 mVRMS
Minimum Input Voltage	5mVRMS; Input voltages < 5mV will be clipped to zero (see graph in manual)
Maximum Input Voltage	±1V referred to AC- terminals (pins 2 and 4)
Input Frequency	50/60 Hz
Accuracy	±0.3% of reading +/- 0.5% of FSR
ADC Resolution	15 bits
AC Waveform	<4 crest=”” factor=”” td=””>
Power Requirements	+3.3V @ 3mA active, 6A sleep
Transfer Function	See attached user manual for equation
Measurement Averaging Option	Yes
CE	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
