Designed to work with HOBO stations

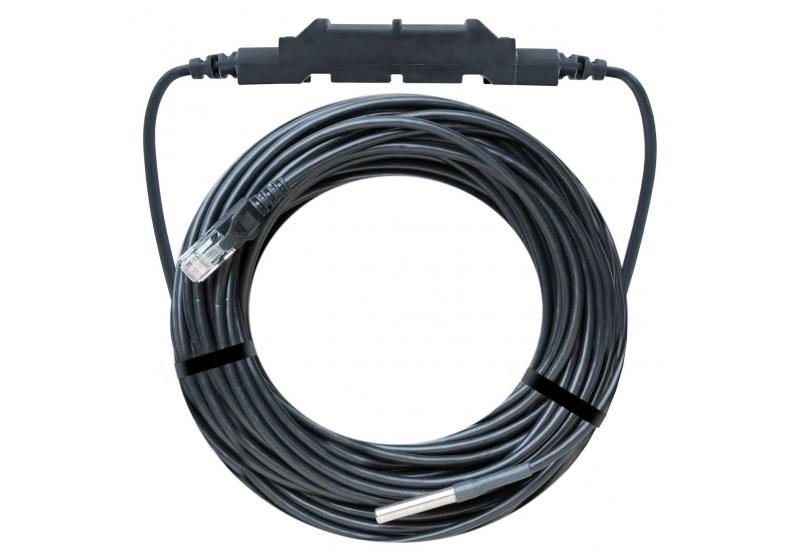

The 12-bit temperature smart sensor is designed to work with HOBO® stations. The smart sensor has a plug-in modular connector that allows it to be added easily to a HOBO station. All sensor parameters are stored inside the smart sensor, which automatically communicates configuration information to the station without any programming or extensive user setup.

The 12-bit Temperature Smart Sensor provides < ± 0.2° C total accuracy (< ±0.36° F) and resolution of < ± 0.03° C (< ±0.054° F) over the range of from 0° to 50° C (32° to 122° F). The full measurement range is -40° to 100° C (-40° to 212° F). A selectable measurement-averaging feature further improves accuracy. Reliable service is assured by a stainless steel sensor tip and robust cable rated for immersion in water up to 50° C for up to 1 year.

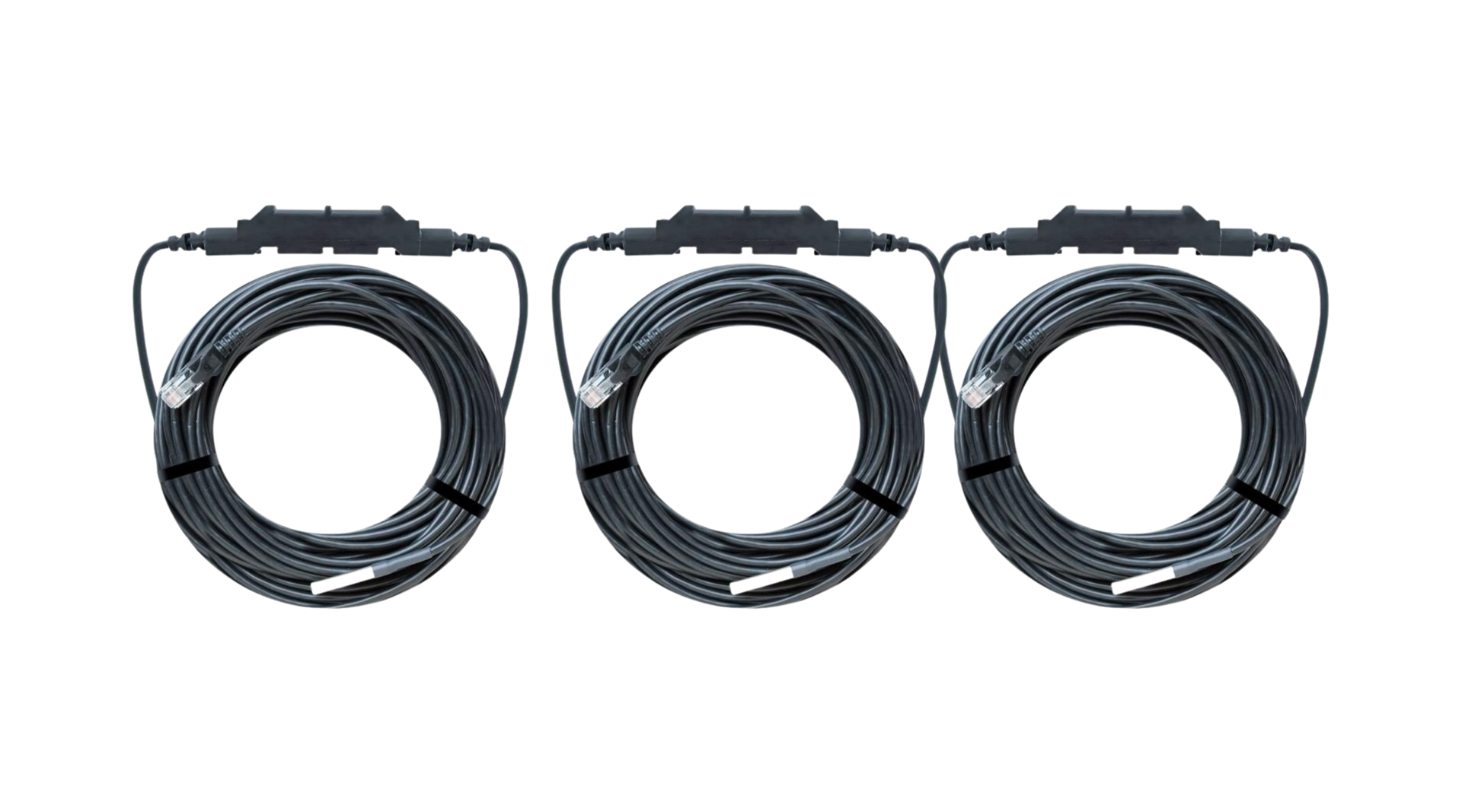

Available in cable lengths of 2m, 6m and 17m.

Also available in a wireless model for use with the HOBOnet Field Monitoring System.

Features

• Measurement range of -40° to 100°C (-40° to 212°F)
• Stainless steel sensor tip
• Sensor and cable rated for immersion in water or soil up to 50°C for up to 1 year



Measurement Range	-40° to 100°C (-40° to 212°F) – sensor tip
Accuracy	< ±0.2°C from 0° to 50°C (< ±0.36°F from 32° to 122°F)*
Resolution	<0.03°C from 0° to 50°C (<0.054°F from 32° to 122°F)
Drift	<0.1°C (0.18°F) per year**
Response Time (to 90% of change)	<2 minutes=”” typical=”” in=”” 2=”” m=”” sec=”” 4=”” 5=”” mph=”” moving=”” air=”” flow=”” br=””><1 minute=”” typical=”” in=”” stirred=”” water=”” bath=”” td=””>
Environmental Operating Ranges	Smart sensor adapter: -40° to 75°C (-40°F to 167°F); weatherproof, IP67 Stainless-steel sensor tip and cable jacket: Waterproof over the range of -40° to 50°C (-40°F to 122°F) for 1 year; operation up to 100°C (212°F) in air
Housings	Stainless steel waterproof sensor tip; weatherproof polyamide housing for smart sensor adapter
Dimensions	Temperature probe: 5.0 x 26 mm (0.2 x 1.0 inches)
Weight	2 meter: 94 g (3.3 oz) 6 meter: 147 g (5.2 oz) 17 meter: 318 g (11.2 oz)
Bits per Sample	12
Number of Data Channels***	1
Measurement Averaging Option	Yes
Cable Lengths Available	2 m (6.6 ft) S-TMB-M002 6 m (19.7 ft) S-TMB-M006 17 m (55.8 ft) S-TMB-M017
Length of Smart Sensor Network Cable	0.5 m (1.6 ft) for all models
CE	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

*Radiation Shield strongly recommended for use in sunlight (listed in Compatible Items)
**The drift specification of <0.1°C (0.18°F) per year may be exceeded when using the probe continuously in water >50°C (122°F).
***A single HOBO station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital communications portion of the sensor cables).
