OVERVIEW
Isolated Multi Channel Data Logger GL860 & 4 Terminals

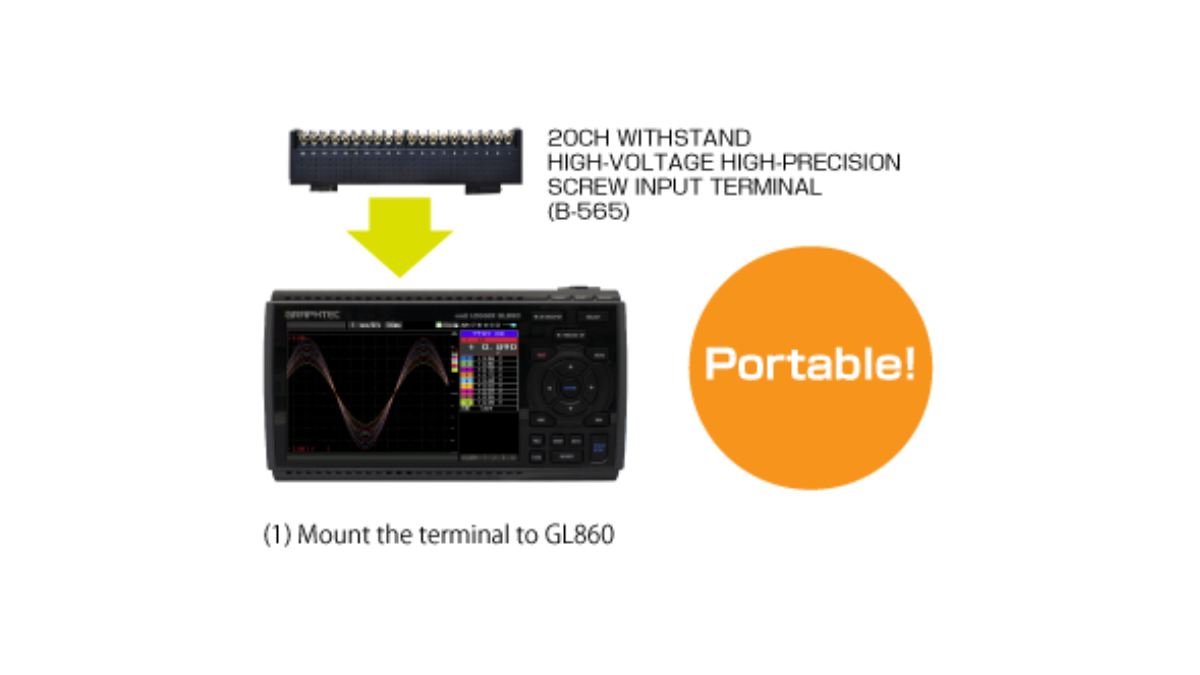

- 4 types of input terminals lineup including 30CH for the first time!

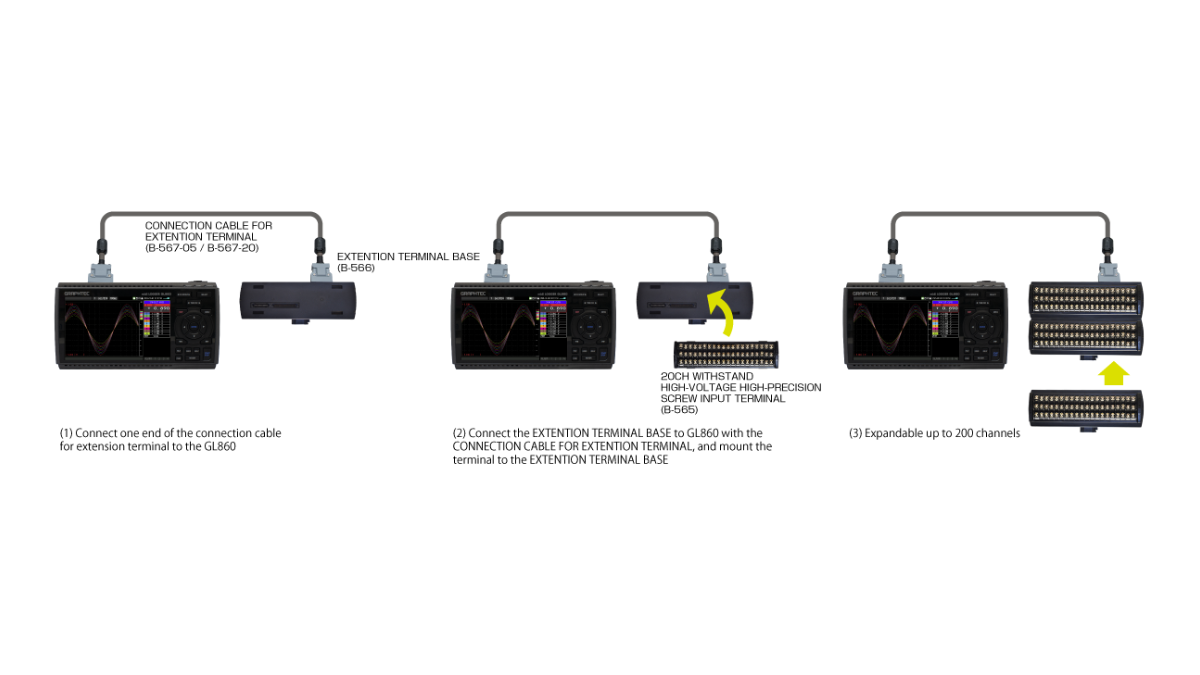

- Expandable from 20ch to max. 200ch, enabling measurement of various phenomena.
- Compatible with remote control service G-REMOTE.
- 6 new features:
- Faster sampling interval
- Memory loop functions
- CH copy function
- Alarm history
- Inter-CH operation
- Modbus communication
- Wireless measurement from your PC is available with the optional wireless LAN unit.
All Channel Isolated / Universal Input, Standalone Multi-Channel
Measure voltage
Supports wide operating range (from 20 mV to 100 V)
Measure temperature
Thermocouple: K, J, E, T, R, S, B, N, C（old W:WRe5-26)
RTD*: Pt100・JPt100・Pt1000(IEC751) – only 3 wire type is supported
*Please use B-565 for connecting the RTDMeasure current (4 -20 mA)
Shunt resistor (250Ω) is available as an option.
Equipped with a dedicated 1-5V range for the measurement range
Shunt resistance 250Ω (B-551)
*Cannot be used with the screwless terminalMeasure humidity
A humidity sensor is available as an option.
Power for the sensor is also supplied from the main unit.
Equipped with a dedicated humidity rangeDigital I/O port available
Digital I / O can be used by connecting an optional I / O cable.
＜Logic/Pulse inputs (4 channels)＞
Logic: No-voltage contact (A contact, B contact, NO, NC) ,Open collector, Voltage input (H.L decision)
Pulse: 3 types of selections (Rotation / Quantity count / Instantaneous) per channel<Alarm output: 4ch>
Alarm conditions can be set for each input channel.
Signal output from outputs 1 to 4 is possible in the event of an alarm. -
SPECIFICATIONS

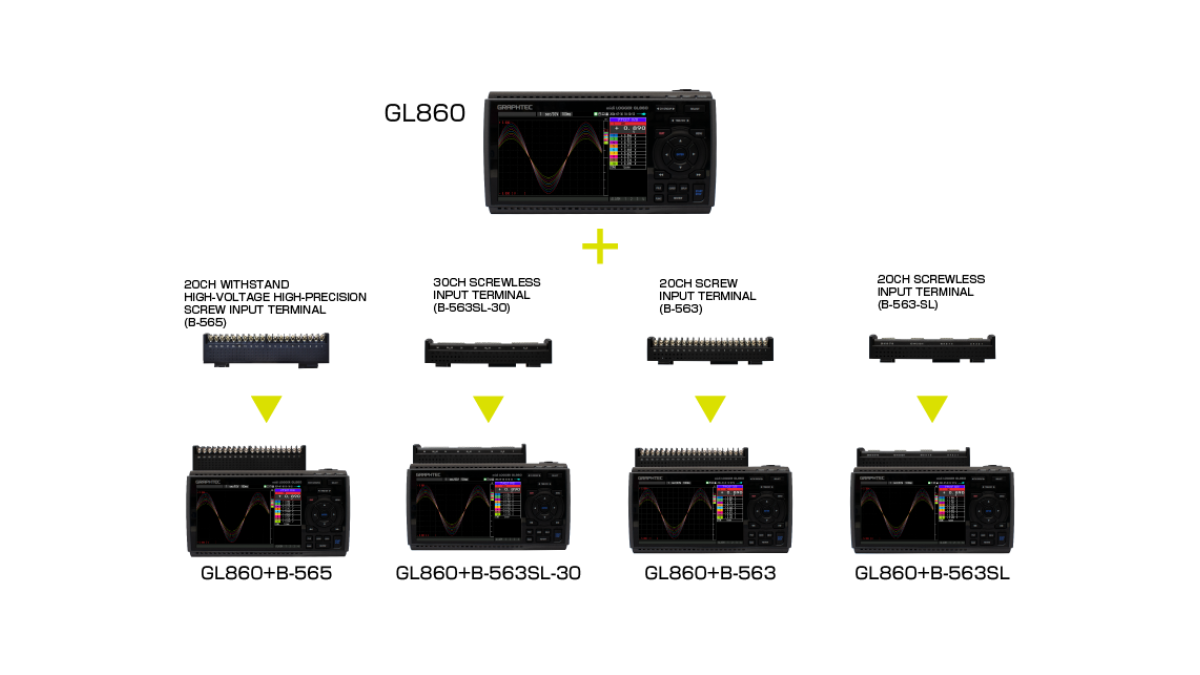

Terminal Specifications
B-565
Withstand High-Voltage, High-Precision Terminal
B-563SL-30
30CH Screwless Input Terminal
B-563
20CH Screw Input Terminal
B-563SL
20CH Screwless Input Terminal
Number of input channels 20ch 30ch 20ch 20ch Input terminal type M3 screw-type Screwless M3 screw-type Screwless Input method Photo MOS relay scanning system

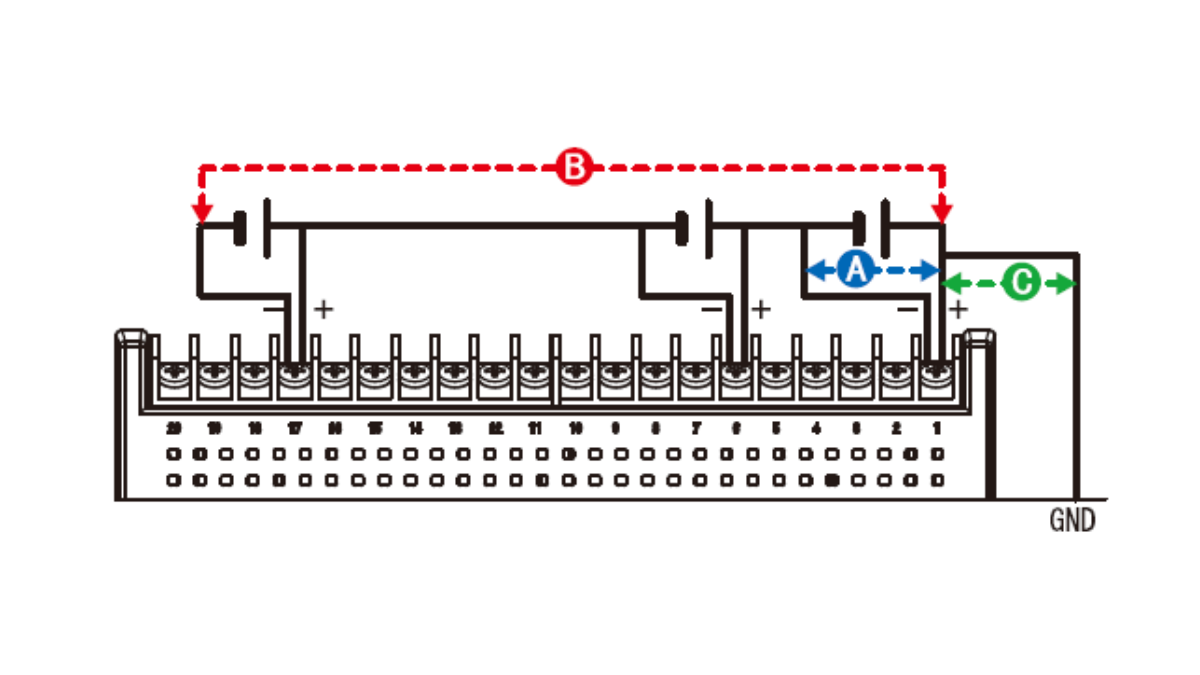

All channels isolated, balanced inputMeasurement ranges Voltage 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V, 1-5 V F.S. Temperature Thermocouples：K, J, E, T, R, S, B, N, C (W: WRe5-26) RTD (only 3 wire type is supported) : Pt100, JPt100, Pt1000(IEC751) (* RTD cannot be connected.) Temperature range: 100°C, 500°C, 2000°C (In the case of Fahrenheit: 150°F, 750°F, 3000°F) Humidity 0 to 100% (Optional humidity sensor B-530 is required) Maximum permissible input voltage Between +/– terminals 20mV to 2V range (60Vp-p)
5V to 100V range (110Vp-p)Between input terminal/input terminal 600Vp-p 60Vp-p Between input terminal/GND 300Vp-p 60Vp-p Withstand Voltage Between input terminal/input terminal 600Vp-p 350Vp-p 1 minute Between input terminal/GND 2300VACrms 1 minute 350Vp-p 1 minute Voltage measurement accuracy ±(0.05%ofF.S.+10μV) ±0.1% of F.S. Operating environment 0 to 45℃ Dimensions（*including GL860） 240×166×52.5mm (exclude protrusion) 240×158×52.5mm (exclude protrusion) Weight（*including GL860） 1035g (exclude AC adapter & battery) 1010g（exclude AC adapter & battery)
Graphtec GL860 Multi Channel Data Logger
$3,834.00 – $4,374.00 ex GST
The GL860 Isolated Multi-Channel Data Logger, with a choice of 4 terminals is your ultimate solution for precise and versatile data measurement. Designed with scalability in mind it offers expandability from 20 to 200 channels, making it ideal for monitoring complex systems.
