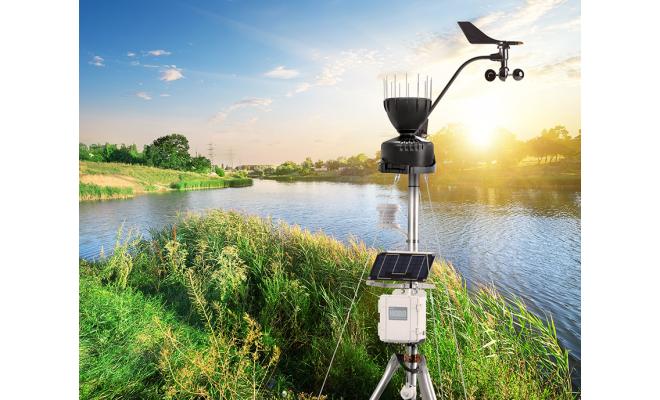

Plug and Play Compatibility – Easily Add this Sensor to HOBO Weather Stations

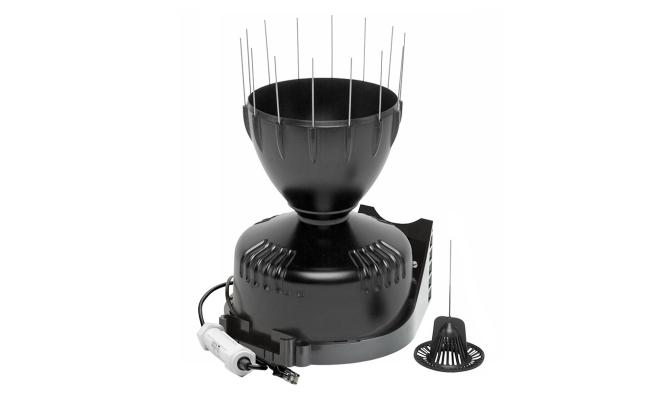

The Davis 0.2mm Rain Gauges features the AeroCone® design for better measurement accuracy in high-wind conditions, this 0.02 mm rain gauge sensor is plug-and-play compatible with all HOBO weather stations.

The smart sensor has a plug-in modular connector that allows it to be added easily to a HOBO station. All sensor parameters are stored inside the smart sensor, which automatically communicates configuration information to the logger without the need for any programming or extensive user setup.

Features

• Manufactured from UV-stabilized ABS plastic to provide cost-effective rainfall measurement
• Streamlined design reduces the amount of missed rain capture in windy conditions, resulting in more accurate rainfall data
• Improved debris screen locks in to ensure it remains in place during high winds
• 16.5 cm (6.5”) collector opening meets World Meteorological Organization (WMO) guidelines



Measurement Range	0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval
Accuracy	±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour
Resolution	0.01 in. (S-RGC-M002) or 0.2 mm (S-RGF-M002)
Operating Temperature Range	0° to 50°C (32° to 122°F), survival -40° to 75°C (-40° to 167°F)
Environmental Rating	Weatherproof
Housing	UV-stabilized ABS plastic
Mechanism	Tipping spoon with magnetic reed switch pivots on metal shaft
Dimensions	16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm2 (33.2 in.2) collection area
Weight	1.2 kg (2.7 lbs)
Bits per Sample	12
Number of Data Channels*	1
Measurement Averaging	No
Cable Length Available	2 m (6.6 ft)
Length of Smart Sensor Network Cable*	0.5 m (1.6 ft)
	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

* A single HOBO station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital communications portion of the sensor cables).
