OVERVIEW
The Ultimate Compact Sensor for Industrial Applications
The PyroSigma is a fixed-mount sensor for measuring the temperature of a surface without contact. Its extremely small size makes it ideal for installation where space is restricted. The sensor works by detecting infrared energy that is emitted by the target object. The temperature is shown on the sensor’s built-in OLED display, and can be monitored continuously via the DC voltage output, e.g. with industrial process instrumentation. The sensor also has a configurable alarm output.
Features
- Small, low-cost industrial infrared temperature sensor
- Side-entry cable: ideal for mounting in tight spaces
- Voltage output, selectable 0-10 / 0-5 / 1-5 V DC
- Measures temperatures from 0°C to 1000°C
- Fully configurable for averaging, hold processing, emissivity, output scale etc.
- Alarm output
- Low-profile housing for applications with limited headroom e.g. IR curing, dryers, laminating machines, switchgear cabinets etc
- Not designed or approved for fever detection
- Industrial infrared temperature sensor
- Built-in OLED temperature display
- Precision optics with narrow viewing angle
- Fast 125ms response with high stability
- Rugged aluminium and ABS housing
- Low cost and high performance

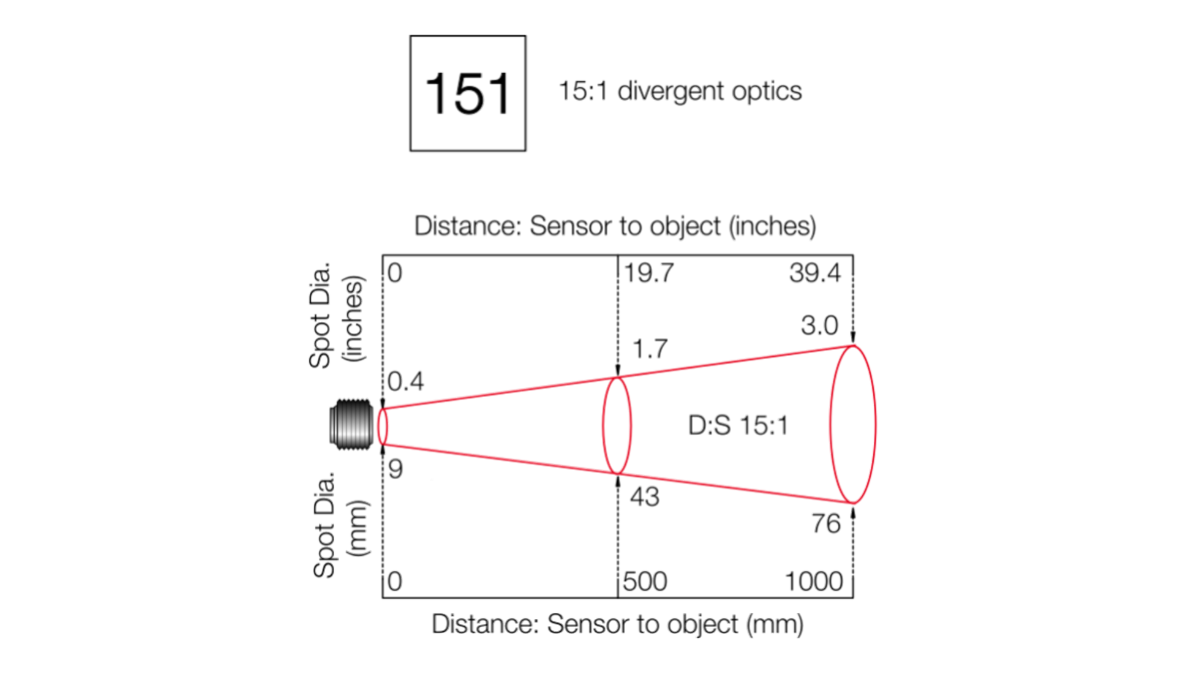

Please refer to product images or datasheet for field of view images.
Please note: Additional cable can be made to order. Please contact our team for a quote.
-
SPECIFICATIONS
Measurement Temperature Range 0°C to 1000 °C Analogue Output Selectable 0-5, 1-5 or 0-10 V DC, linear with
measured temperature, rescalable via
display & controlsAlarm Output Open collector alarm output with adjustable
temperature threshold and hysteresisAccuracy ± 1.5% of reading or ± 1.5°C, whichever is
greaterRepeatability ± 0.5% of reading or ± 0.5°C, whichever is
greaterEmissivity Setting Adjustable 0.20 to 1.00 via display & controls Response Time 125 ms Spectral Range 8 to 14 μm Supply Voltage (at Sensor) 24 V DC 6 V DC to 28 V DC
(12 V DC minimum if using 0-10 V output)Max. Supply Voltage (at Sensor) 28 V DC Min. Supply Voltage (at Sensor) 6 V DC Max. Current Draw 30 mA Max Temperature Span (Linear Output) 1000°C (full temperature range) Min Temperature Span (Linear Output) 100°C Open Collector Alarm Output 6 to 24 V DC, 50 mA max (see Connections) Mechanical
Construction Black anodised aluminium and blue ABS Cable Length 1 m as standard
(longer lengths available to order)Weight with 1m Cable 65 g Environmental and Conformity
Environmental (IP) Rating IP65 Ambient (Operating) Temperature Range 0°C to 70°C Ambient (Operating) Humidity 95% max. non-condensing Configuration
Configurable Parameters • Temperature range (linear output)
• Alarm output threshold and hysteresis
• Emissivity setting
• Reflected temperatureTemperature Units °C / °F Signal Processing Averaging Period (0.25 to 60 seconds) Peak / Valley / Hold Hold Period (0.25 to 1200 seconds) Electromagnetic Compatibility (EMC) EN61326-1, EN61326-2-3 (Electrical Equipment for
Measurement, Control and Laboratory Use – EMC
Requirements)RoHS Compliant Yes
Calex PyroSigma – Mini Pyrometer w/- Built-in Display (0-1000°C)
From: $459.00 ex GST
The PyroSigma is a compact, fixed-mount sensor that measures surface temperature without contact from 0-1000°C. it features an OLED display and configurable alarm output.
