OVERVIEW

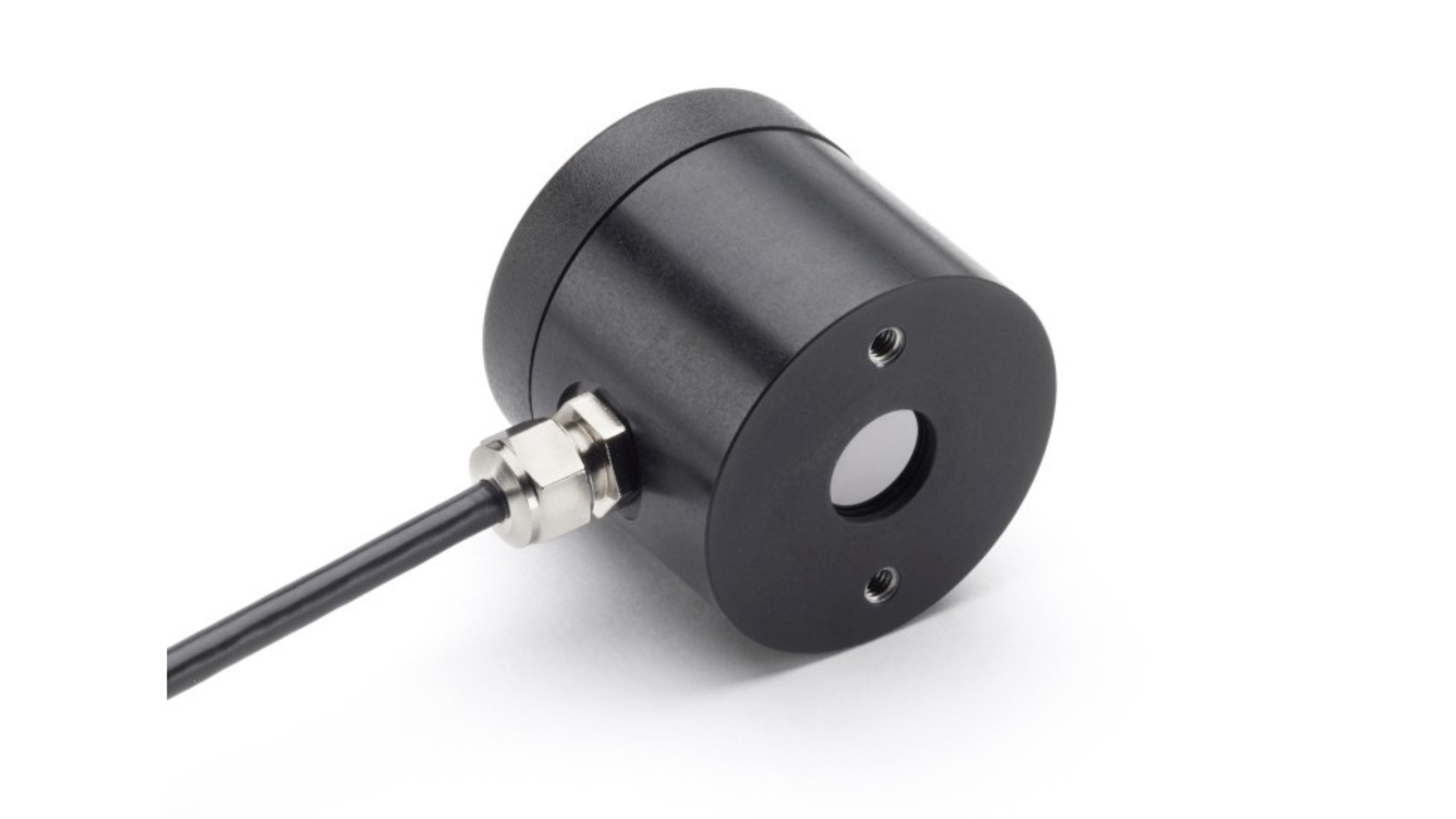

Accurately measure temperatures from 0°C to 1000°C with PyroNFC
The PyroNFC is a general-purpose infrared temperature sensor. It measures non-reflective non-metals straight out of the box using default settings.
The surface temperature of materials including paper, thick plastics, wood and manufactured board, painted surfaces, tarmac, bulk materials, food, pharmaceuticals and organic materials is measured accurately and easily.

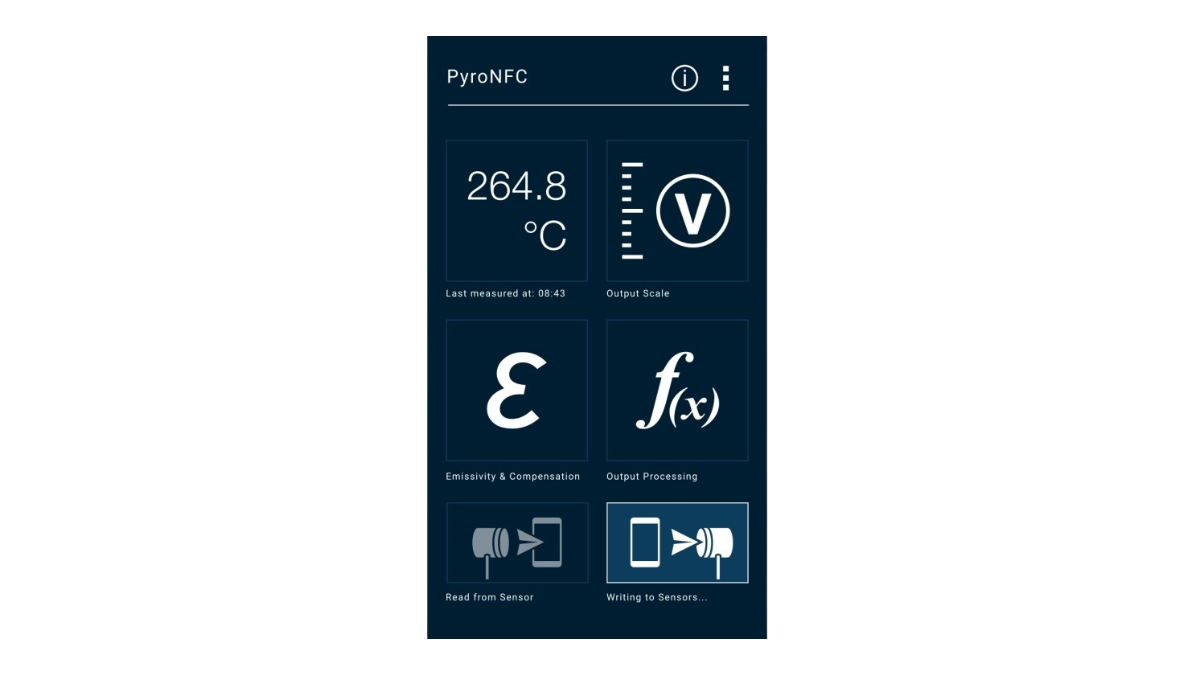

The sensor is fully configurable for emissivity setting, averaging, peak or valley hold processing, reflected energy compensation, alarm and more, via NFC (Near Field Communications) with the free PyroNFC app for Apple or Android devices.
Features
- Non-contact industrial temperature sensor
- Fully configurable via iOS / Android app
- Choice of voltage or thermocouple outputs
- Simultaneous open collector alarm output
- Measures from 0°C to 1000°C, accurately and consistently
- Extremely small, with side-entry cable: ideal for mounting in tight spaces
- Fast response time: 125 ms
- Low cost, high performance
- Operates in ambient temperatures up to 80°C without cooling
- Form factor optimised or brake testing applications, plus many others
Dowload Now

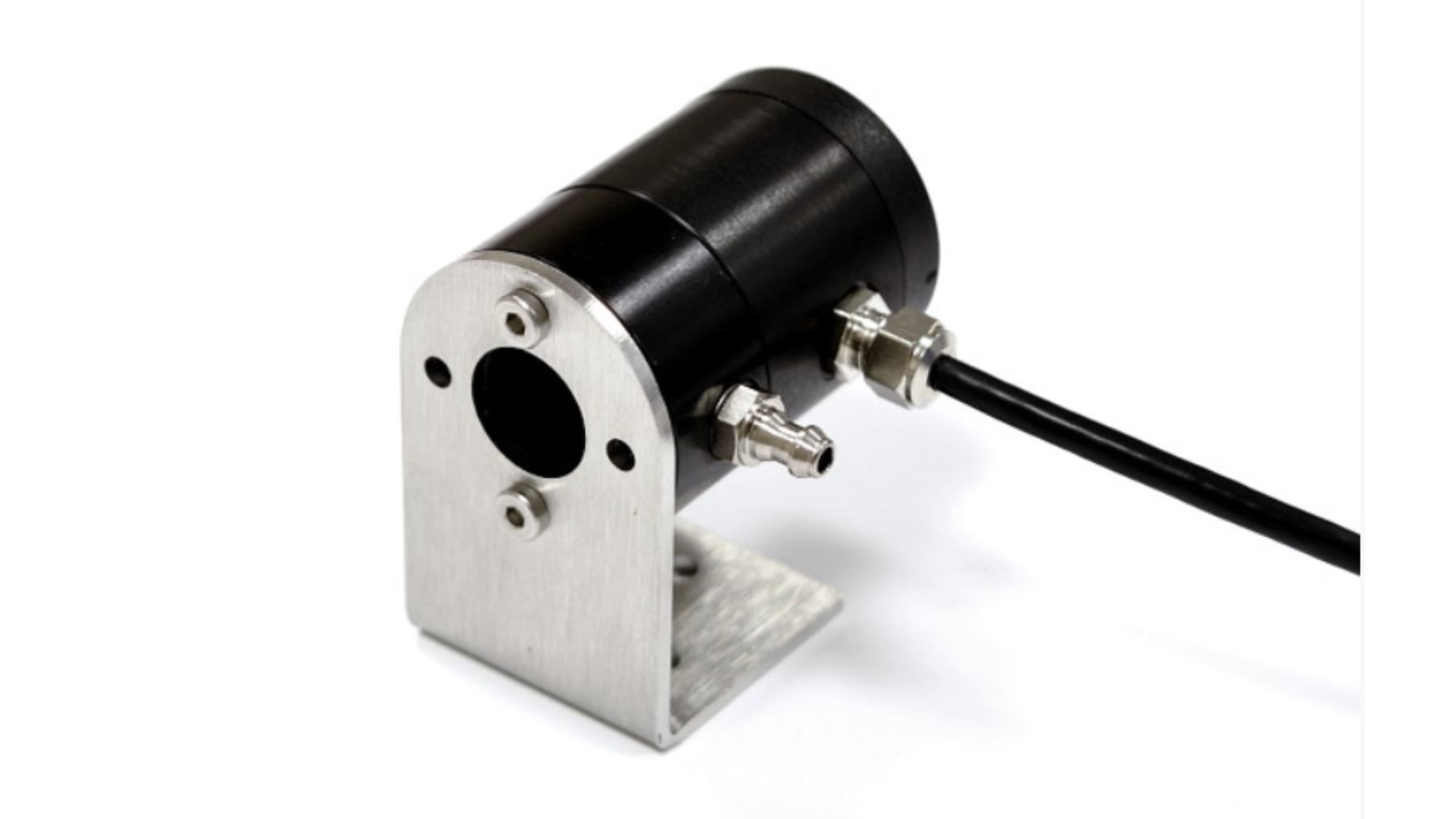

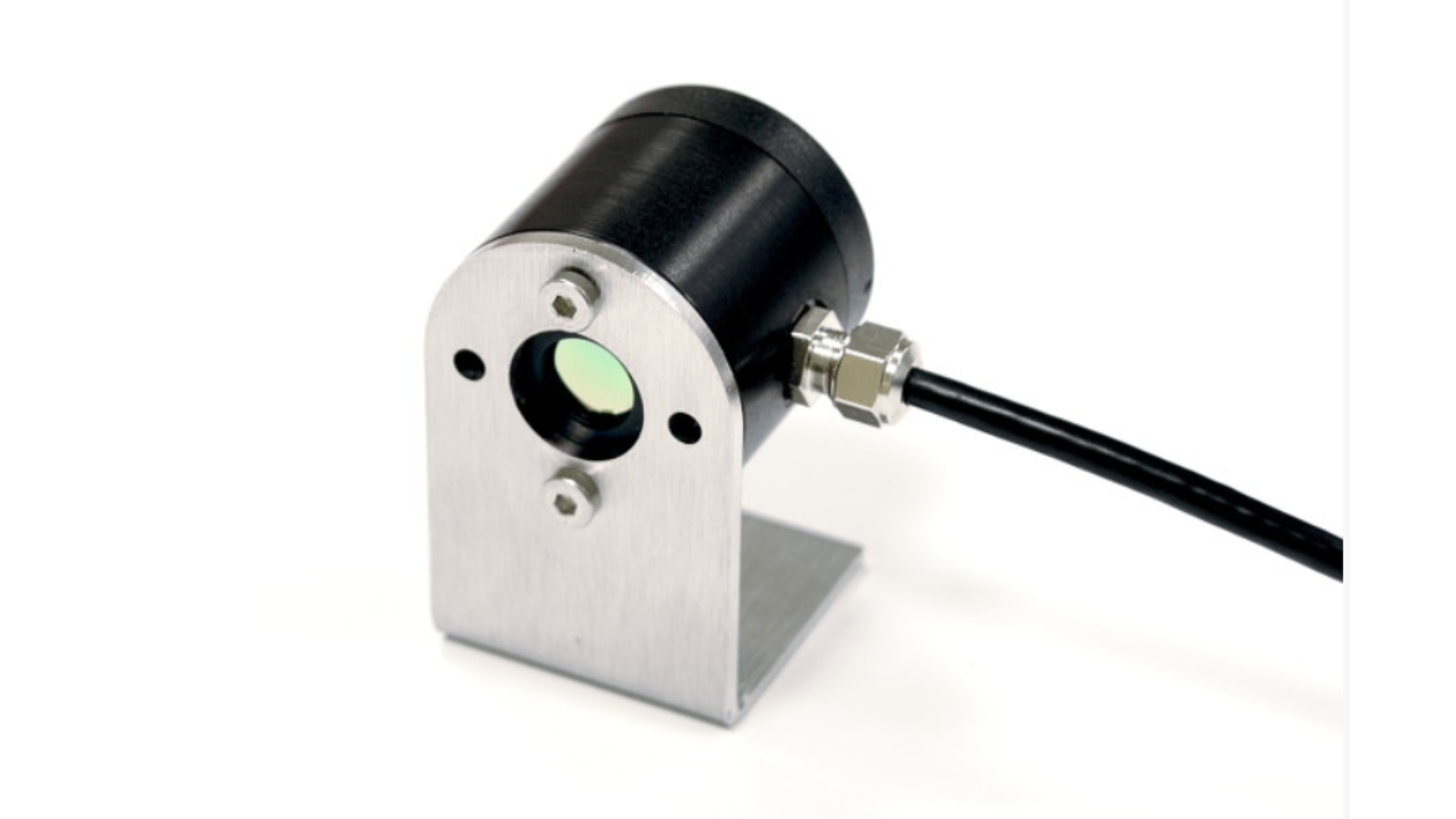

Please refer to product images or datasheet for field of view images.
-
APPLICATIONS
Brake Testing
The PyroNFC fits in restricted spaces such as between a wheel and a disc brake. It can measure the temperature of the brake disc at the rim or the hub.
Condition Monitoring
The sensor’s low cost makes it ideal for measuring many points, and it is possible for the operator to check the temperature at each location with a smartphone with no need for a separate local display
-
SPECIFICATIONS
Temperature Range 0 to 1000°C Outputs Model PN151: 0-5 V DC, 1-5 V DC or 0-10 V
DC output, linear with measured temperature,
configurable and rescalable via NFC
Model PN151K: Type K ThermocoupleField of View 15:1 (see Field of View) Accuracy ± 1.5% of reading or ± 1.5°C, whichever is greater Repeatability ± 0.5% of reading or ± 0.5°C, whichever is greater Response Time 125 ms Configuration Via iOS or Android app using NFC-equipped
device (e.g. smartphone or tablet)Emissivity Setting Adjustable via app Emissivity Setting Range 0.2 to 1.0 Max Temperature Span (Linear Output) 1000°C Min Temperature Span (Linear Output) 100°C Spectral Range 8-14 μm Max. Supply Voltage 28 V DC Min. Supply Voltage (at Sensor) 12 V DC (for 10 V output)
6 V DC (for 5 V output)Max Current Draw 7 mA Warm Up Time (PN151K) Allow 10 seconds after power-on before a reading
is observed.Environmental & Conformity
Environmental Rating IP65 Ambient Temperature Range 0°C to 80°C Relative Humidity 95% max. non-condensing Electromagnetic Compatibility (EMC) EN61326-1, EN61326-2-3 (Electrical Equipment
for Measurement, Control and Laboratory Use –
EMC Requirements – Industrial)RoHS Compliant Yes App
System Requirements Apple:
iOS 13 onwards
iPhone 7 onwardsAndroid:
Android 4.1 onwards
Devices with NFC (to check if your phone has NFC, visit www.nfcworld.com/nfc-phones-list )Configurable Parameters Temperature range
Linear voltage output type and scale
Alarm output threshold and hysteresis
Emissivity setting
Reflected temperatureTemperature Units °C / °F Signal Processing Averaging Period (0.125 to 60 seconds)
Peak / Valley Hold
Hold Period (0.125 to 120 seconds)Temperature Reading Hold NFC device against sensor for continuous in-app temperature updates (Android)
Tap temperature and hold phone against sensor to take a single temperature reading (iOS)Mechanical
Construction Black anodised aluminium and ABS Cable Length 1 metre standard (longer lengths available to order) Weight with 1 Metre Cable 65 g
Calex PyroNFC – Smartphone Configurable Infrared Temperature Sensor
$340.00 ex GST
The PyroNFC is a non-contact infrared temperature sensor with Near Field Communication (NFC) capability for applications between 0-1000 Deg C.
