OVERVIEW

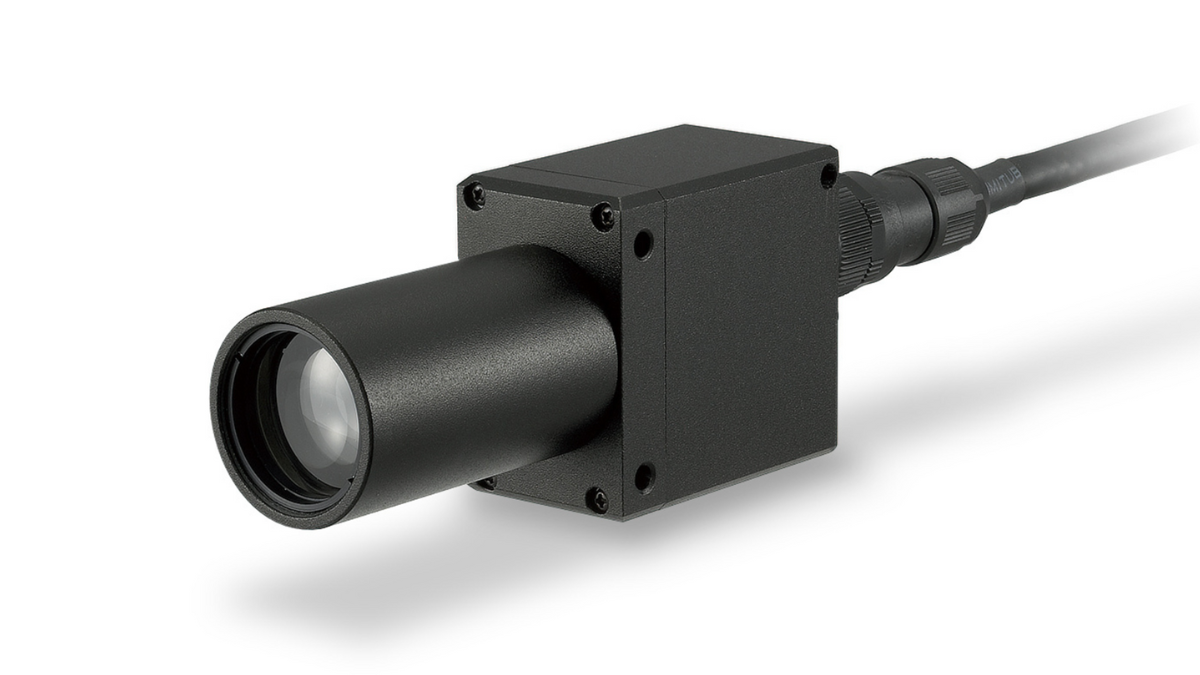

Take Accurate Readings with the PyroCube XS Infrared Sensor
The PyroCube XS is a range of infrared temperature sensors with tightly focused optics that can measure very small areas.

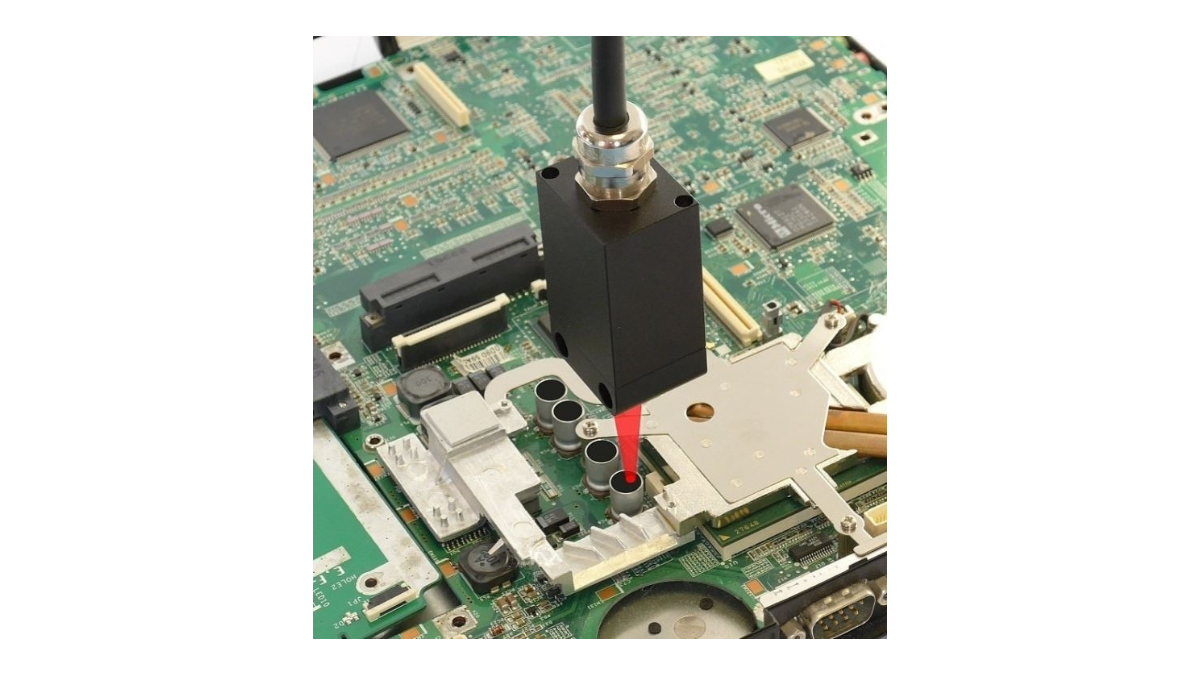

Applications include measuring individual electronic component temperatures on a circuit board, and plastic welding where the seam is very narrow.
Built-in LED sighting precisely illuminates the exact area being measured by the sensor.
Both models are available with or without a touch screen interface.
Features
- Temperature ranges from 50°C to 500°C
- Measured spot as small as 0.7 mm
- Response time as fast as 10 ms
- Continuous LED sighting shows the position and size of the measured spot while readings are being taken
- Multilingual touch screen interface (optional)
- Not designed or approved for fever detection
Please refer to product images or datasheet for field of view images
-

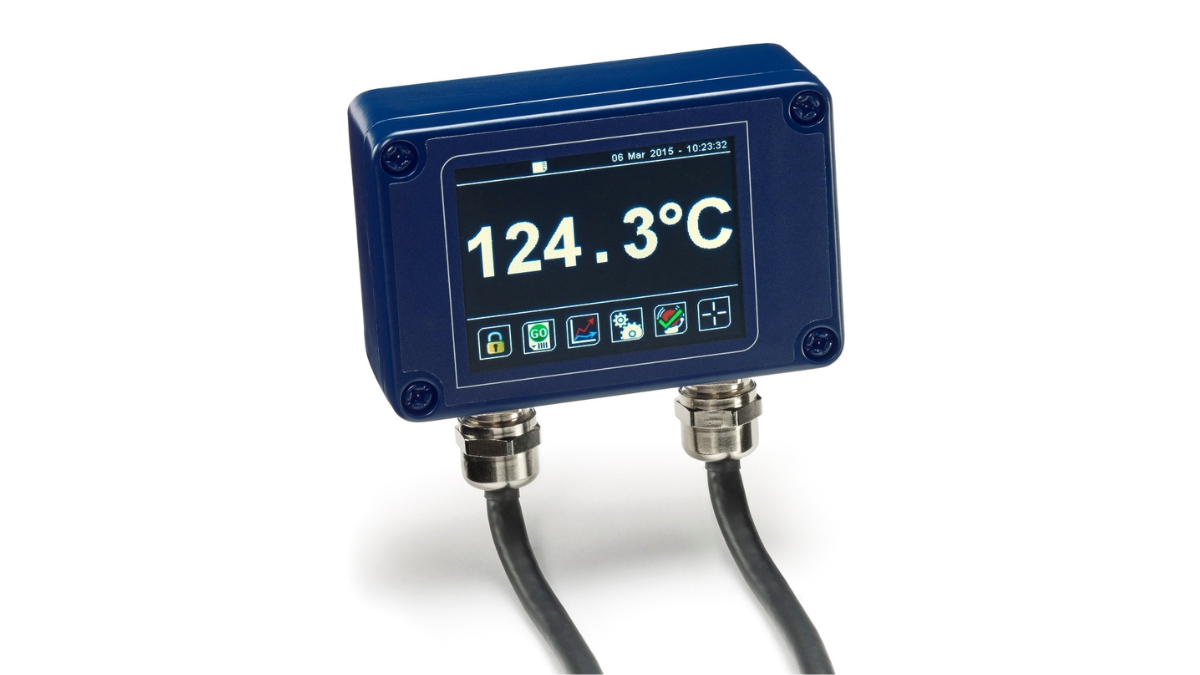

OPTIONAL DISPLAY (PM030)
Touch Screen Interface
Optional wall-mounted display, data logging, configuration and alarm unit for FibreCube sensor
- Read the temperature
The large, bright backlit temperature display is visible from a distance and turns red in an alarm condition. - Record the temperature history
See a graph of the measured temperature, and log more than a year of data to a single MicroSD Card. The data is stored in a simple text format that can be imported easily into Excel. - Configure the sensor
All the sensor’s configuration settings can be adjusted via the intuitive touch screen interface. - Trigger temperature alarms
Two alarms are individually configurable as high, low, band or error. The screen turns bright red to signal an alarm condition, and the built-in 24 V, 1 A relay outputs can be connected directly to alarm sounders and beacons. - Accurate measurements, even with reflections of hot objects
Place the sensor outside an oven or furnace and accurately measure the temperature of objects inside by using the Reflected Energy Compensation feature.
PM030 Specifications
Inputs 1 x FibreCube or PyroCube sensor (any model) Outputs Retransmitted analogue output from sensor, and
2 relays, rated 24 V DC, 1 ADisplay Format 2.83” (72 mm) resistive touch TFT, 320 x 240 pixels, backlit Touch Screen Display Format 2.83” (72 mm) resistive touch TFT, 320 x 240 pixels,
backlitStorage MicroSD Card (optional), max. 32 GB, equal to 16 years of
data at the fastest sample rate of 1 per secondData Logging Interval 1 second to 1 day (configurable) Internal Clock Batrtery 1 x BR 1225 3V (not included) Variables Logged Instantaneous target temperature, hold temperature,
alarm eventsFile Format .csv Configurable Parameters (Data Logging) Sample period
Number of samples
Scheduled startConfigurable Parameters (Alarm Logging) Log times when triggered, acknowledged, reset
Log data while triggeredConfigurable Parameters
Languages English, Chinese (simplified), Japanese Temperature units °C/°F Displayed temperature LED sighting on/of Password Date & time (for data logging time stamps) Peak hold period, decay level Averaging period Correction (gain/offset) Emissivity setting (with teach function) Reflected energy compensation (with teach function) Output type Output temperature range Polarity on error Alarm mode, levels, hysteresis - Read the temperature
-
SPECIFICATIONS
Measurement Specifications
Temperature Range XSA models: 50°C to 500°C
XSB models: 100°C to 500°CMeasurements at lower temperatures are possible with reduced stabilityAnalogue Output Scale Factory set to:
4 mA = 0°C
20 mA = 500°C
Adjustable via optional touch screen module or RS232Response Time (95%) XSA models: 10 ms
XSB models: 50 ms

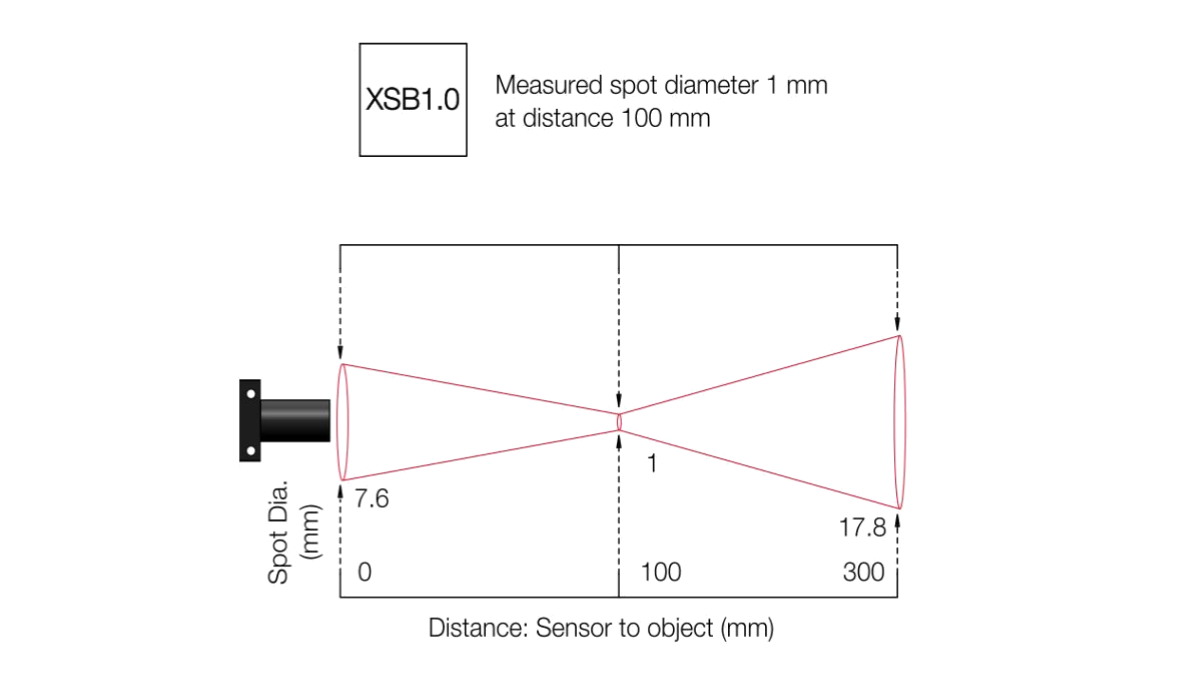

Adjustable up to 5 s via averaging functionMeasured Spot Diameter From 0.7 mm depending on model and measurement distance (see Field of View Diagrams below) Target Sighting Red LED built-in as standard on all models, shows the position and size of the measurement area. Switchable on/off. Accuracy of Measurement XSA models: ± 3°C or 1%, whichever is greater
XSB models: ± 5°CRepeatability XSA models: ± 1°C
XSB models: ± 2°CTemperature Resolution XSA models: 0.5°C
XSB models: 1.5°CEmissivity Setting Adjustable, 0.3 to 1.0, via RS232C or optional touch screen interface Electrical Specifications
Outputs 1 analogue output and 1 alarm output Analogue Output 4-20 mA (this is the default factory setting on all models) Output type can be changed via optional PM030 touch screen interface to a choice of:
0-20 mA
mV/°C
Voltage (range depends on model)Alarm Output 1 open drain alarm output, rated 27 V DC, 0.2 A Supply Voltage 5 to 27 V DC, 100 mA max Digital Communications RS232C Modbus RTU, non-isolated Output Cable Connector to Sensor XSA models: Connector built into sensor
XSB models: HardwiredMechanical Specifications
Weight (without cable) XSA models: 200 g
XSB models: 85 gEnvironmental Specifications (PyroCube Sensor)
Environmental Rating IP67 Operating Ambient Temperature 0°C to 50°C Storage Temperature -15°C to 70°C Operating Ambient Humidity 30% to 85% RH non-condensing
