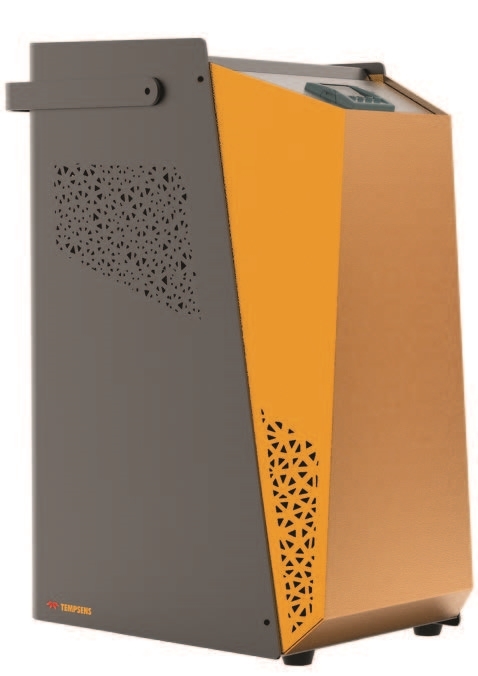

CALsys -15/110 offers a medium temperature range from -15°C to 110°C. It is a highly stable standard temperature source for calibrating RTD’s and Thermocouples.

It has peltier elements to generate stable temperature in the well. The comparison volume is a metallic block of aluminium, which has a diameter of 24mm and 120mm length.

Temperature Range: -15 to 110°C

Stability: ±0.03°C at -15°C, ±0.05°C at 0°C, ±0.07°C at 110°C

Uniformity: ±0.05°C at -15°C, ±0.07°C at 0°C, ±0.09°C at 110°C

Features:

• High Stability
• Portability
• PC Interfacing
• Simple to use and cost-effective



Temp Range	-15 to 110°C
Stability	±0.03°C at -15°C ±0.05°C at 0°C ±0.07°C at 110°C
Uniformity	±0.05°C at -15°C ±0.07°C at 0°C ±0.09°C at 110°C
Temperature Resolution	0.1°C
Time to Reach Min. Temp	25 Mins
Controlling Sensor	Precision PRT
Insert Construction	Dia 24×120 mm long, 3×6 mm hole with 115mm insertion depth
Method of control	Digital self tuned PID Controller
Computer Interface	RS – 232
Operating Temperature	20 to 25°C
Power Requirement	230 VAC, 500W
Dimensions	380(H) x 170(W) x 188(D) mm
Instrument Weight	60 Kg
