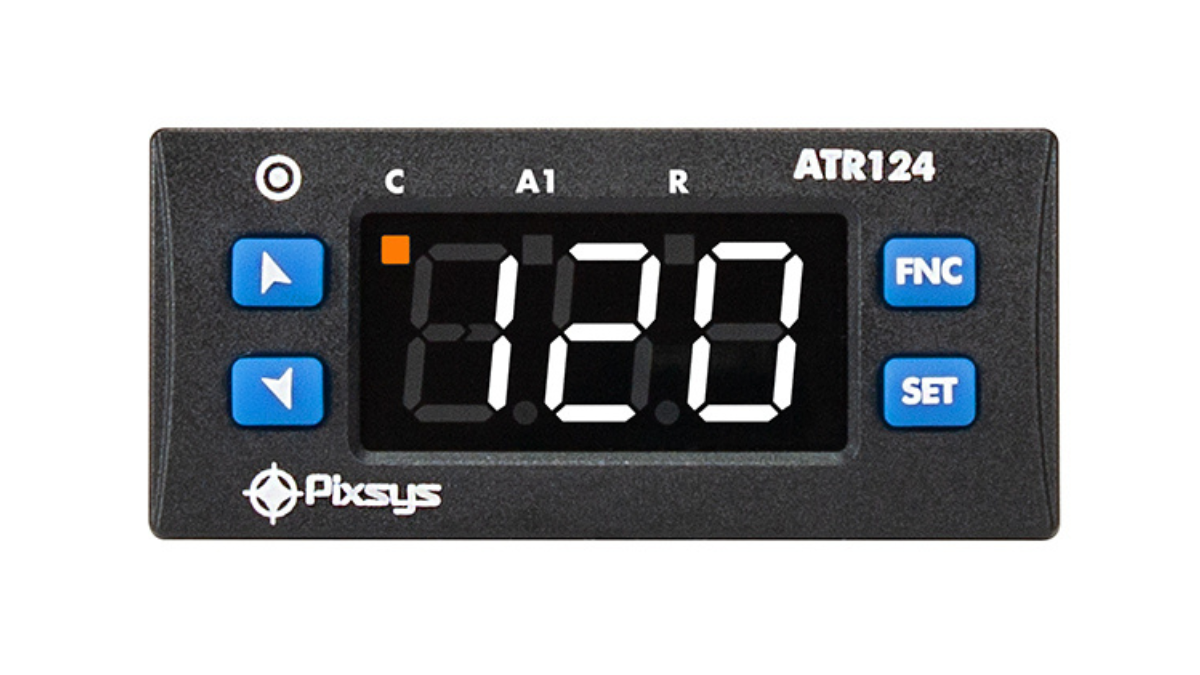

OVERVIEW
ATR124 is a compact PID controller and it is the entry-level model in the Blue Line series, of which it shares all the distinctive features starting with programming via NFC/RFID.
Analogue input is programmable for a wide range of temperature probes and mA/Volt process signals.
The digital/relay outputs are programmable either as ON/OFF control or as control with PID algorithm, but multiple alarm modes (threshold, band, deviation) are also selectable.
Configurable Control with Industrial Communication
RS485 communication serial and Modbus RTU/ Slave protocol are the network communication options.
The version with extended range 24….230V AC/DC power supply ensures great flexibility in the event of fluctuations in the power grid and optimizes stock management as a single code can cover multiple power supply types.
ATR124 can also be considered as the new generation of the ATR121 series.
-
SPECIFICATIONS

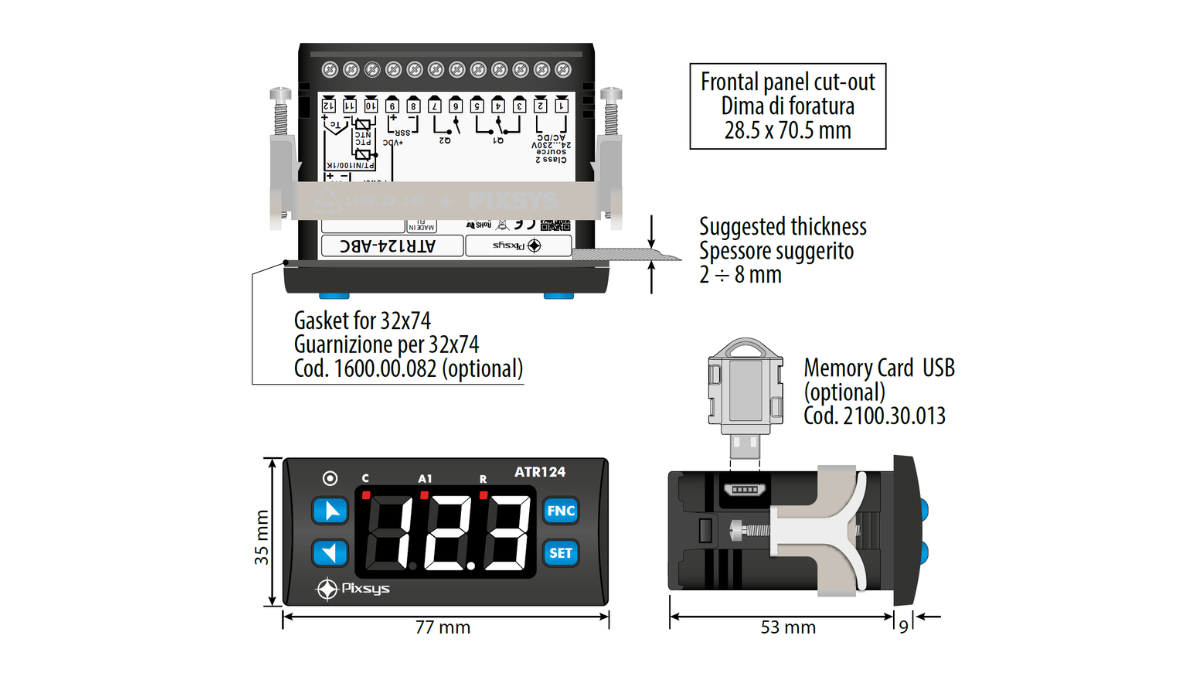

Dimensions 32 x74 x 53mm Material Box: PC UL94V2 self-extinguishing, front panel: PC UL94V2 Weight Approx. 120 g Sealing Front panel: IP65, Enclosure+ terminal blocks: IP20 Operating Conditions Temperature 0-45 °C, humidity 35..95 RH% Certifications CE, UL Hardware Features
ATR124-ABC

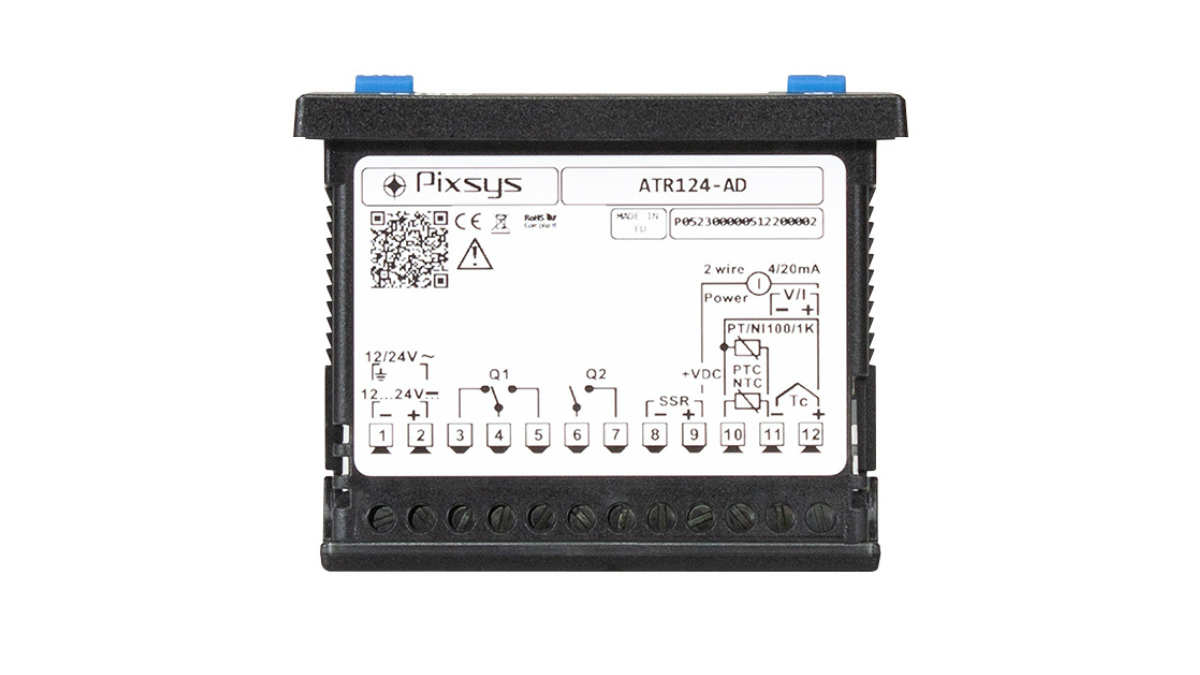

ATR124-AD
Power Supply 24…230VAC/DC ±15% 50/60 Hz 12..24 VAC/VDC ±10% 50/60 Hz Power Consumption 5 Watt/VA 4,5 Watt/VA Display Display 3 digits 0,56″ white + signalizing LEDs Analogue Inputs 1x 16bit, programmable for thermocouples K, J, S, R, T (automatic compensation of cold junction 0..50°C, precision @25°C ±0,2% F.S. or ±1 digit), Thermoresistance PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (B 3435K), Process signals 0/4..20mA (40000 points), 0..10V (54000 points), 0..40mV, 0..60mV Potentiometers F.S. 1…150Kohm (50000 points). Sampling Time Programmable up to 2,1 ms (frequency up to 470 Hz) Programmable up to 2,1 ms (frequency up to 470 Hz) Sigital Putputs 1 x 12 V, 25 mA. 1 x 12 V, 25 mA. Relays Outputs 2 x 5 A – 250 VAC 2 x 5 A – 250 VAC Serial Communication – – Software Features
Control Algorithms ON – OFF with hysteresis, P., P.I., P.I.D., P.D. time proportional Tuning Manual or automatic Alarm Mode Absolute / Threshold, Band, High / Low deviation. Alarm with optional Manual reset Dual PID Heating / Cooling dual P.I.D. Open / Close logics Motorized valves control Software Parameter Configuration Software MyPixsysLab, App MyPixsys Data Protection Lock of Command/Alarm Setpoints – Access to parameters by Password

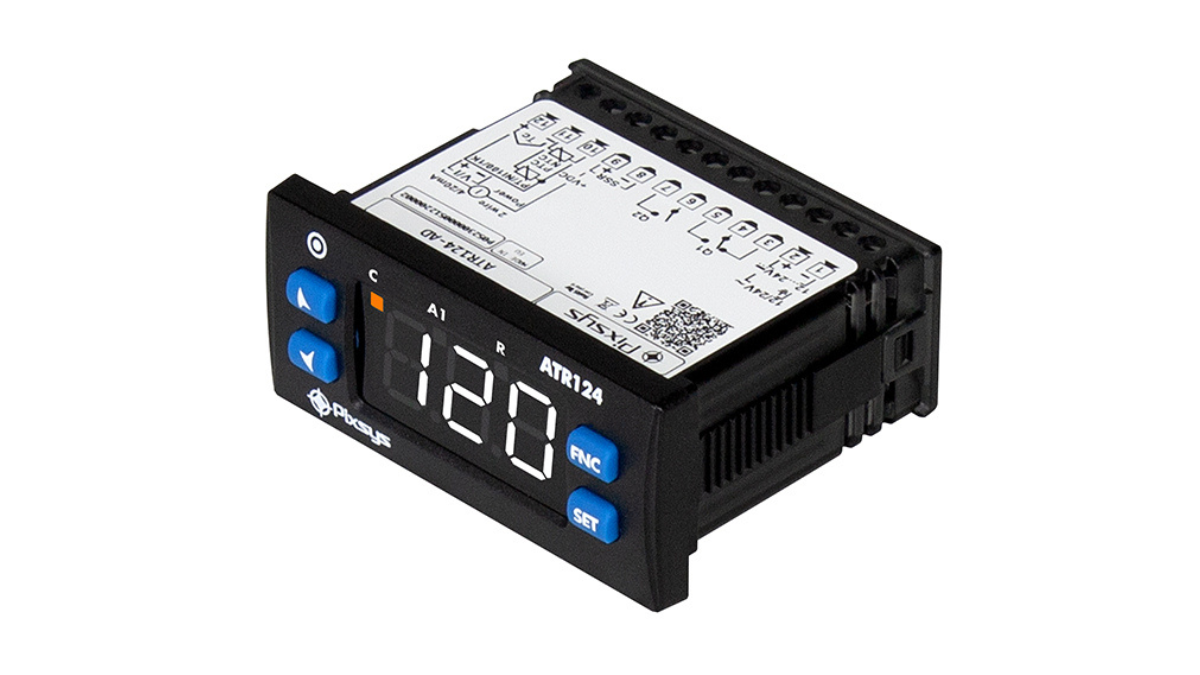

Pixsys ATR124 – PID Controller 32x74mm
$215.00 ex GST
The Pixsys ATR124 is a compact, entry-level PID temperature and process controller in the Blue Line series, offering flexible input compatibility, configurable control and alarm functions, and simple NFC/RFID programming for fast setup and commissioning.
