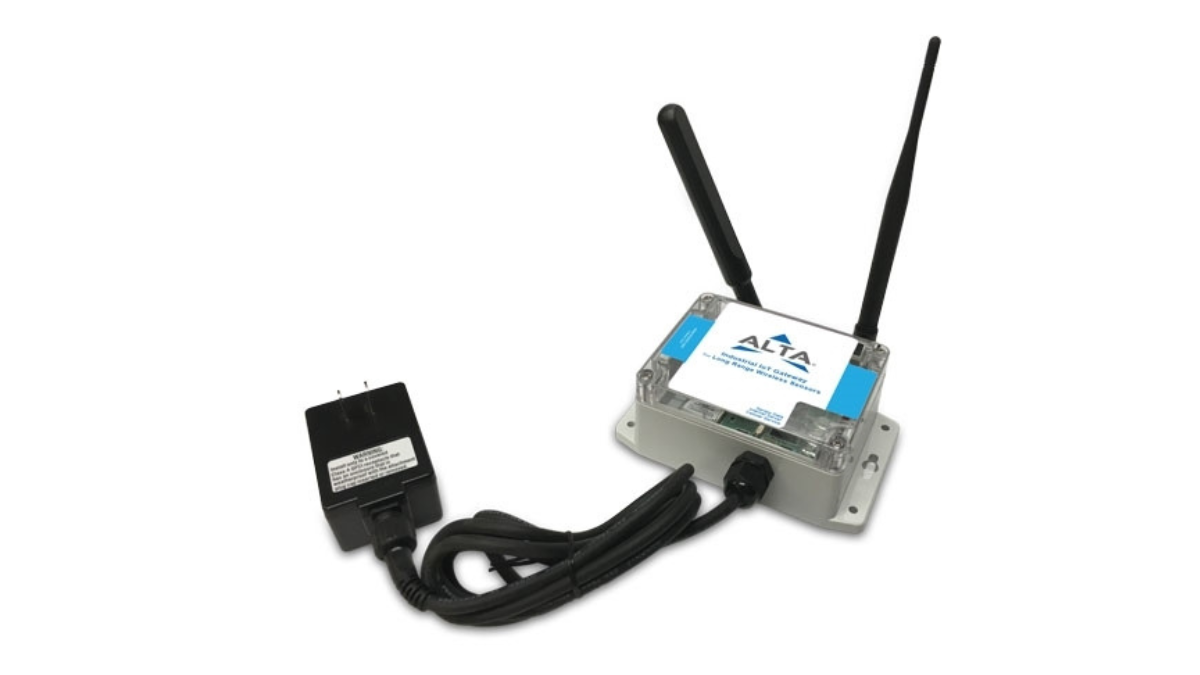

Best-in-Class Security, Connectivity, and Reliability

The ALTA® by Monnit Wireless IoT Gateway combines a 4G LTE CAT-M1/NB2 cellular engine and Ethernet platform (commercial only) with Monnit’s wireless access point network to aggregate and communicate data from Monnit ALTA Wireless Sensors. The ALTA IoT Gateway allows ALTA Sensors to operate on the world’s leading cellular networks and stay connected to the Internet.

To meet the global demand for enterprise IoT deployment, the IoT Gateway communicates with the cloud-based iMonnit® monitoring software via cellular transmission, making it ideal for remote locations or where the Internet isn’t available. The RJ-45 Ethernet jack (commercial only) allows local device configuration, diagnostics, and connectivity backup. The IoT Gateway is instrumental in sending sensor notifications via text, email, or call if user-defined conditions are met or exceeded.

Gateway features include:

• 4G LTE CAT-M1/NB2 cellular technology
• Bank-level security: Encrypt-RF® (Diffie-Hellman 256-bit Key Exchange and AES-128 CBC)
• Redundant power: AC main power with battery backup lasting up to 60 hours
• Superior scalability: Supports up to 100 ALTA Wireless Sensors
• Uninterrupted data collection: Onboard memory stores up to 32,000 sensor messages (Data stored during Internet outages is sent when connectivity is restored.)
• Broad compatibility: LTE CAT-M1/NB2 for global use in bands: 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 27, 28, 66, 71, 85
• Future-proof software: Firmware over-the-air (FOTA) upgrades included
• Unmatched wireless range: Communicates with battery-powered sensors up to one mile (line-of-sight) and 1,200 ft+ through 12+ walls (non-line-of-sight)
• Location Awareness: Comes with GPS data tracking capability and is available as an add-on service via an API.
• True plug and play, no hassles for Internet configuration setup
• No PC required for operation
• Local status LEDs with transmission and online status indicators

The IoT Gateway is available in two versions: Commercial and Industrial. The IoT Gateway and iMonnit work together to connect and configure ALTA Sensors over the Internet and make their data accessible virtually anytime, anywhere. The IoT Gateway provides the crucial link that connects ALTA Sensors to iMonnit using 4G LTE CAT-M1/NB2 (4G Long-Term Evolution Category M1/NarrowBand-Internet of Things (NB-IoT) 2) cellular technology. The gateway is equipped with a 60-hour backup battery and will continue to communicate with iMonnit via cellular transmission in the event of a power outage.

Additionally, the IoT Gateway comes with an RJ-45 Ethernet jack (commercial version only) for local device configuration. However, it’s ideal for applications without a wired Internet connection or where infrastructure is dedicated to other resources.

The IoT Gateway includes a GNSS location chipset supporting GPS, GLONASS, BeiDou, Galileo, and QZSS satellites. With the proper gateway subscription enabled, gateway location data can be collected, viewed, and distributed to additional software via an application programming interface (API). Location data functionality is only available when the cellular technologies are enabled.

Applications

• Remote Location and Asset Monitoring
• Shipping and Transportation
• Agricultural Monitoring
• Vacant Property Management
• Vacation Home Property Management
• Construction Site Monitoring
• Data Center Monitoring

Power Interrupt Switch

The ALTA® Industrial loT Gateway comes with a power interrupt control operated by a magnetic reed switch. The power interrupt control disconnects both the main power supply and battery backup. Use this feature if you need to force a reset of the gateway without opening the waterproof seal. When contact is made, the gateway status lights will turn off, indicating successful power interruption.

Note: Power is only interrupted while the magnet is on the touchpoint. Once the magnet is removed, power is returned.



Manage Your Monnit Sensors with iMonnit Cloud-based Software

Monnit’s Sensor Monitoring Software, iMonnit, stands as a cutting-edge cloud-based platform and central hub tailored for the seamless management of Monnit sensors. With a focus on data security, all information is safeguarded on dedicated servers running Microsoft SQL Server. This intuitive online user interface serves as a command centre for arranging, monitoring, and modifying device settings to suit individual requirements.

OneTemp provides complimentary activation and setup services for new iMonnit accounts, while a free mobile app empowers users to maintain control at all times. Whether opting for the basic version or upgrading to iMonnit Premiere, users can unlock the full spectrum of features that enrich the Monnit experience.

Click here to explore the software options >>



Cellular
Cellular Technology	LTE CAT-M1 / NB2 module for global use in bands 1,2,3,4,5,8,12,13,18,19,20,25,26,27,28,66,71,85
SIM Card Compatibility	Micro-SIM (3FF) 15 mm x 12 mm x 0.76 mm
Cellular Antenna Type	Connector: SMA / Gain: 4.0 dBi
GNSS Antenna Type	Internal Mount Active (28db) Ceramic Patch
GNSS Satellites Supported	GPS, GLONASS, BeiDou, Galileo, and QZSS
Power
Power Interrupt	Magnetic Reed Switch (see page 3 for details)
Input Power	90-240 VAC @ 0.2A max (15W), 5.9VDC @ 2500mA max
Battery Backup	Battery Type: 2900mAh Rechargeable Lithium Polymer
	Battery Duration: Up to 60 hours
	Battery Cycle Life: 500 times
	Battery Safety: IEC62133

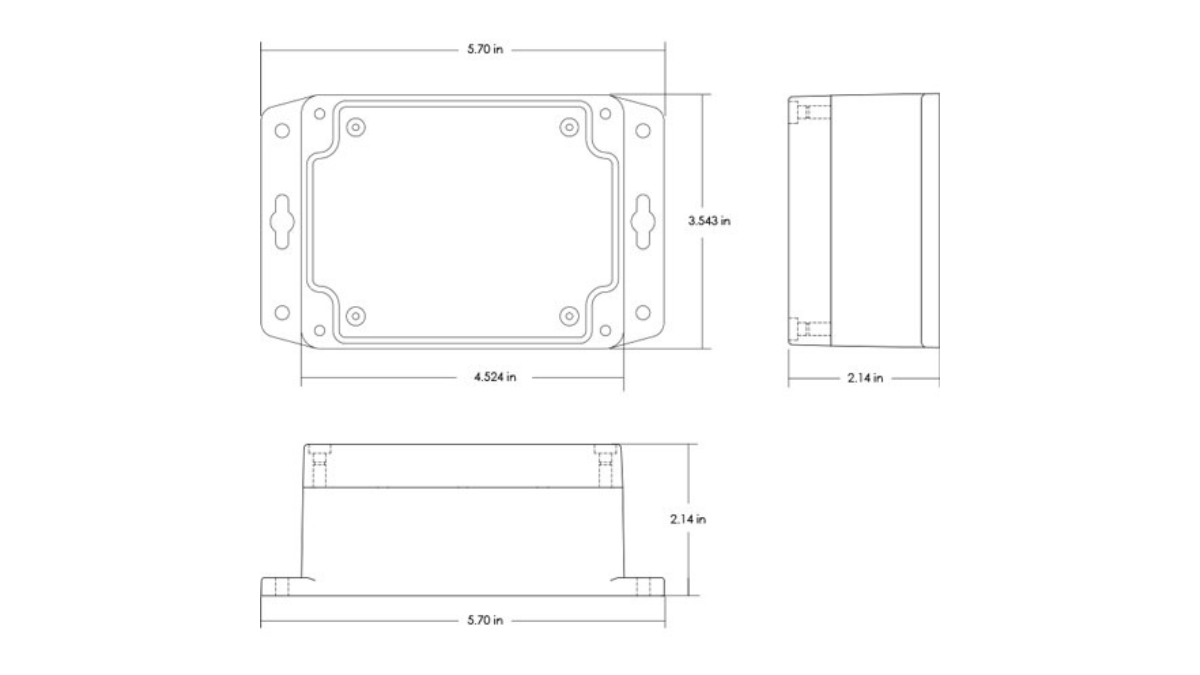

Mechanical
LEDs	Sensor Data, Server Status, Cellular Status
Device Memory	Up to 32,000 sensor messages (Sensor messages will be stored in the event of an Internet outage and transferred when the connection is restored.)
Enclosure	Polycarbonate, NEMA 1, 2, 4, 4x, 12 and 13 rated, sealed, and weatherproof
Weight	16.9 ounces
Environmental
Operating Temperature	-20 to 55°C (-4 to 131°F)
Charging Temperature	0 to 45°C (32 to 113°F)
Storage Temperature	-20 to +60°C (-4 to 140°F)
ALTA Wireless
Transmit Power (EIRP)	50 mW (900 MHz), 25 mW (868 MHz), 10 mW (433 MHz)
Antenna Type	Connector: SMA Gain: 4.0 dBi
Wireless Range	1,200+ ft. non-line-of-sight (1)
Security	Encrypt-RF® (256-bit key exchange and AES-128 CBC)
Certifications	Safety: IEC 60950-1 and IEC 62368-1; EMC: IEC 55024, IEC 55032, IEC 301489-1, -3, -12, -52, FCC 47 CFR Part 15, subpart B and ICES – 001 Issue 6; RF: 900 MHz product includes model FCC ID: ZTL-G2SC1 / IC: 9794A-G2SC1 and FCCID: XPY2AGQN4NNN / IC: 8595A-2AGQN4NNN; 868 MHz product includes Module G2SC1 (IEC 300 220-1, -2); 433 MHz product includes Module G2SC2 (IEC 300 220-1,-2)

(1) Actual range may vary depending on the installation environment.
